YOKOGAWA WT310EH User Manual

8-9
IM WT310E-01EN
Other Features
1
2
3
4
5
6
7
8
App
Index

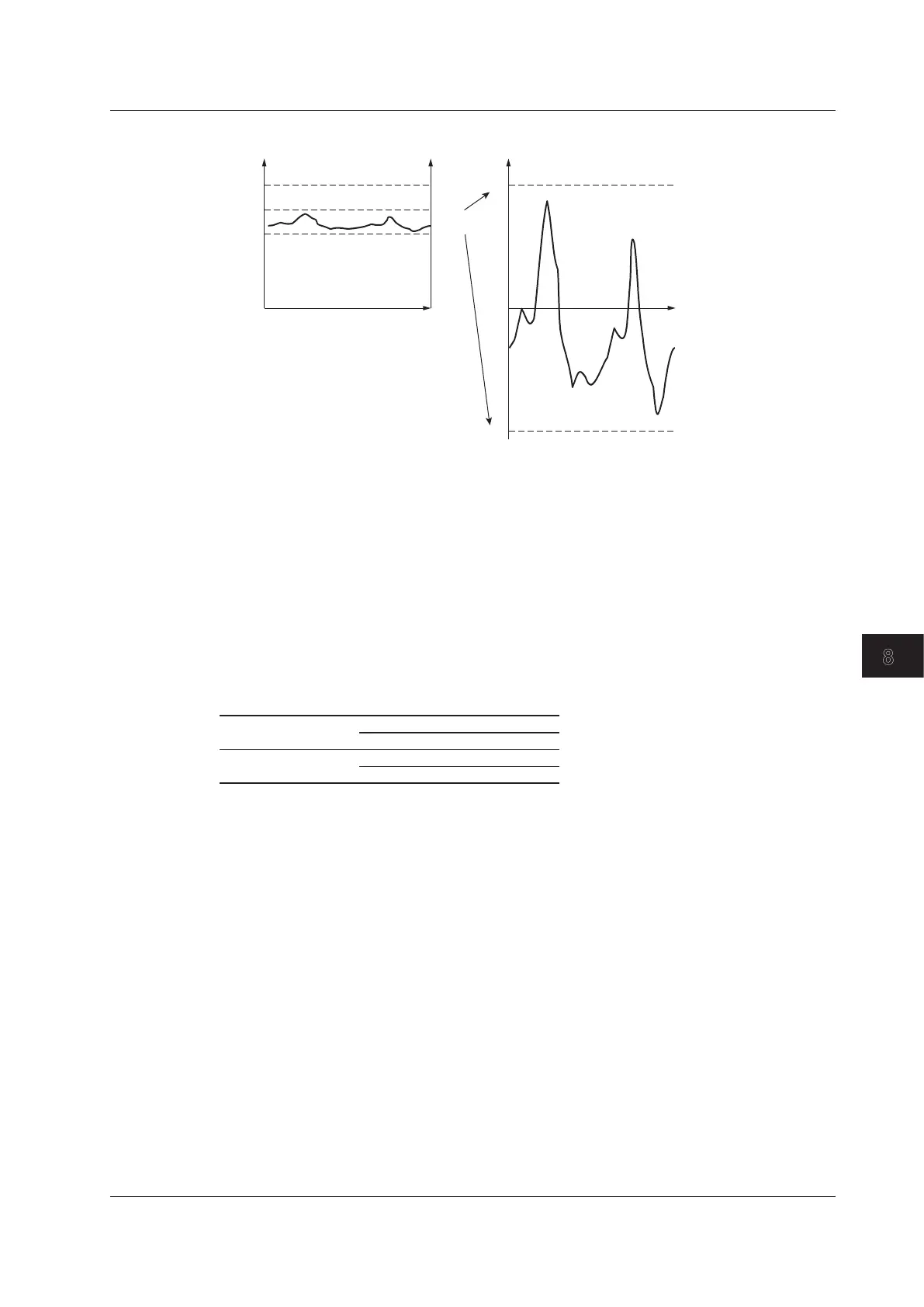

1.0 A
0.8 A
0.6 A
5.0 V
4.0 V
3.0 V
5.0 V
Time
Time
Measured current D/A output D/A output
Fixed range mode Manual range mode
(DA zoom)
–5.0 V
Compare (Comparator Mode)
 Bycomparingwiththecomparatorlimits,thisinstrumentoutputs+5V,0V,or–5V.Toreplacethe
output with a relay contact output, like the WT210/WT230 comparator function, provide your own
relay and relay driving circuit.
• Belowthelowerlimit: –5Voutput
• Greaterthanorequaltothelowerlimitandlessthantheupperlimit: 0Voutput
• Greaterthanorequaltotheupperlimit: +5Voutput
Maximum and Minimum Values in Manual Range Mode and Comparison Upper and
Lower Limits in Comparator Mode
You can select a value between -9.999E+12 and 9.999E+12.
The default settings are shown below.
ManualRangeMode MaximumValue 100.0
MinimumValue -100.0
Comparator Mode Comparison Upper Limit 100.0
Comparison Lower Limit -100.0
8.4 Configuring D/A Output Items (Option)
