8-10
IM WT310E-01EN

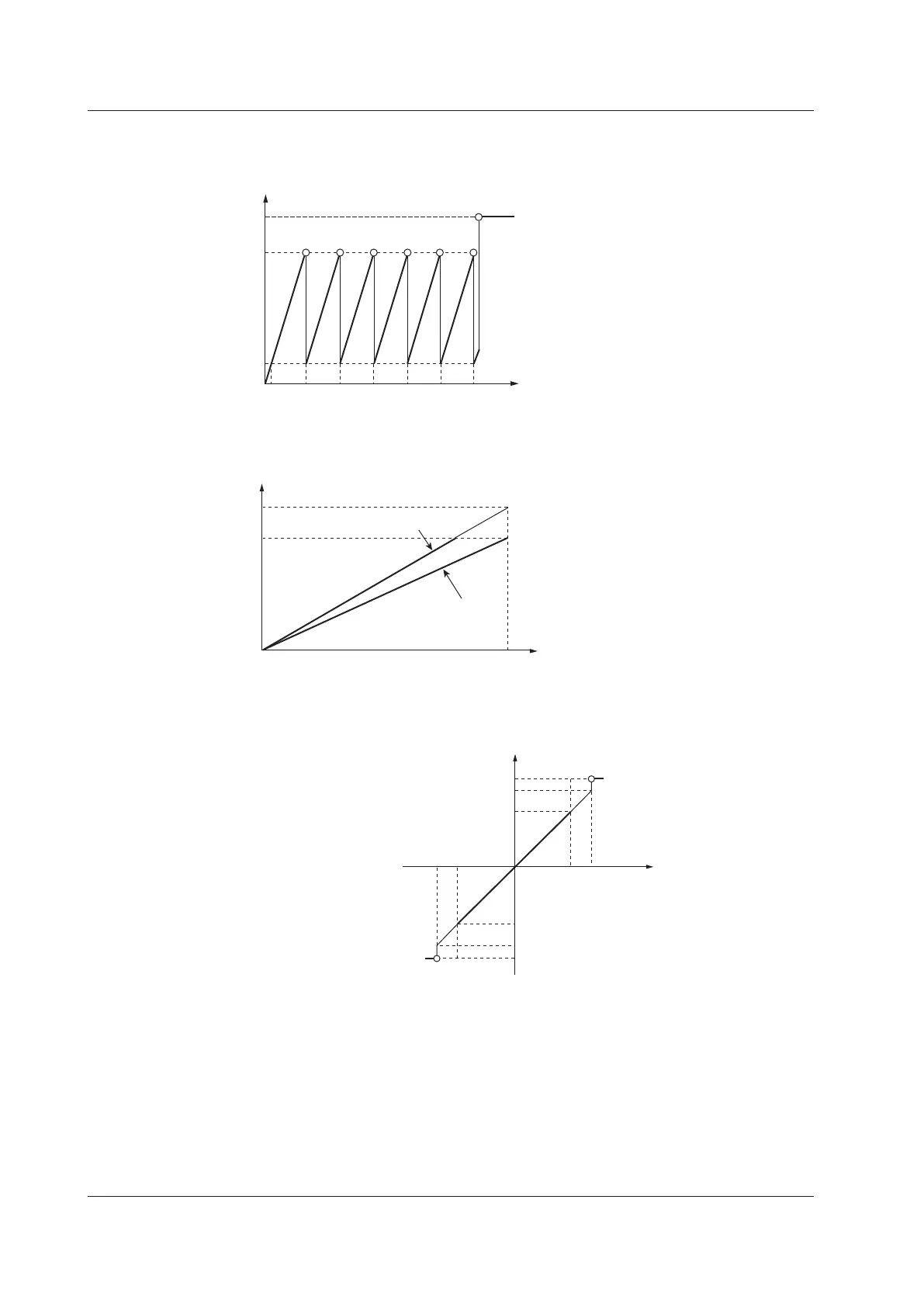

Relationship between Output Items and D/A Output Voltage
Frequency
D/A output
Approx. 7.5 V
5.0 V
0.5 V
Displayed value
10 Hz
0.1 Hz
1 Hz
100 Hz
1 kHz
10 kHz
100 kHz
Integrated Value
D/A output
Approx. 7.0 V
5.0 V
0
Integration time
t
0
When 140% of the rated input
is applied
When the rated input is applied
t
0
:Ratedintegrationtime
Other Items
140%
100%
0%
–100%
–140%
D/A output
Approx. 7.5 V
Approx. 7.0 V
5.0 V
0
–5.0V
–100
100
–140
140
Approx. –7.0 V
Approx. –7.5 V
Displayed value (%)
Output
Approx. 7.0 V
5.0 V
0 V
–5.0 V
Approx. - 7.0 V
Displayed Value
• Therangebetween+5to+7Vand–5to–7VisnotoutputforλandΦ.Whenanerroroccurs,theoutput
isapproximately±7.5V.
• Fortheefficiencymathfunction,+5Vrepresents100%.
• ForUpkandIpk,±5Vrepresentstheapplicationof3timestheratedrangevalue(6timestheratedrange
value when the crest factor is 6 or 6A).
• Whentheselectedoutputfunctionis“----”orthereisnonumericaldata,theoutputis0V.
8.4 Configuring D/A Output Items (Option)
