YOKOGAWA WT310EH User Manual

App-8
IM WT310E-01EN

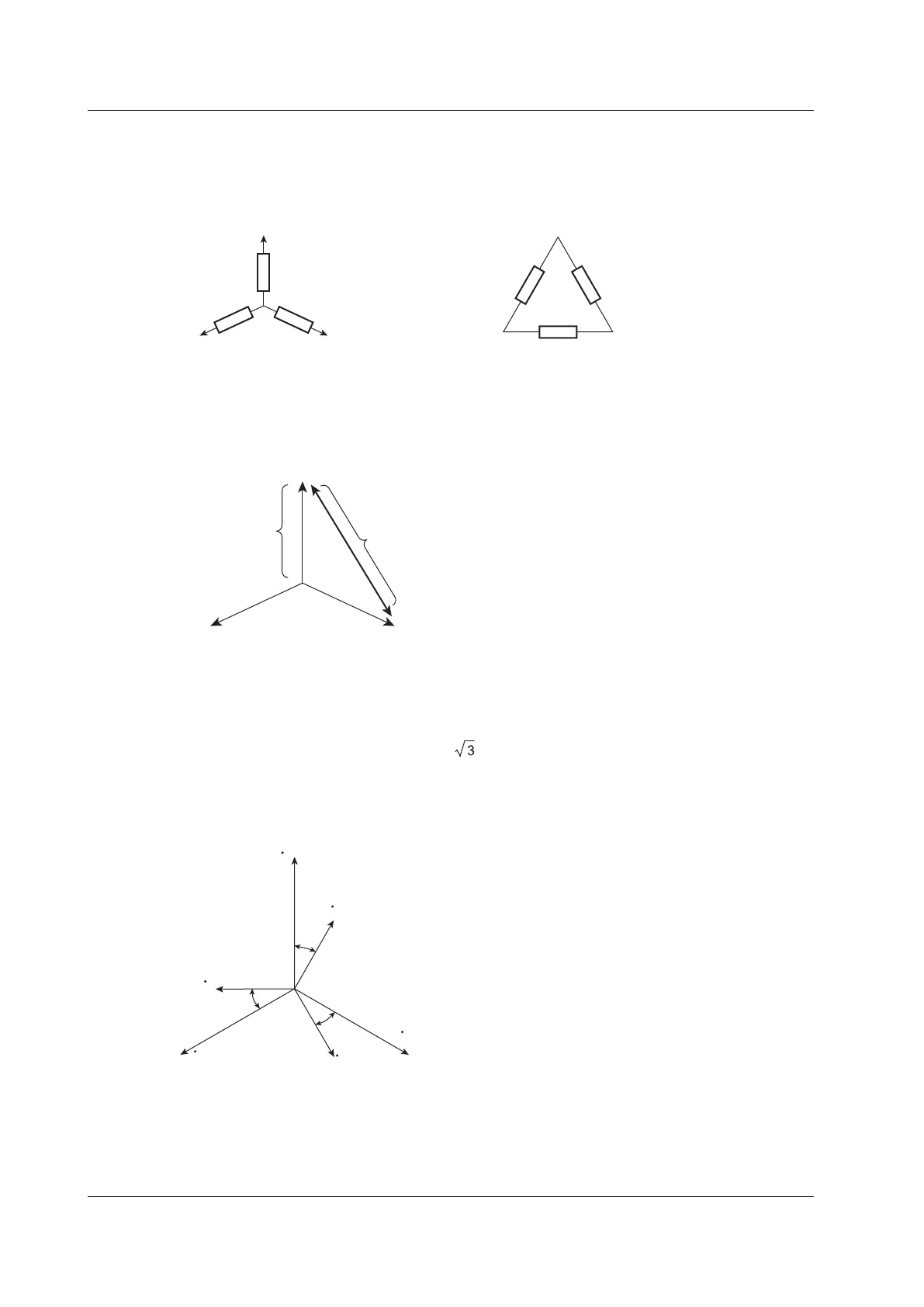

Three-Phase AC Wiring
Generally three-phase AC power lines are connected in star wiring configurations or delta wiring
configurations.
R
S
T
R
S
T
Star wiring Delta wiring
Vector Display of Three-Phase Alternating Current
In typical three-phase AC power, the voltage of each phase is offset by 120°. The figure below
expresses this offset using vectors. The voltage of each phase is called the phase voltage, and the
voltage between each phase is called the line voltage.
R
S
T
Line voltage
Phase voltage
If a power supply or load is connected in a delta wiring configuration and no neutral line is present,
the phase voltage cannot be measured. In this case, the line voltage is measured. Sometimes the line
voltage is also measured when measuring three-phase AC power using two single-phase wattmeters
(the two-wattmeter method). If the magnitude of each phase voltage is equal and each phase is offset
by 120°, the magnitude of the line voltage is
times the magnitude of the phase voltage, and the line
voltage phase is offset by 30°.
Belowisavectorrepresentationoftherelationshipbetweenthephasevoltagesandlinecurrentsofa
three-phaseACvoltagewhenthecurrentlagsthevoltagebyΦ°.
Φ
U1
I1
Φ
Φ
I3
I2
U3
U2
Appendix 2 Power Basics (Power, harmonics, and AC RLC circuits)
