JOHNSON CONTROLS
119
SECTION 6 – OPERATION
FORM 155.32-ICOM1.EN.GB
ISSUE DATE: 10/13/2017
6
Alarm Mode
When the controller receives an alarm signal, the Up-
per Display flashes slowly. The information in the dis-
play alternates between the normal information and the
alarm code.
In addition, the Multi-Status Display lights ripple
through the left and right lights. See an example of
what the single loop controller in alarm mode might
look like on the next page.

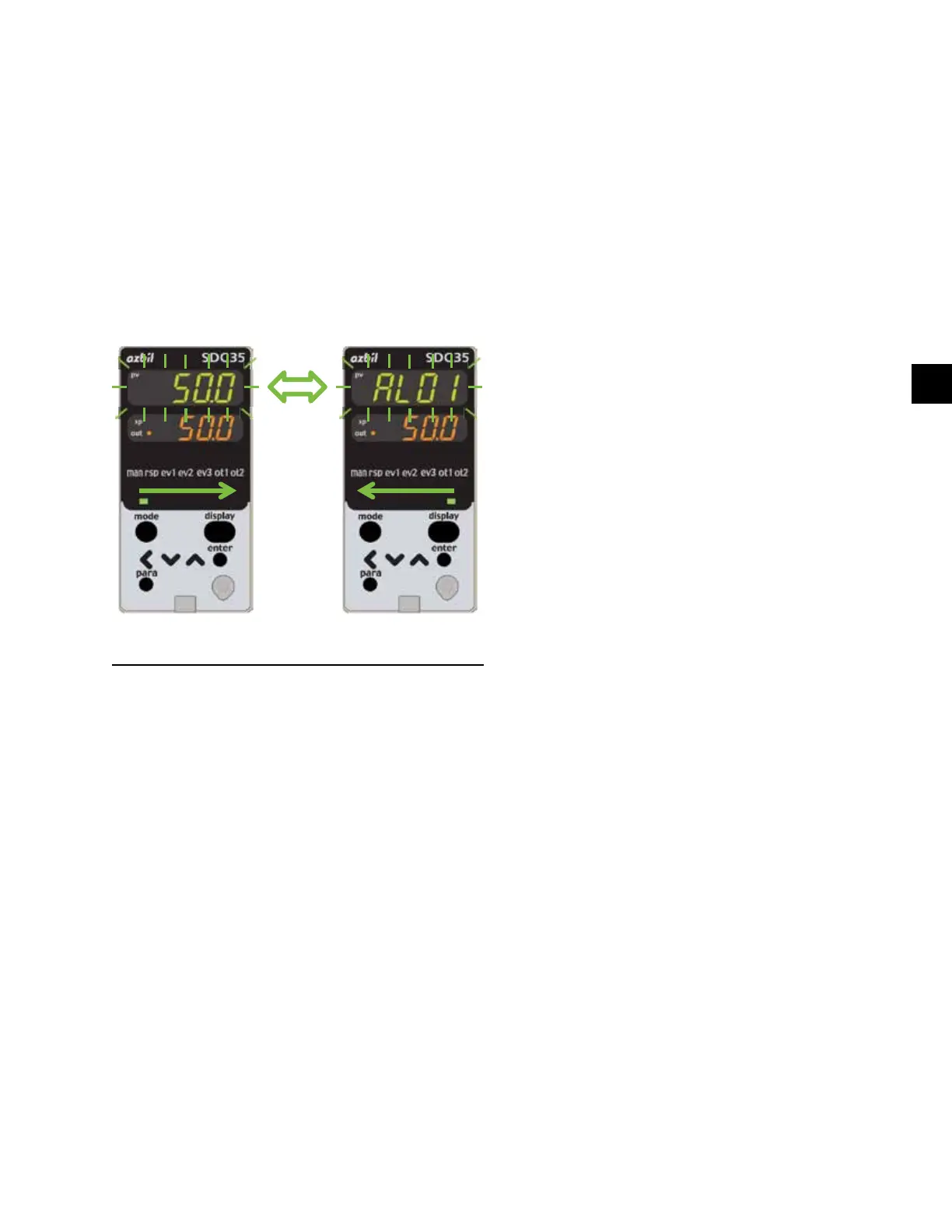

FIGURE 46 - ALARM MODE
LDxxxxx
