Operational Display
Air Damper Control
When the controller is being used to manage the Air
Damper, press the Display key to view the following:
• Upper Display: Air damper opening (shown as a
%) or Fb (feedback value is indicated in the lower
display)
• Lower Display: Control target of air damper
(shown as a %), capacity control output to the air
damper (shown as a %) or the Feedback signal via
the potentiometer (shown as a %)

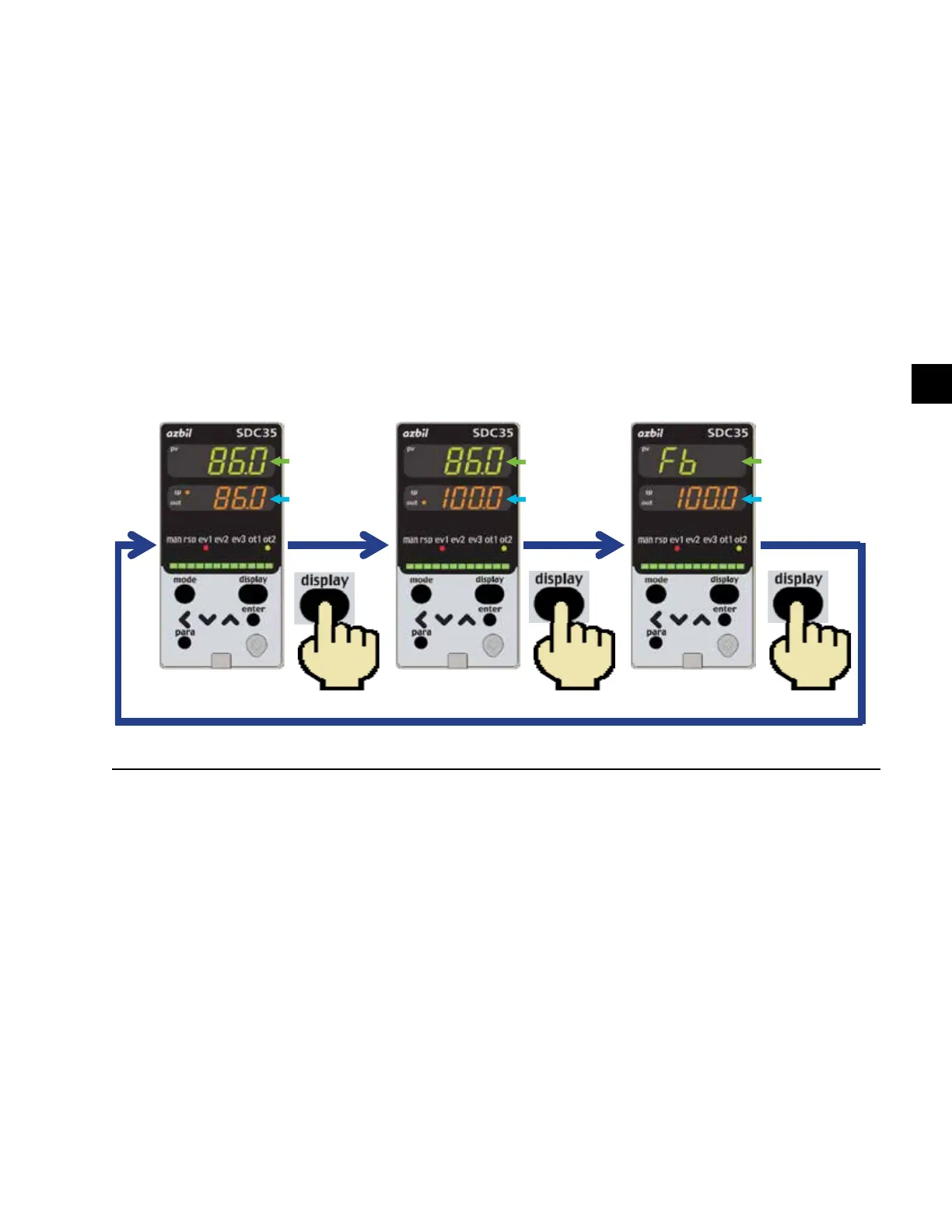

LD20938
Air damper
opening (%)
Control target
of air damper (%)
Air damper
opening (%)
Control output
to air damper (%)
Fb: Feedback
indication mode
Feedback signal
via potentiometer (%
)
FIGURE 47 - AIR DAMPER CONTROL
