York YLUA0078 - FIGURE 16 - ELEMENTARY DIAGRAM

To Next Page

To Previous Page

JOHNSON CONTROLS

FORM 150.73-NM1

ISSUE DATE: 09/04/2020

SECTION 5 – TECHNICAL DATA

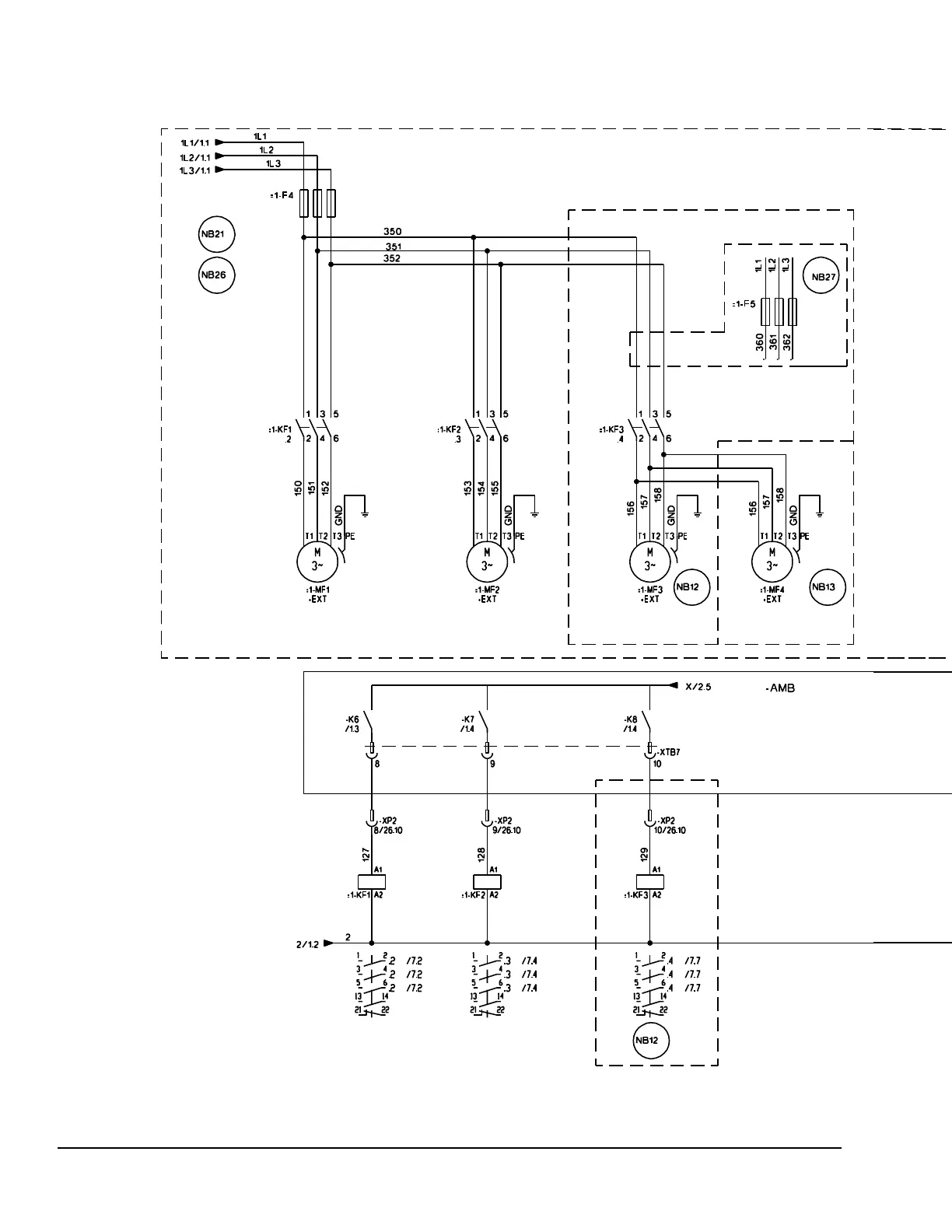

FIGURE 16 - ELEMENTARY DIAGRAM

LD13992A

035-21583-103 REV. B
