JOHNSON CONTROLS
89
SECTION 5 – TECHNICAL DATA
FORM 150.73-NM1
ISSUE DATE: 09/04/2020
55
CP
MOUNT
TYPE
DIMENSION DATA (INCHES)
W D L B C T H
CP1 3 5/8 7-3/4 6-1/2 4-3/4 1/2 5-5/8
CP2 3 5/8 10-1/2 9-1/4 7-3/4 9/16 6
MODEL NUMBER COLOR CODE
RATED CAPACITY (FOR UNITS WITH ALL LOAD POINTS
LESS THAN 1785 LB (810 KG)
(LB) (KG)
CP-1D-510 BLACK Up thru 434 Up thru 197
CP-1D-900 DARK GREEN 435 thru 765 198 thru 347
CP-1D-1200 GRAY 766 thru 1020 348 thru 463
CP-1D-1360 WHITE 1021 thru 1156 464 thru 524
CP-1D-1785N GRAY/RED 1157 thru 1785 525 thru 810
MODEL NUMBER COLOR CODE
RATED CAPACITY (FOR UNITS WITH ANY LOAD POINT
ABOVE 1518 LB (689 KG)
(LB) (KG)
C2P-1D-1350 DARK PURPLE Up thru 1148 Up to 521
C2P-1D-1350 DARK PURPLE Up thru 1148 Up to 521
C2P-1D-1800 DARK GREEN 1149 thru 1530 522 - 694
C2P-1D-2400 GRAY 1531 thru 2040 695 - 925
C2P-1D-2400 GRAY 1531 thru 2040 695 - 925
C2P-1D-2720 WHITE 2041 thru 2312 926 - 1049
C2P-1D-3570N GRAY/RED 2313 thru 3570 1050 - 1619
LD13759A
ISOLATOR INFORMATION

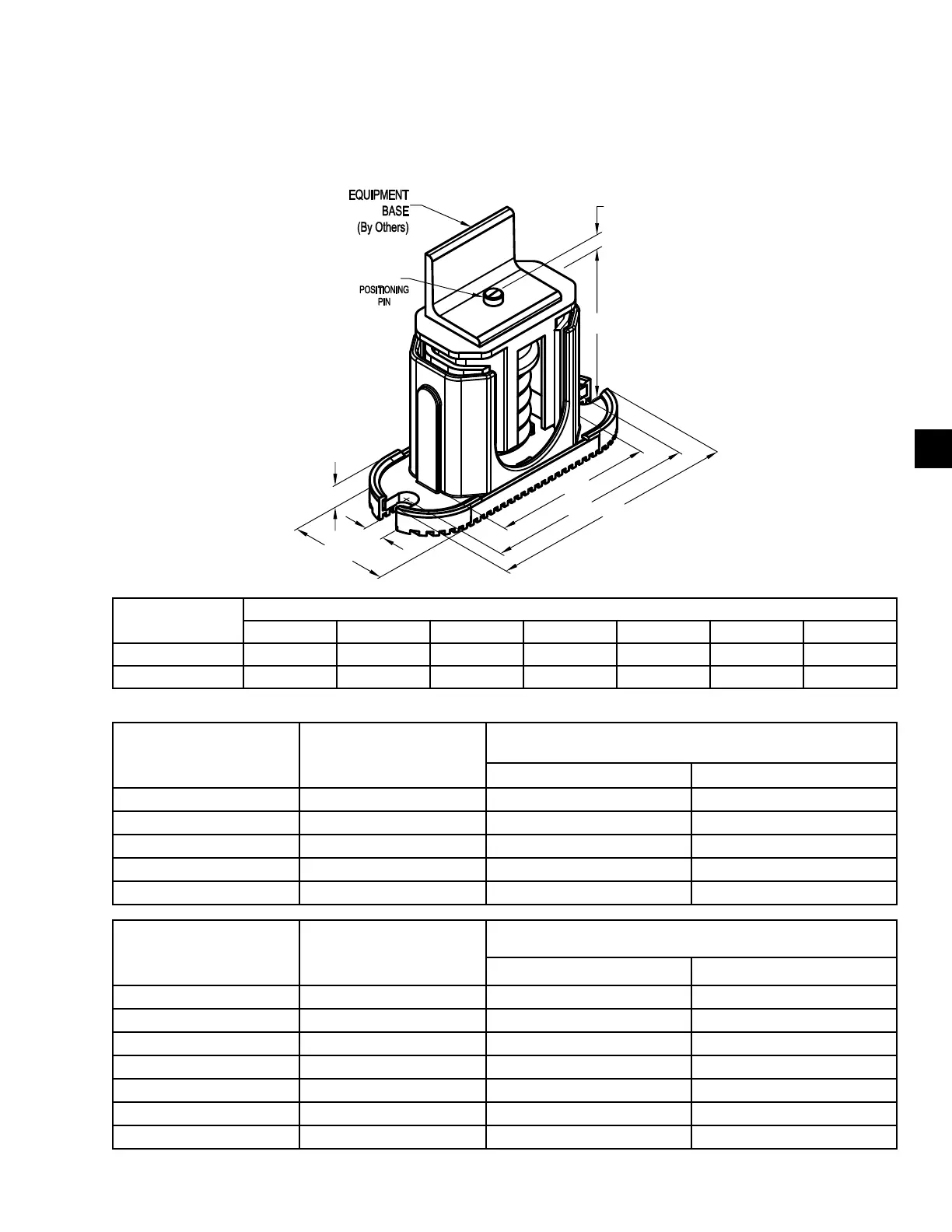

One Inch Deflection Spring Isolator Cross-Reference
W"
D"
L"
B"
C"
H"
T"
Ø1/2"
5/8"
To Next Page
