York YLUA0078 - CLEARANCES

JOHNSON CONTROLS
87
SECTION 5 – TECHNICAL DATA
FORM 150.73-NM1
ISSUE DATE: 09/04/2020
55
CLEARANCES
NOTES:
1. No obstructions allowed above the unit.
2. Only one adjacent wall may be higher than the unit.
3. Adjacent units should be 10 ft (3 m) apart.
LD13243

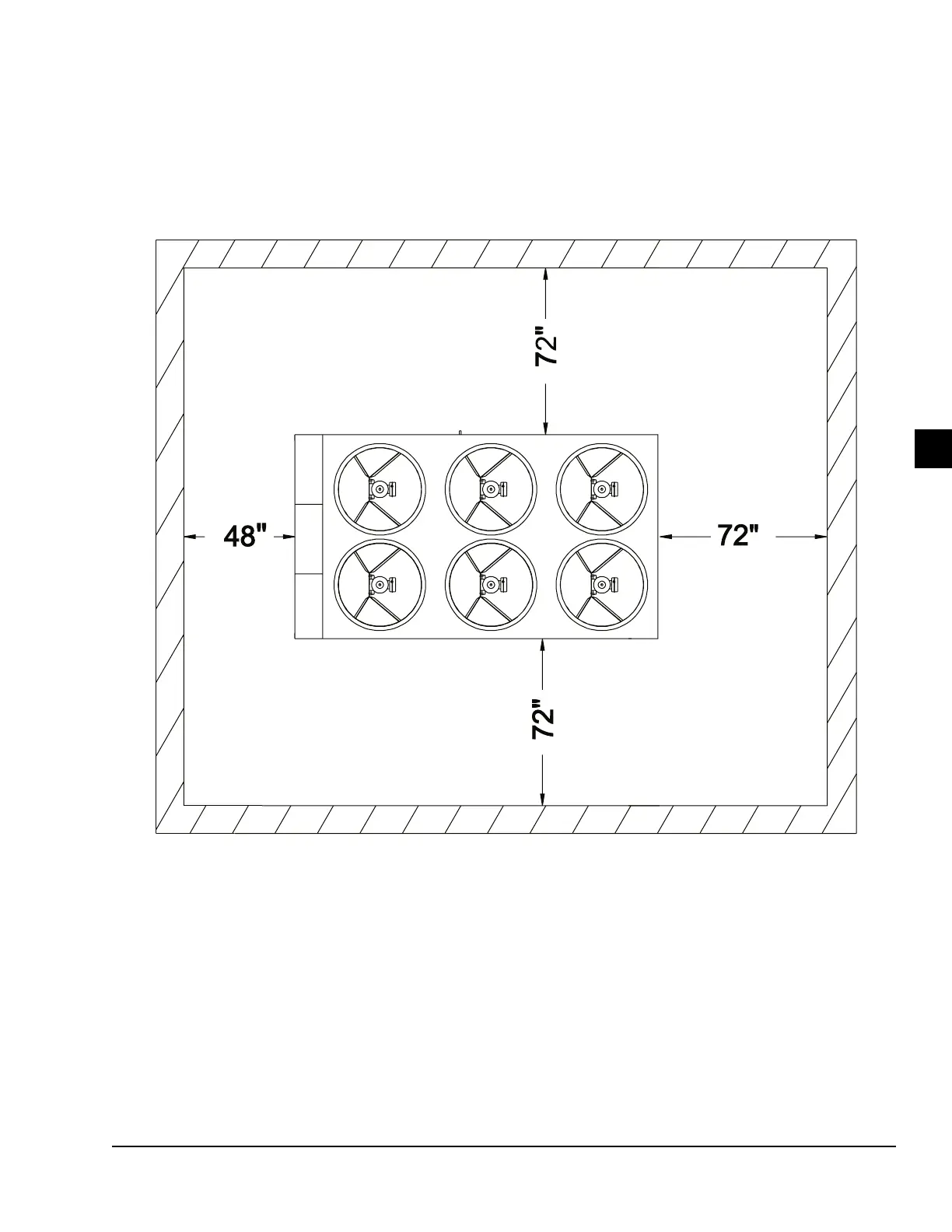

FIGURE 17 - UNIT CLEARANCES – ALL MODELS
(1.3 m)
(2 m)
(2 m)
(2 m)
