Zanotti Zero Series - Technical Data; Dimensions and Mounting Measurements

INSTALLATION MANUAL
Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
12
rev.01
2 TECHNICAL DATA
2.1 Dimensions and mounting measurements
2.1.1 Z200
2.1.1.1 Nose installation
Dimensions in mm [in].

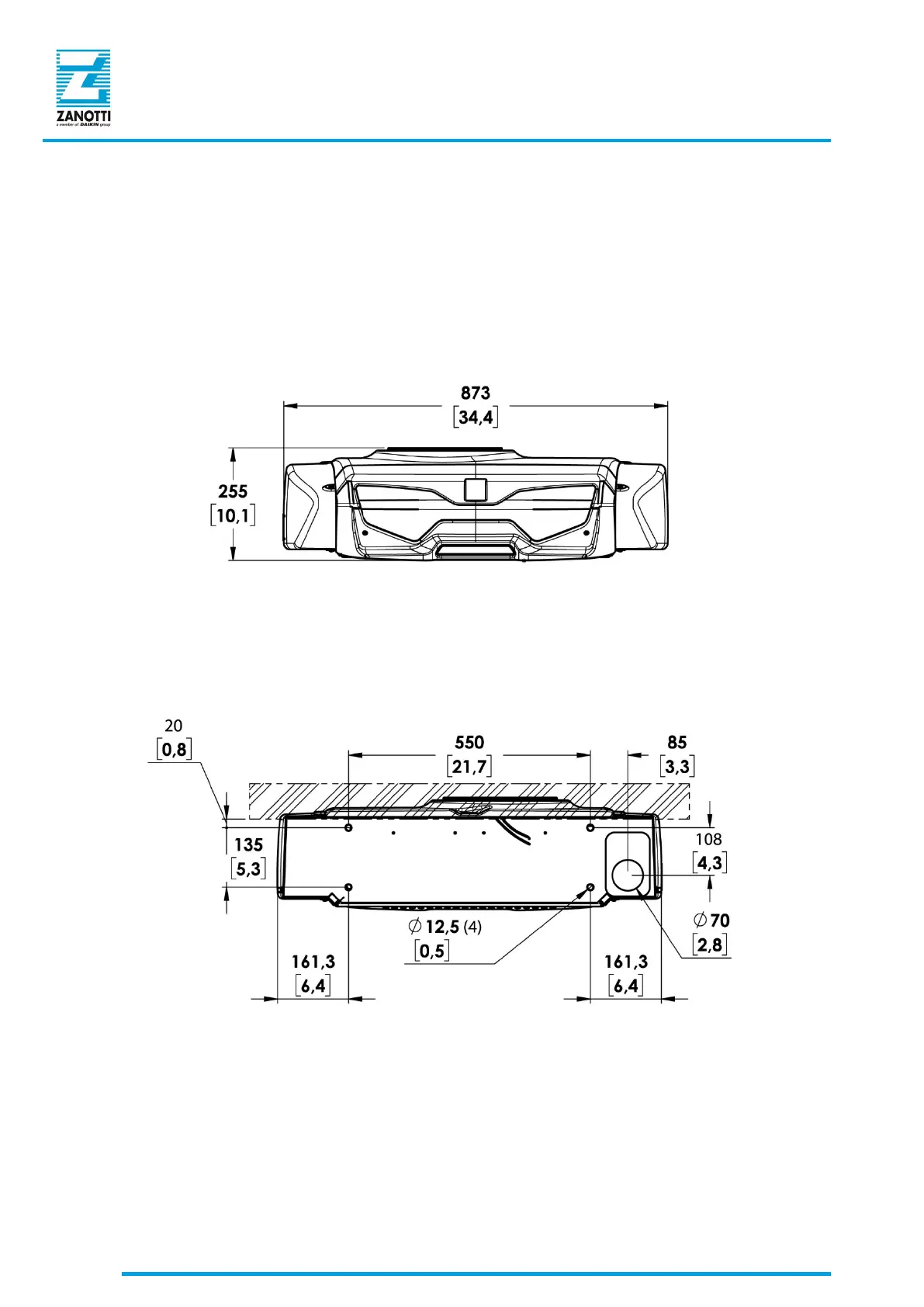

Figure 6 - Front view of the condenser unit
Figure 7 - Rear view of the condenser unit
