INSTALLATION MANUAL
Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
30
rev.01
2.1.4.2 Roof installation
Dimensions in mm [in].

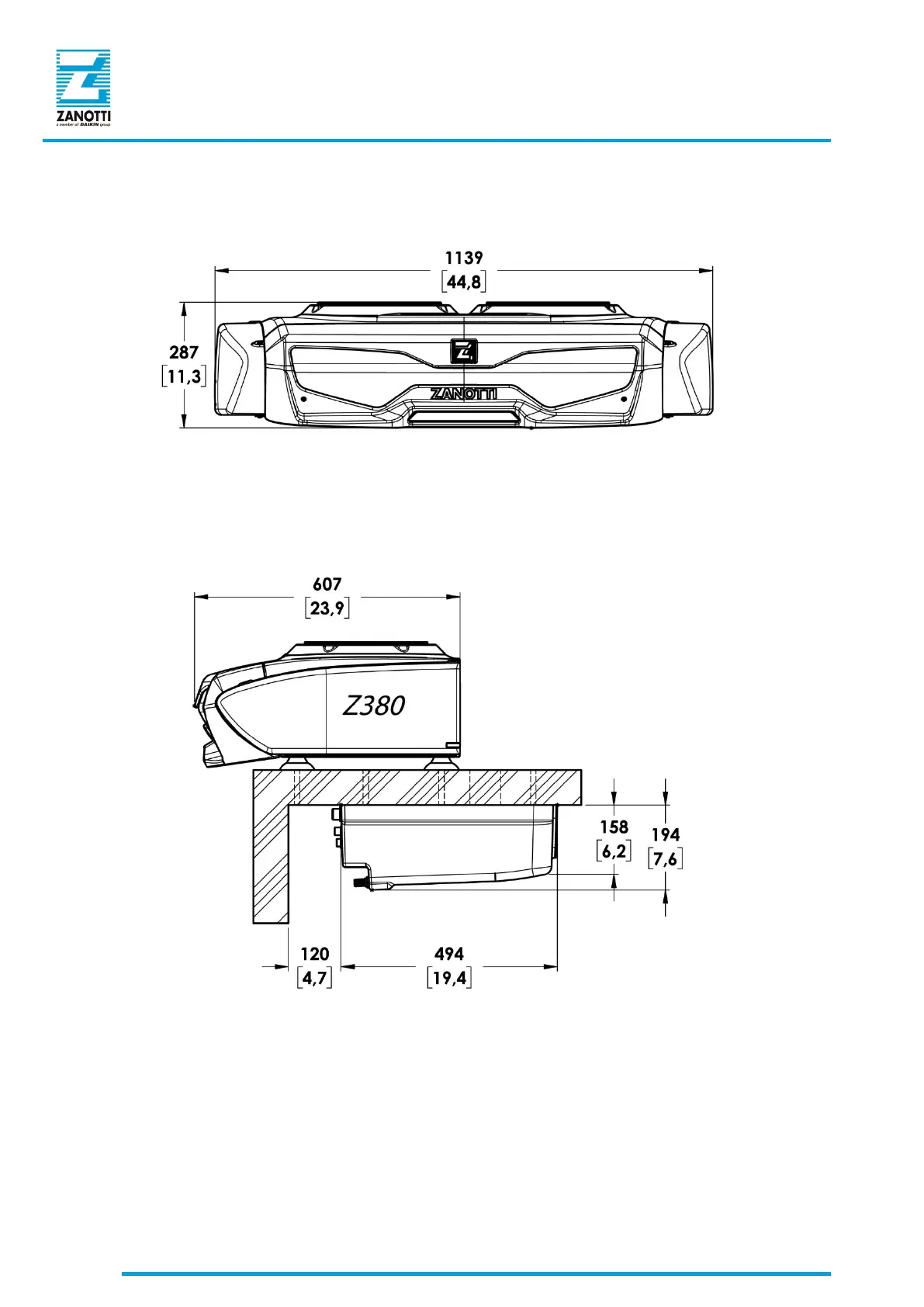

Figure 34 - Front view of the condenser unit
Figure 35 - Side view of the condenser unit + evaporator
