Zanotti Zero Series - Sub-Key Fuse Installation Kit

INSTALLATION MANUAL
Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
56
rev.01

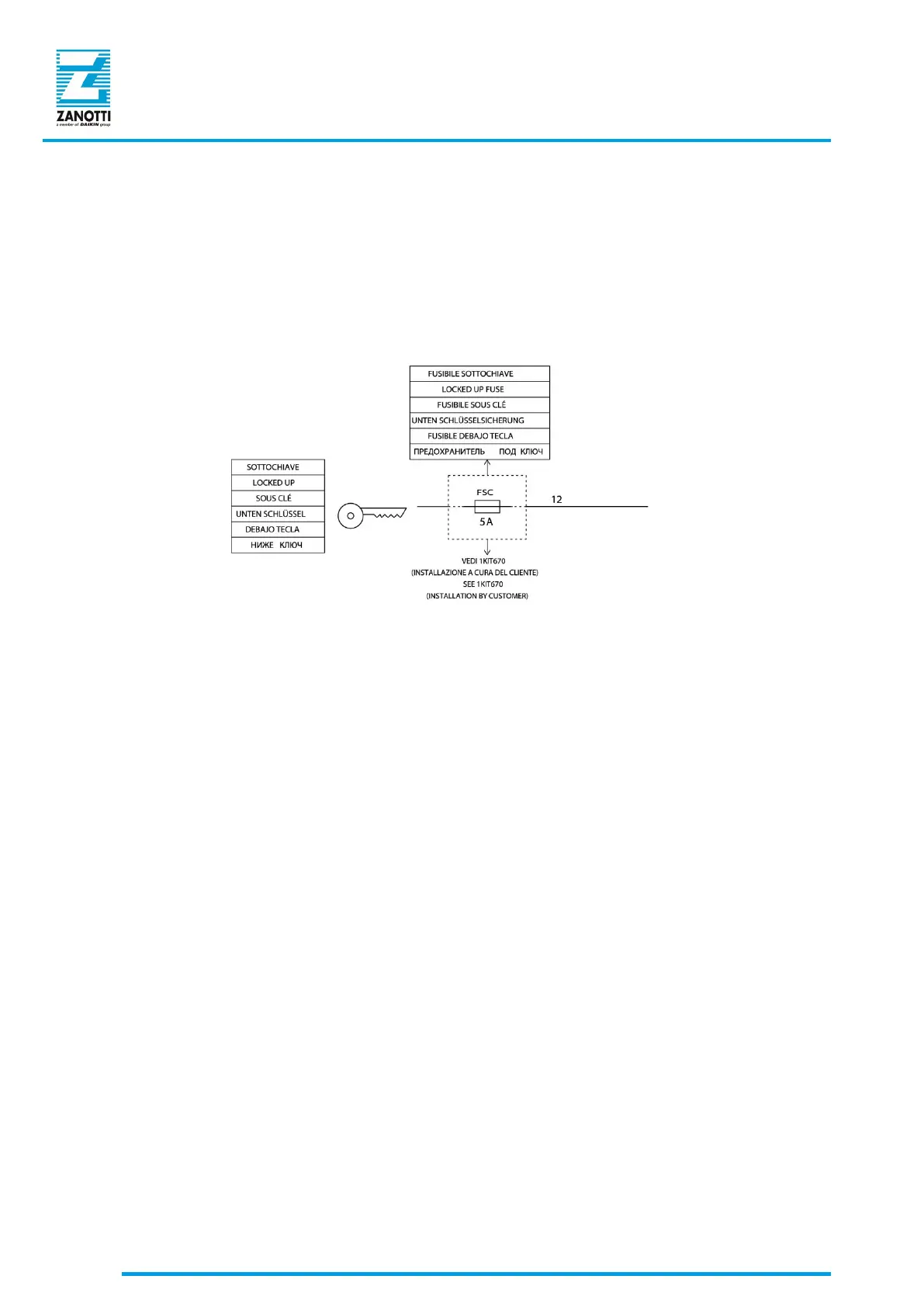

3.10.1 Sub-key fuse installation kit
The sub-key fuse installation kit is supplied separately and consists of the following components:
• Fuse base
• Blade fuse, 5A
• Connector
Figure 63 - Sub-key fuse kit
