3.19 Single temperature heating kit (optional)
3.19.1 Operating logic
This option allows the unit to have two functions:
a) Cooling mode: inject liquid into the suction line to reduce the temperature of the compressor
exhaust gas.
b) Heating mode: it pushes most refrigerant from the condenser and the liquid receiver to the
evaporator. This establishes a higher pressure and temperature during heating mode, increasing
performance and efficiency.

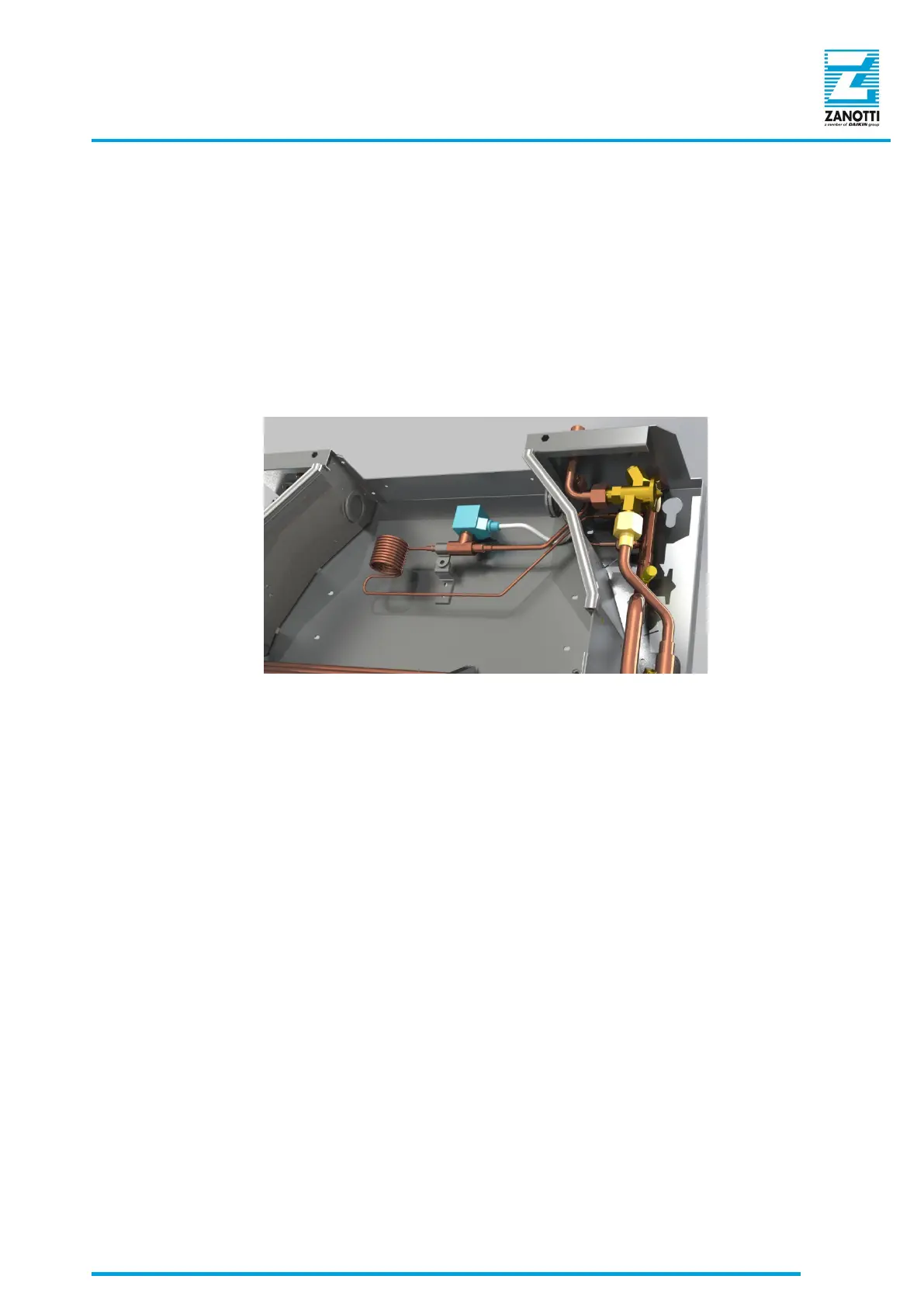

Figure 77 - Heating kit
3.19.2 Components
• Liquid injection solenoid assembly
• Reel
• Plugs and connectors for assembling and connecting new parts
• Thermostat
• PMX/1 pressure switch
• Diode D/1
3.19.3 Installation
Follow the instructions in the installation manual OIST061 for assembly.
