INSTALLATION MANUAL
Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
rev.01
3.8.4 Vacuum pump connection
The manifolds of the vacuum pump can be connected to the fittings installed on the suction sockets (1,
Figure 58) and exhaust (2) of the vehicle compressor or, alternatively, to the low pressure outlet (1, Figure
59) of the service and the high pressure outlet (2, Figure 60) on the liquid receiver shut off valve.

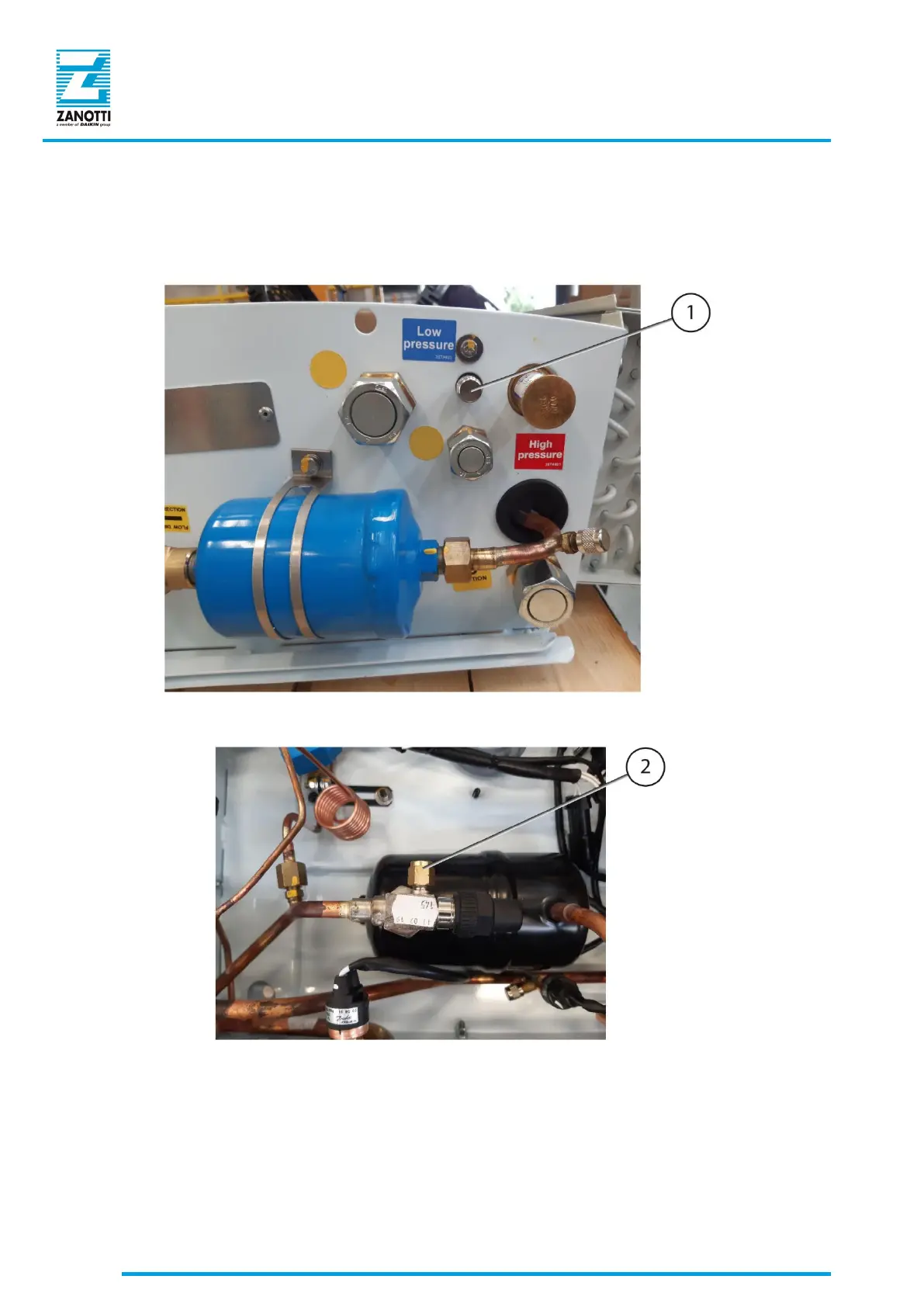

Figure 59 - Low pressure socket
Figure 60 - High pressure socket
