Zanotti Zero Series - Connection Diagram - Single Temperature Versions

Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
INSTALLATION MANUAL
rev.01
49
3.8.1 Connection diagram - single temperature versions

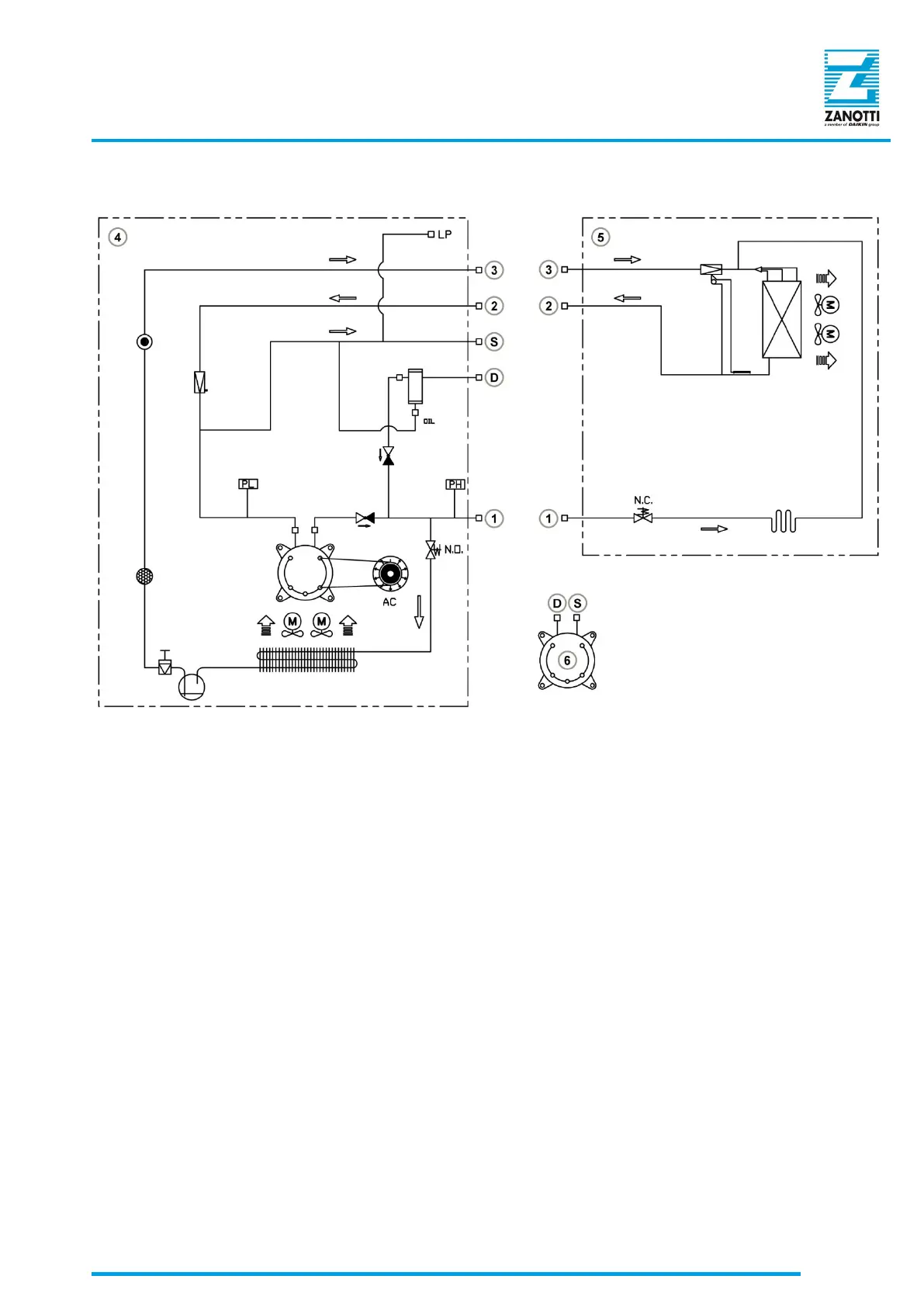

Figure 56 - Connection diagram - single temperature
1 Defrosting line Ø 10 mm [0.39 in] S
Road compressor suction line
Ø 16 mm [0.63 in ]
2 Suction line Ø 16 mm [0.63 in] 4 Condenser unit
3 Liquid line Ø 8 mm [0.31 in] 5 Evaporator
D Road compressor supply line Ø 10 mm [0.39 in] 6 Road compressor
