3.13 External power supply mode connection socket installation
Do not connect the cable to the power supply during installation.
To install the External power supply plug, proceed as follows:
• Using the screws provided, fix the socket (3, Figure 68) to the external wall of the cold room
• Position the connecting cable (2) between the socket (3) and the condenser unit (1) and fix it using
the terminals provided
• Cut the excess cable
Do not roll over the excess cable and do not create junctions.
• Consulting the wiring diagram provided, connect the earth, the neutral (if present) and finally the
phases.

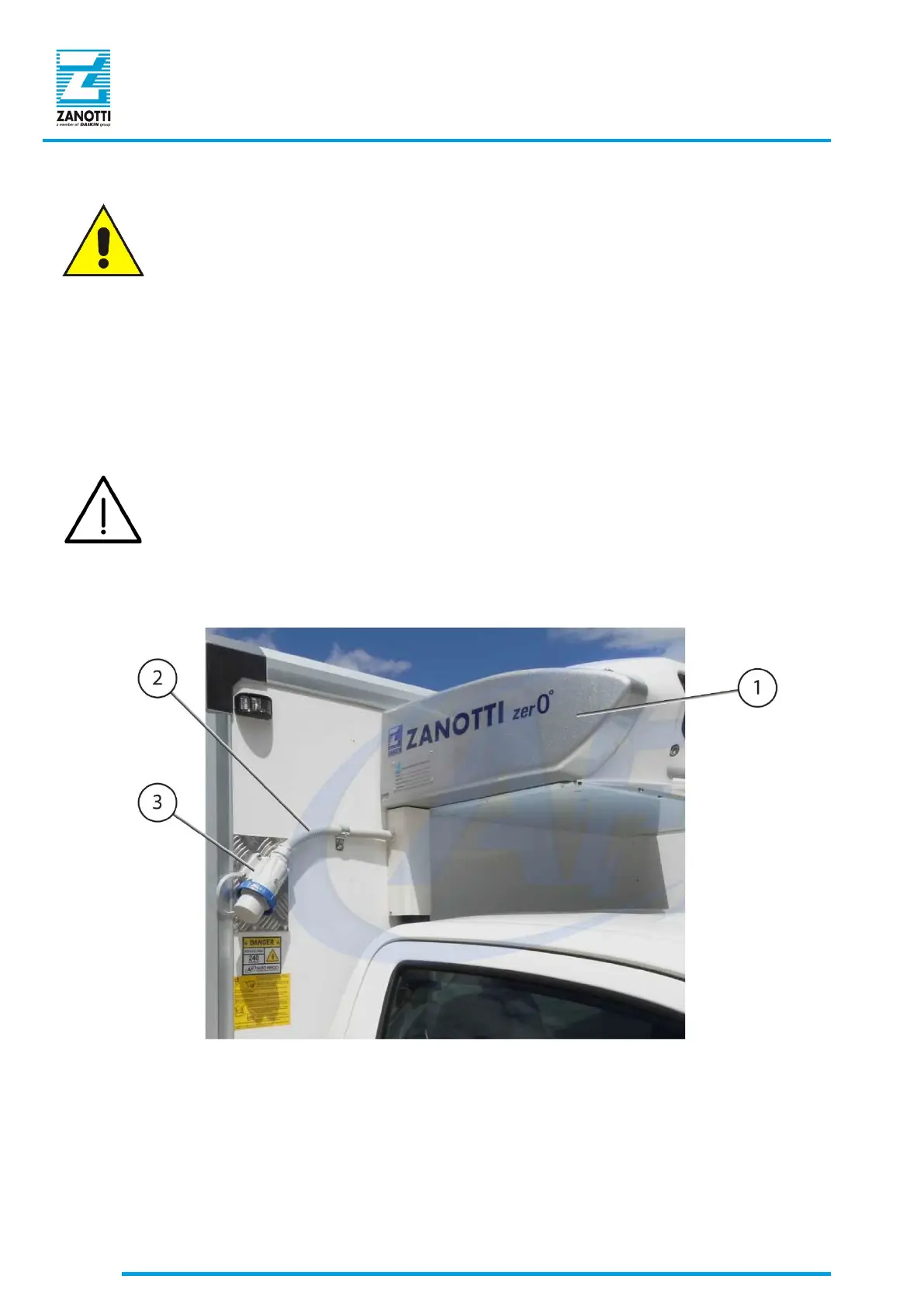

Figure 68- Installing the External power supply connection socket
