2.1.5 Z380 Multi
2.1.5.1 Standard Evaporators
NOTE
For the dimensions of the condenser unit, refer to paragraph 2.1.4.
Dimensions in mm [in].

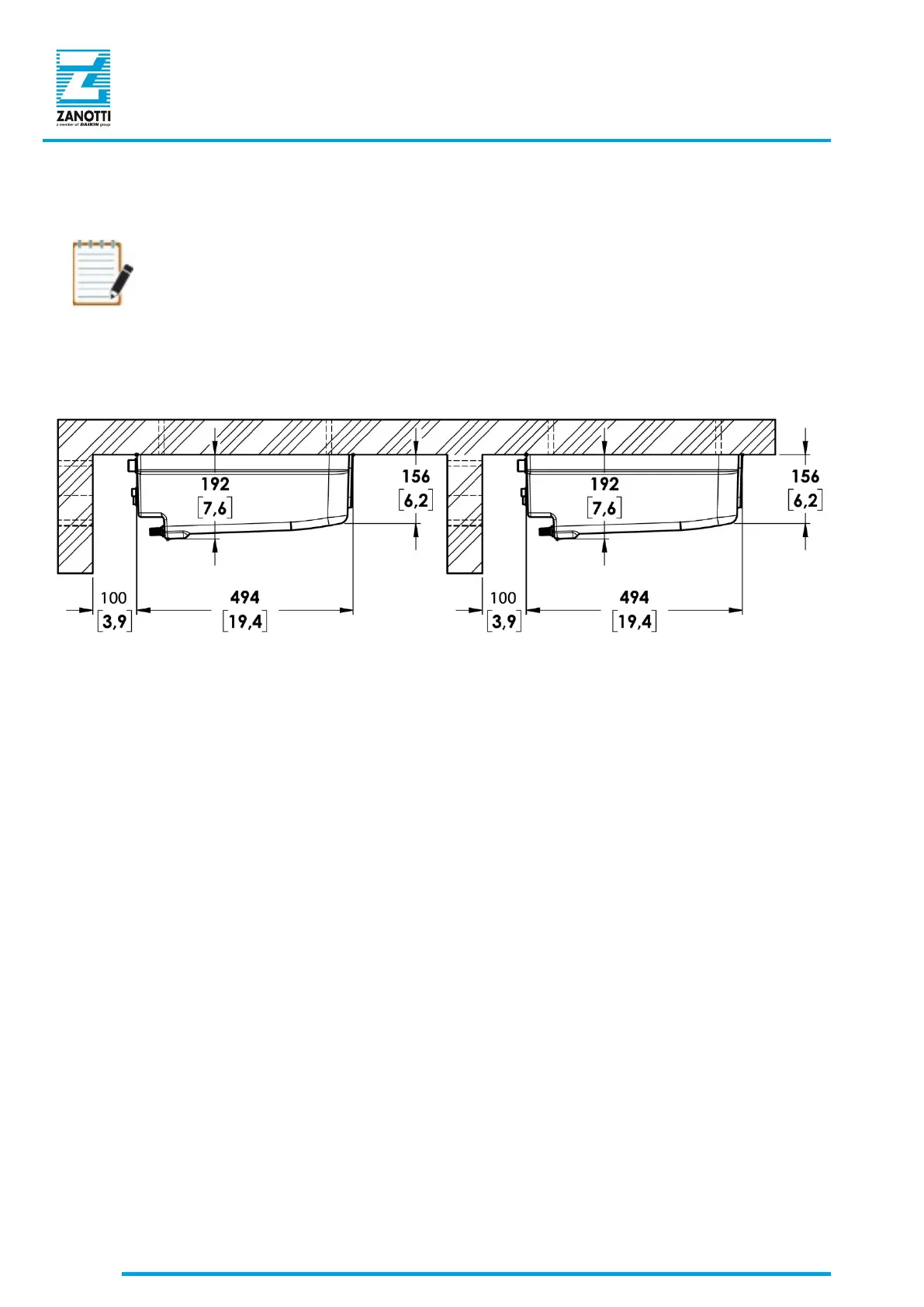

Figure 38 - Side view of Standard evaporators
