Zanotti Zero Series - Page 31

Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
INSTALLATION MANUAL
rev.01
31

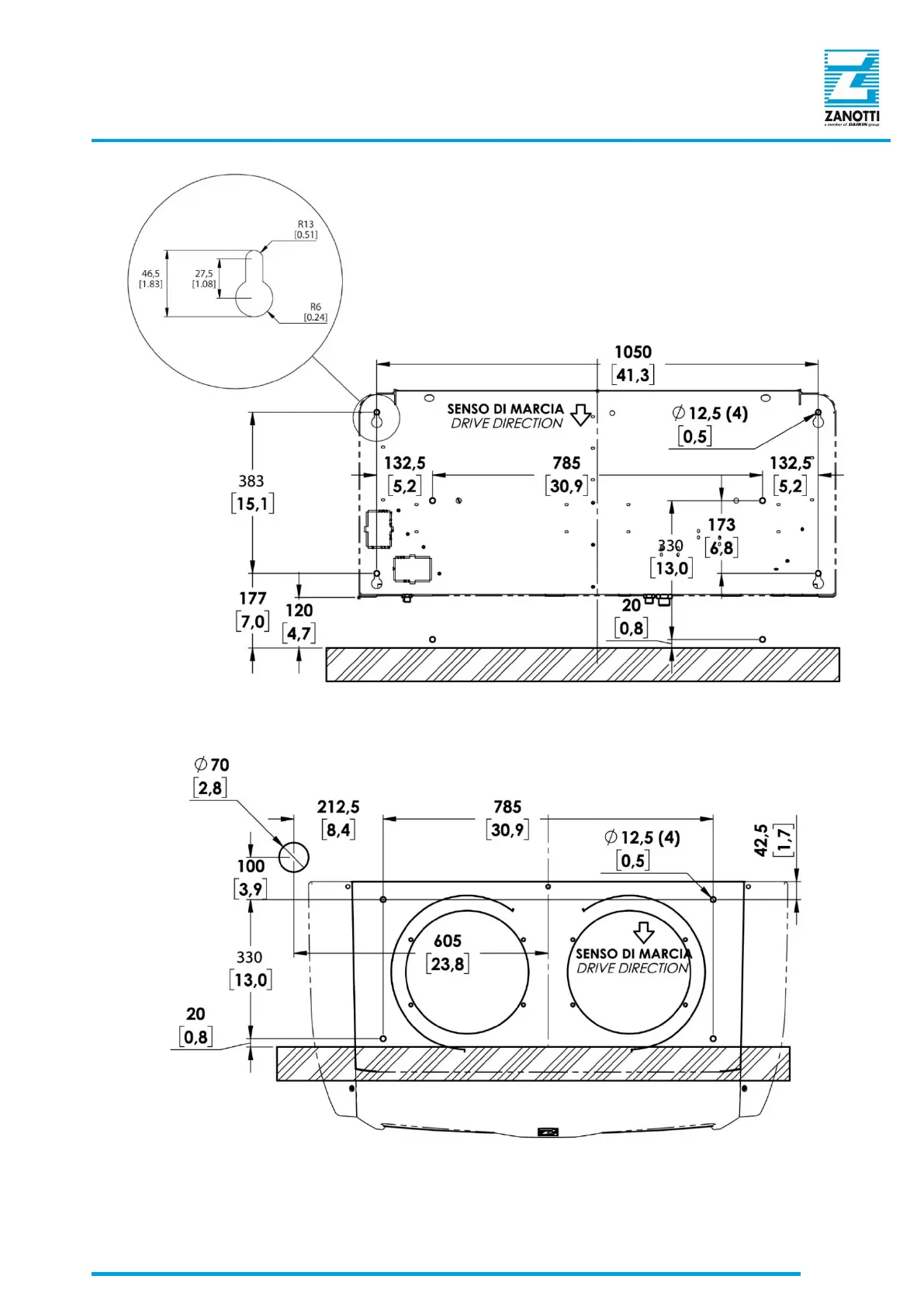

Figure 36 - View from the top of the condenser unit
Figure 37 - Top View from the evaporator
Evaporator fastening screws: TE M8x120 (Q.ty 4).
