3.6 Condenser unit installation
NOTE
The right side of the condenser unit is equipped with a removable door (1, Figure 52)
for the passage of cables and pipes.

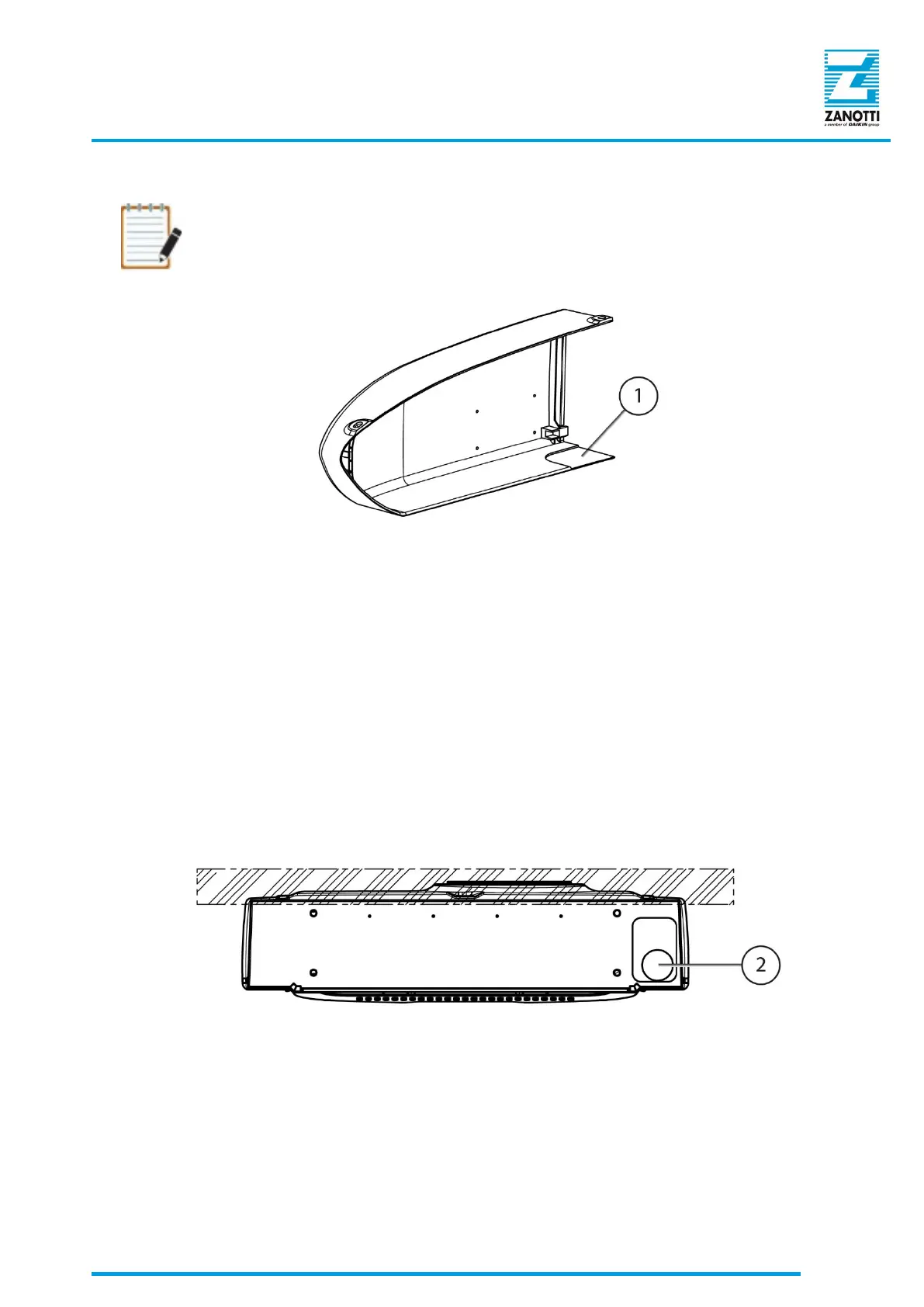

Figure 52 - Right side door of condenser unit
3.6.1 Nose installation
To install the condenser unit proceed as follows:
• Prepare the installation and passage holes for the pipes and electrical cables, following the model
of the refrigeration unit and the installation mode (see 2.1).
• Place the work platform near the truck.
• Move the condenser unit, coupled to the lifting device, towards the truck wall.
• Pass the pipes and the electrical cables connecting the evaporator through the hole (2, Figure
53).
Figure 53 - Piping and electrical cables hole passage
• Fix the unit with the screws provided.
