INSTALLATION MANUAL
Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
rev.01
• Remove the side frame.

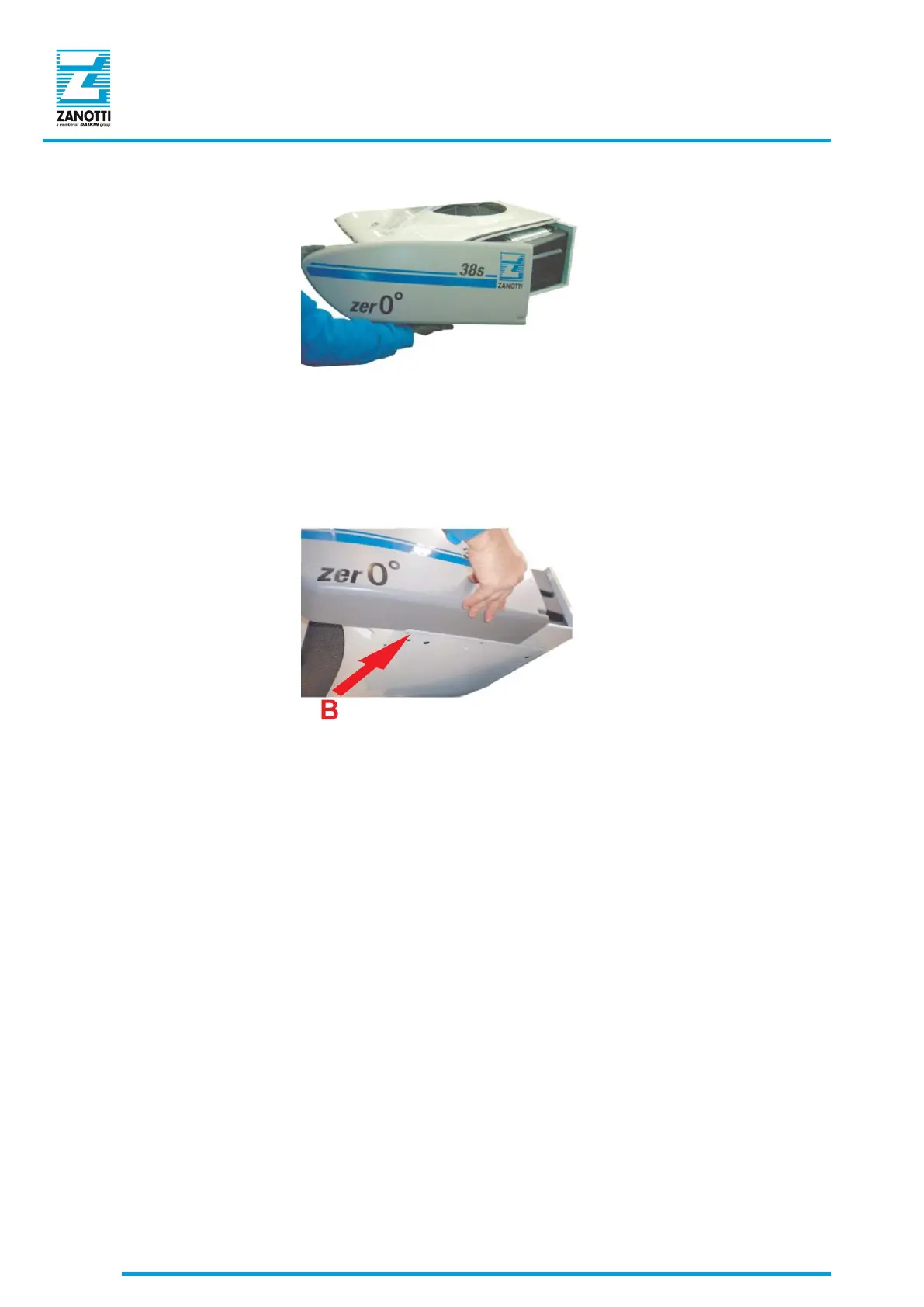

Figure 48 - Removing the side frame
3.4.2 Assembly
Following the removal procedure in reverse order, reassemble the side frame, making sure that the lower
part of the side frame is correctly inserted in its guide (B, Figure 49).
Figure 49 - Mounting the side frame
