INSTALLATION MANUAL
Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
rev.01
3.11 Condenser drain hoses installation
Connect the drain hoses only by means of "T" or "Y" junctions.
For proper drainage, the drain hose must slope down from the remote evaporators to
the wall drains with no kinks or droop.
To install the drain hoses, proceed as follows:
• Connect the drain hoses to the discharge outputs (1, Figure 65) of the evaporator and fix them
with the attached clamps.
• Fix drain hose to the outside of the truck box wall with supplied clamps and screws.
• Seal around drain hoses with caulk to prevent air and water leakage.

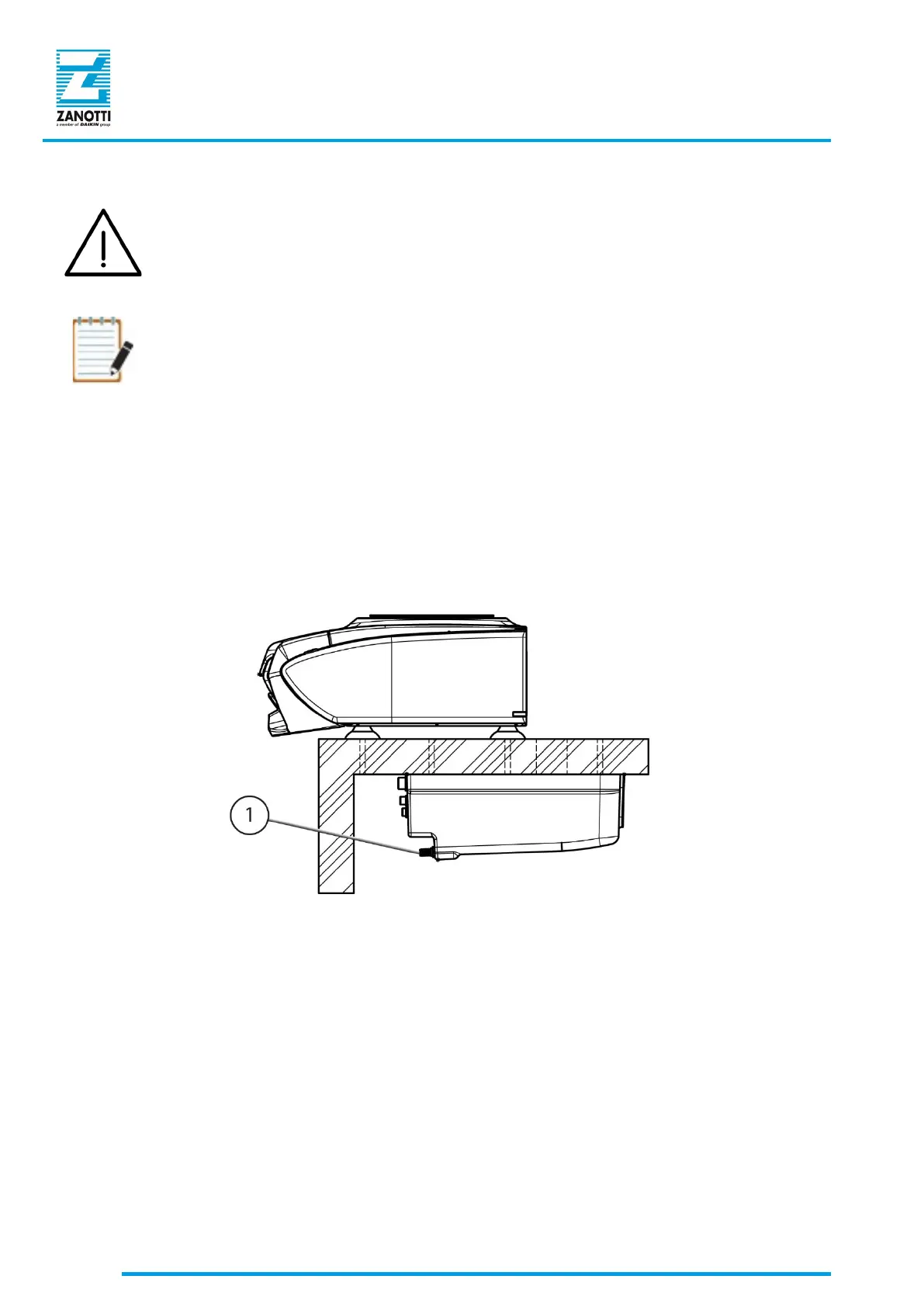

Figure 65 - Condenser drain hoses
