3.18.4 Injection thermostat

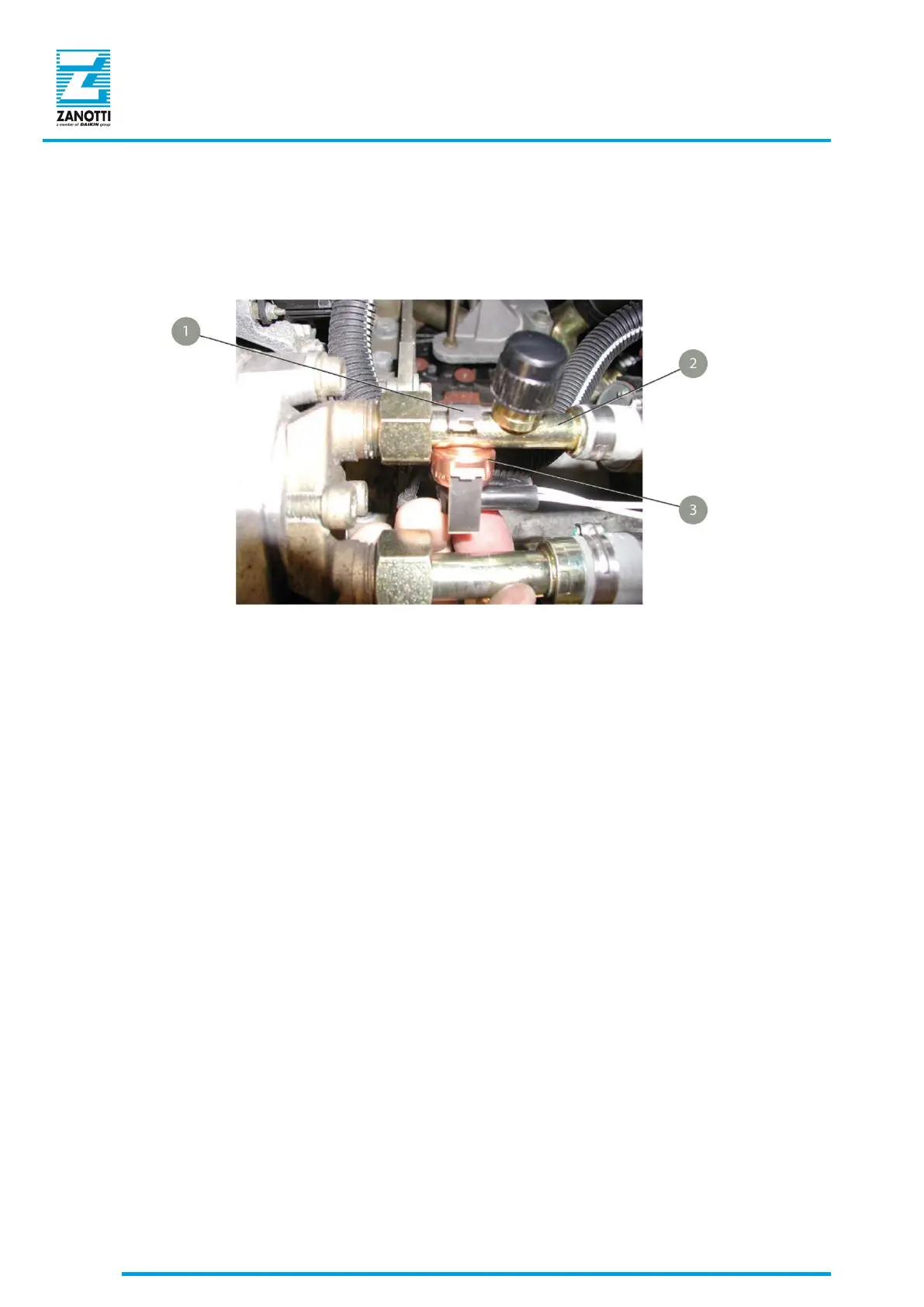

Install the FTI injection thermostat (3, Figure 74) on the compressed air supply line (2) and fix it with the
appropriate clamp (1).
Figure 74 - Injection thermostat
