• Prepare an external channel (3, Figure 54) for passage of the Road compressor pipes.

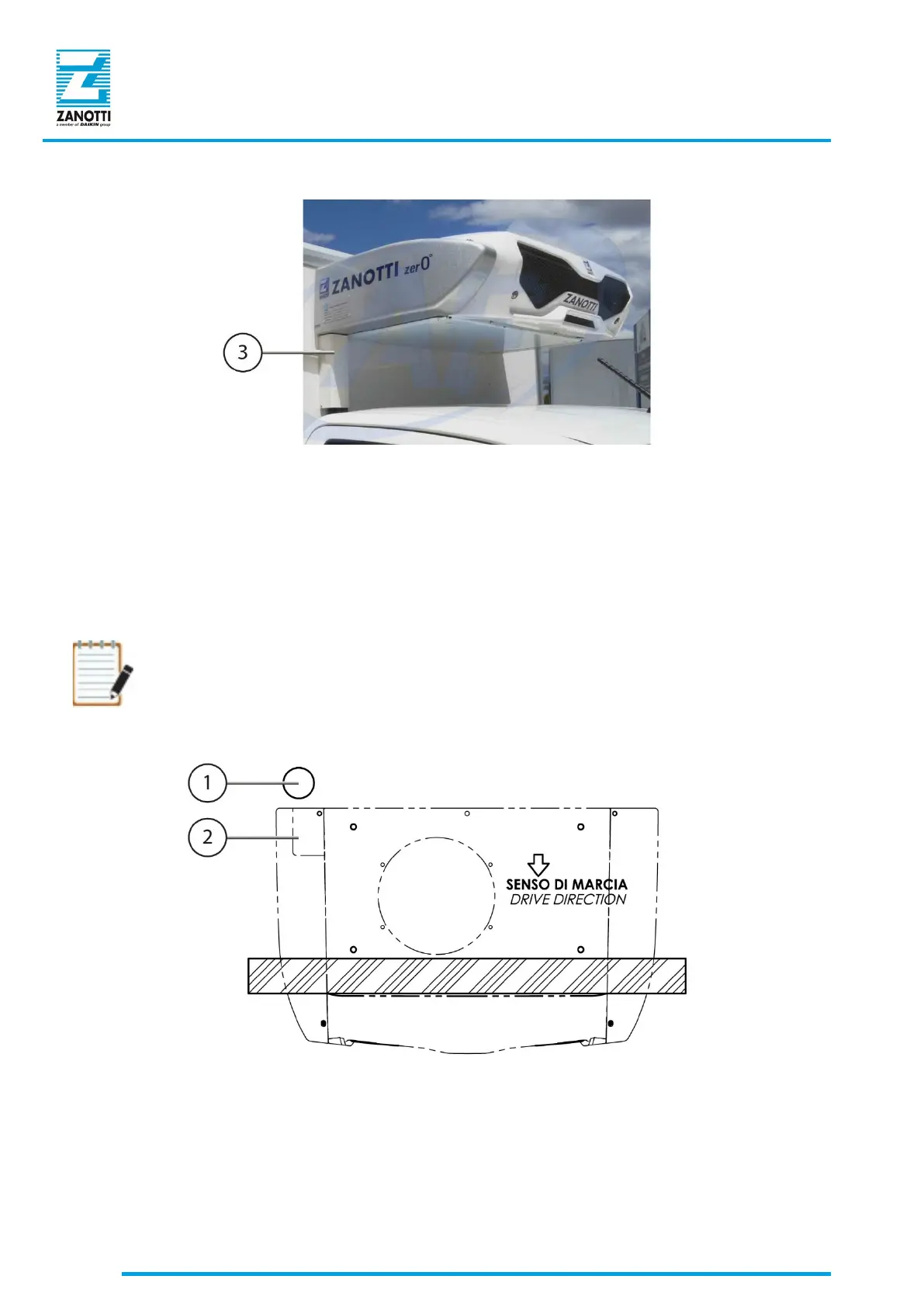

Figure 54 - External channel
3.6.2 Roof installation
To install the condenser unit proceed as follows:
• Prepare the installation and passage holes for the pipes and electrical cables, following the model
of the refrigeration unit and the installation mode (see 2.1).
It is possible to pass the pipes and electricity cables connecting the evaporator through
the external hole (1, Figure 55) or through the internal hole in correspondence with the
removable door (2).
Figure 55 - Passage of pipes and electrical cables
• Place the work platform near the truck.
• Move the condenser unit, coupled to the lifting device, towards the truck roof.
