4 APPENDIX
4.1 Cooling diagram - single temperature version

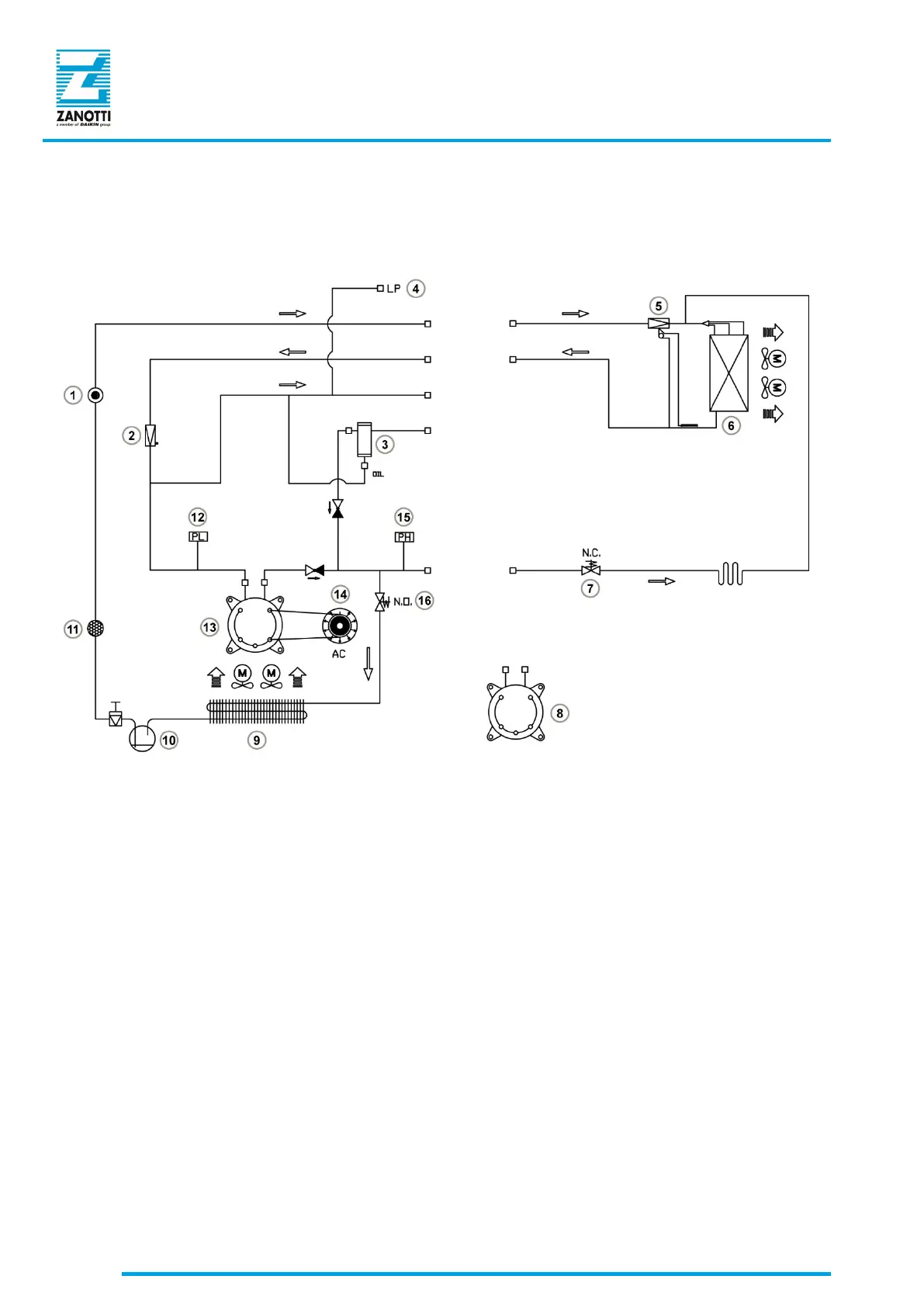

Figure 81 - Cooling diagram (single temperature version)
1 Liquid spyglass 9 Condenser
2 Pressure regulator valve 10 Liquid receiver
3 Oil separator 11 Dehydrating filter
4 Low pressure service socket 12 Low pressure switch
5 Expansion valve 13 Stand-by Compressor
6 Evaporator 14 Electric motor
7 YS defrosting valve 15 High pressure switch
8 Road compressor 16 YG condenser closing valve
