3.18.5 Cooling diagram with liquid injection valve kit installed

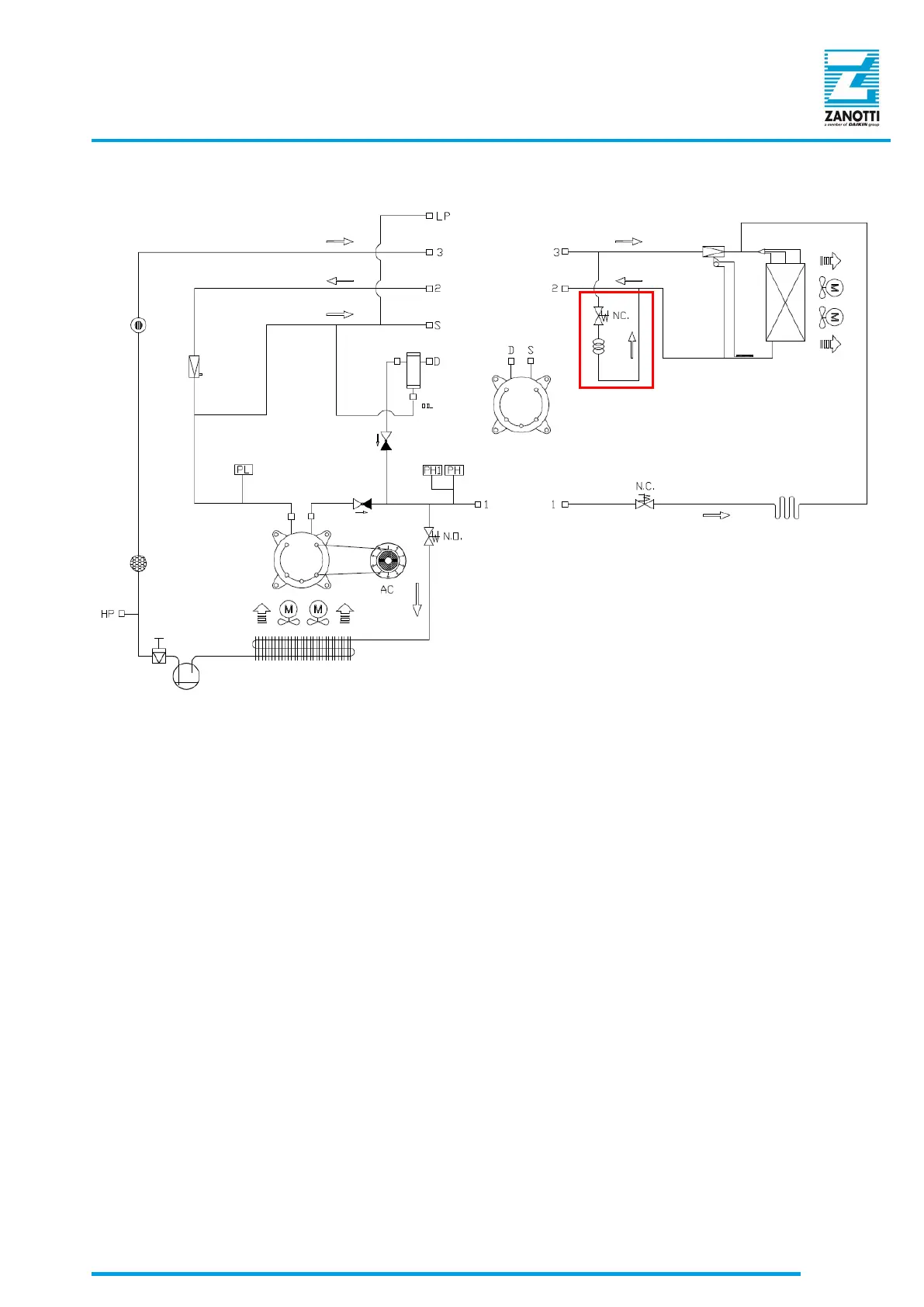

Figure 75 - Cooling diagram with liquid injection valve kit
