3.4 Removal and mounting of the flaps of the condenser unit
CAUTION
DO NOT remove the side frame from the front, as shown in Figure 45
, to avoid
damaging the unit.
Follow the procedure below to remove the flap.

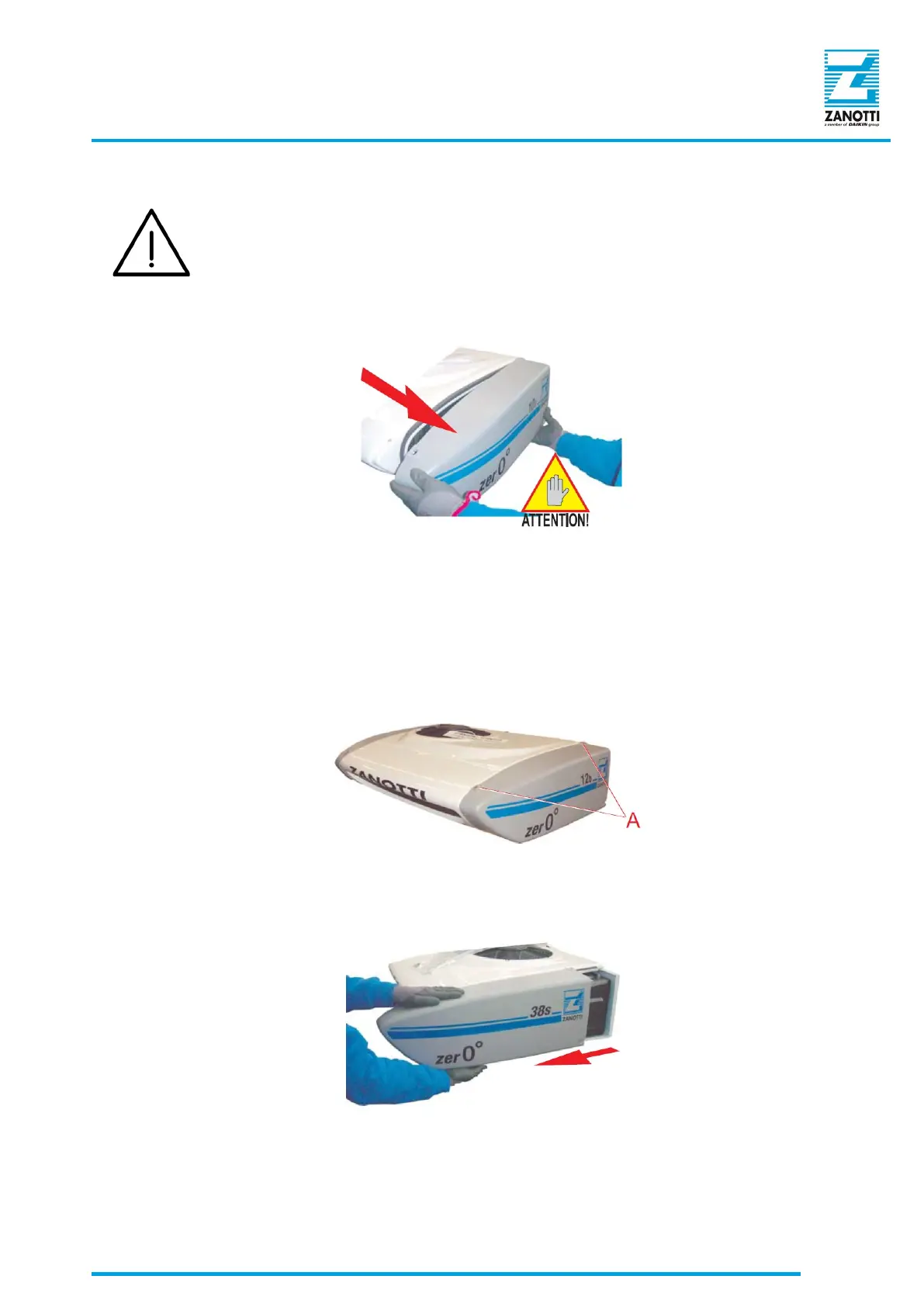

Figure 45 - Wrong removal of the side frame.
3.4.1 Removal
To remove the side frames of the condenser unit, proceed as follows:
• Unscrew the screws (A, Figure 46) with the appropriate tool
Figure 46 - Fastening screws on the side of the machine
• Slide the side to the front wall for at least 3 cm [1.18 in].
Figure 47 - Sliding the side frame
