INSTALLATION MANUAL
Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
14
rev.01

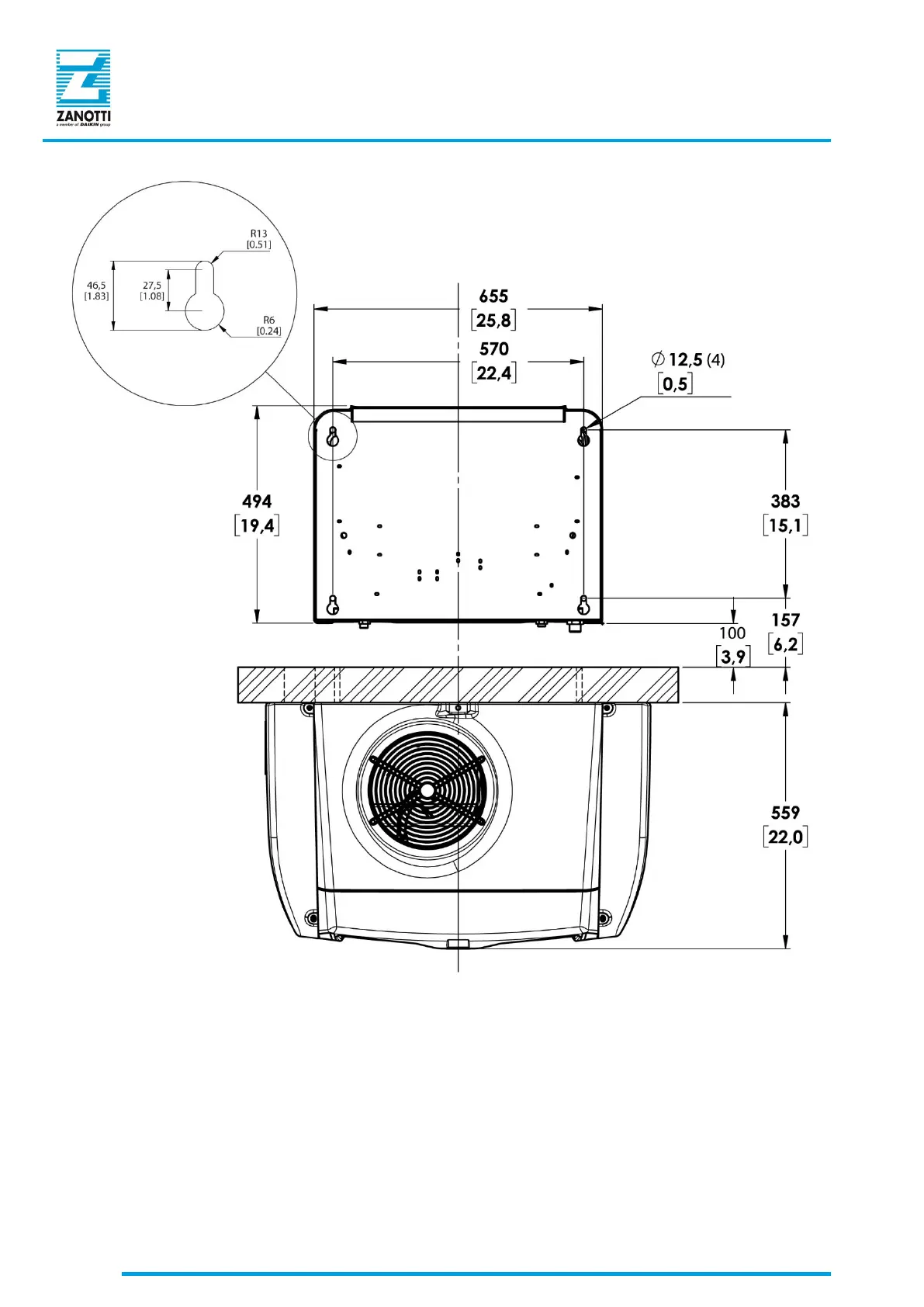

Figure 9 - Upper view of the condenser unit + evaporator
Evaporator fastening screws: TE M8x120 (Q.ty 4).
