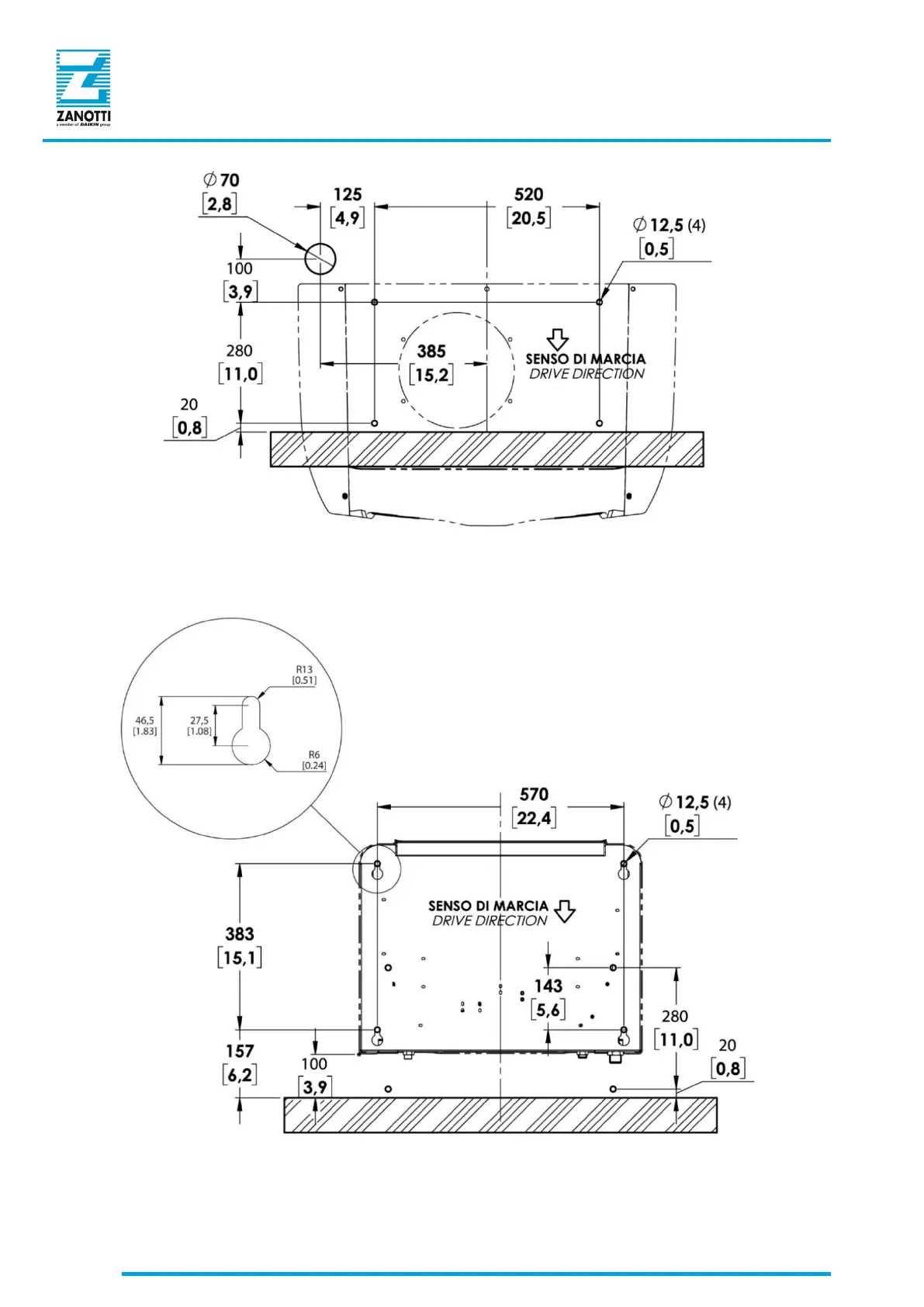

Figure 12 - View from the top of the condenser unit
Figure 13 - Top View from the evaporator
Evaporator fastening screws: TE M8x120 (Q.ty 4).
