Zanotti Zero Series - Page 26

INSTALLATION MANUAL
Refrigeration unit
Series Zero Direct-Drive
Z200 | Z250 | Z350 | Z380
Z380 Multi
26
rev.01

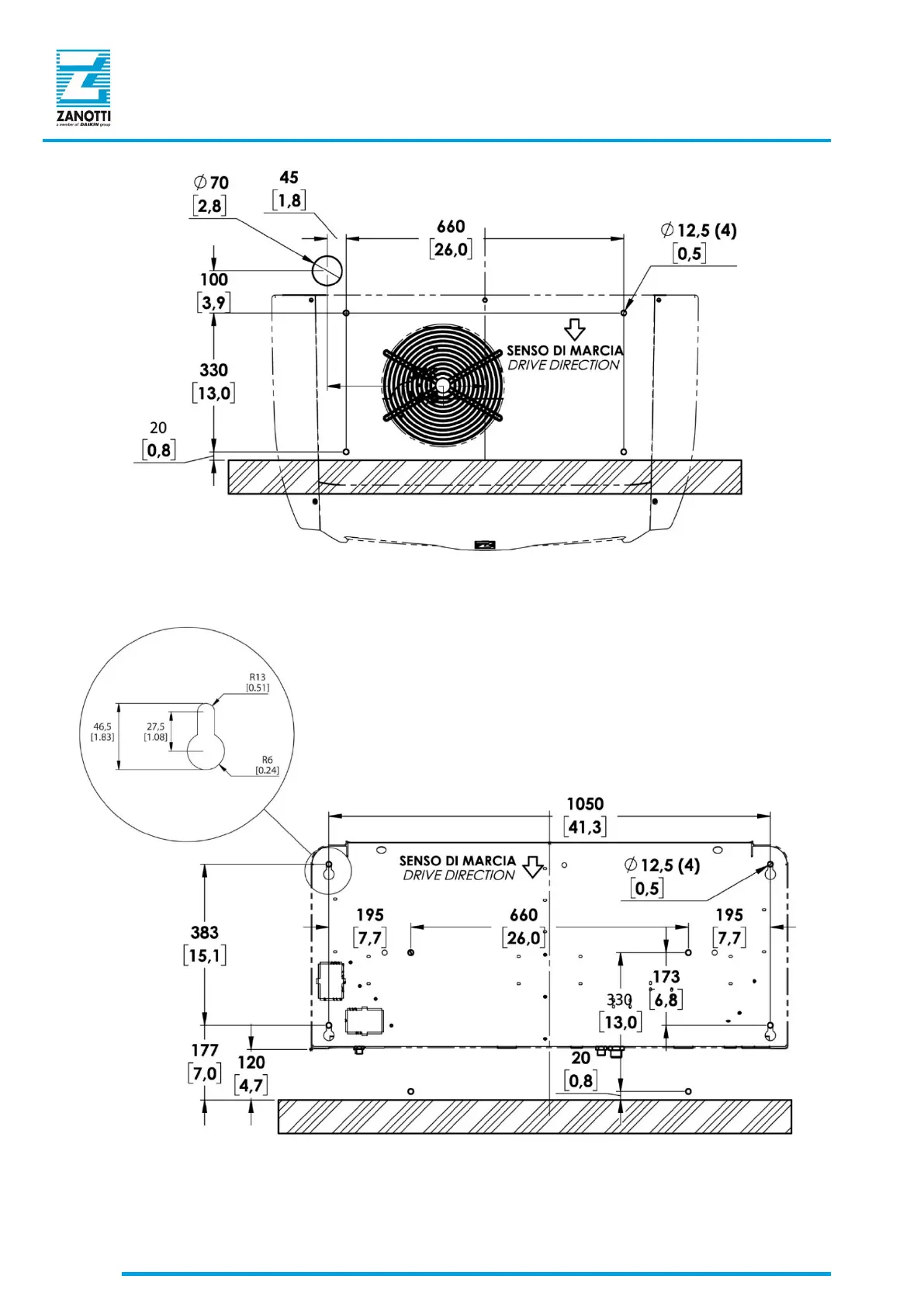

Figure 28 - View from the top of the condenser unit
Figure 29 - Top View from the evaporator
Evaporator fastening screws: TE M8x120 (Q.ty 4).
