Zebra CC6000 User Manual

Settings
52
Backup
RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.
To save the backup data, touch BACKUP > Yes.

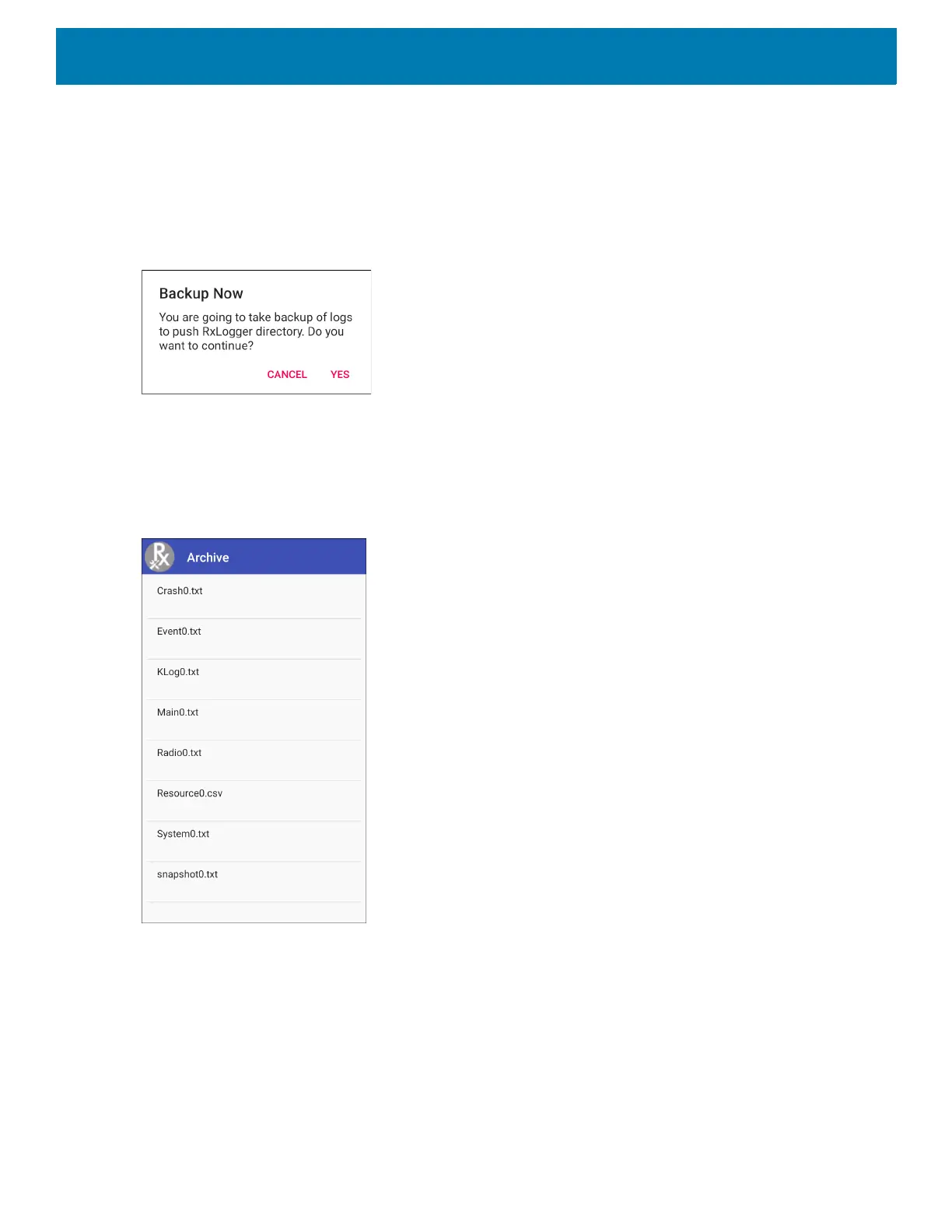

Figure 36 Backup Message
Archive Data
View all the RxLogger logs stored in the default RxLogger directory. Logs viewed in the Archive window are not
live.
Figure 37 Archive
To view the log files, touch ARCHIVE DATA and then touch a log file.
Overlay View
Use Overlay View to display RxLogger information while using other apps or on the home screen. Overlay
View is accessed using the Main Chat Head.
Initiating the Main Chat Head
To initiate the Main Chat Head:

Zebra CC6000 Specifications

General

Megapixel	5 MP
Supported video modes	1080p
Operating system version	11
Operating system installed	Android
Product color	Black
Display diagonal	10.1 \
Display resolution	1280 x 800 pixels
Display aspect ratio	16:10
Connectivity technology	Wired & Wireless
Number of displays supported	-
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking standards	IEEE 802.3at
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Speaker power	2 W
Number of speakers	2
Compatible memory cards	MicroSD (TransFlash)
AC adapter input voltage	110/220 V
AC adapter output current	3 A
AC adapter output voltage	5.4 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176920

Weight and Dimensions

Depth	201 mm
Width	278 mm
Height	36 mm
Weight	980 g
