8 - 2 LS2208 Product Reference Guide
Connecting to an IBM 468X/469X Host
The scanner connects directly to the host interface.

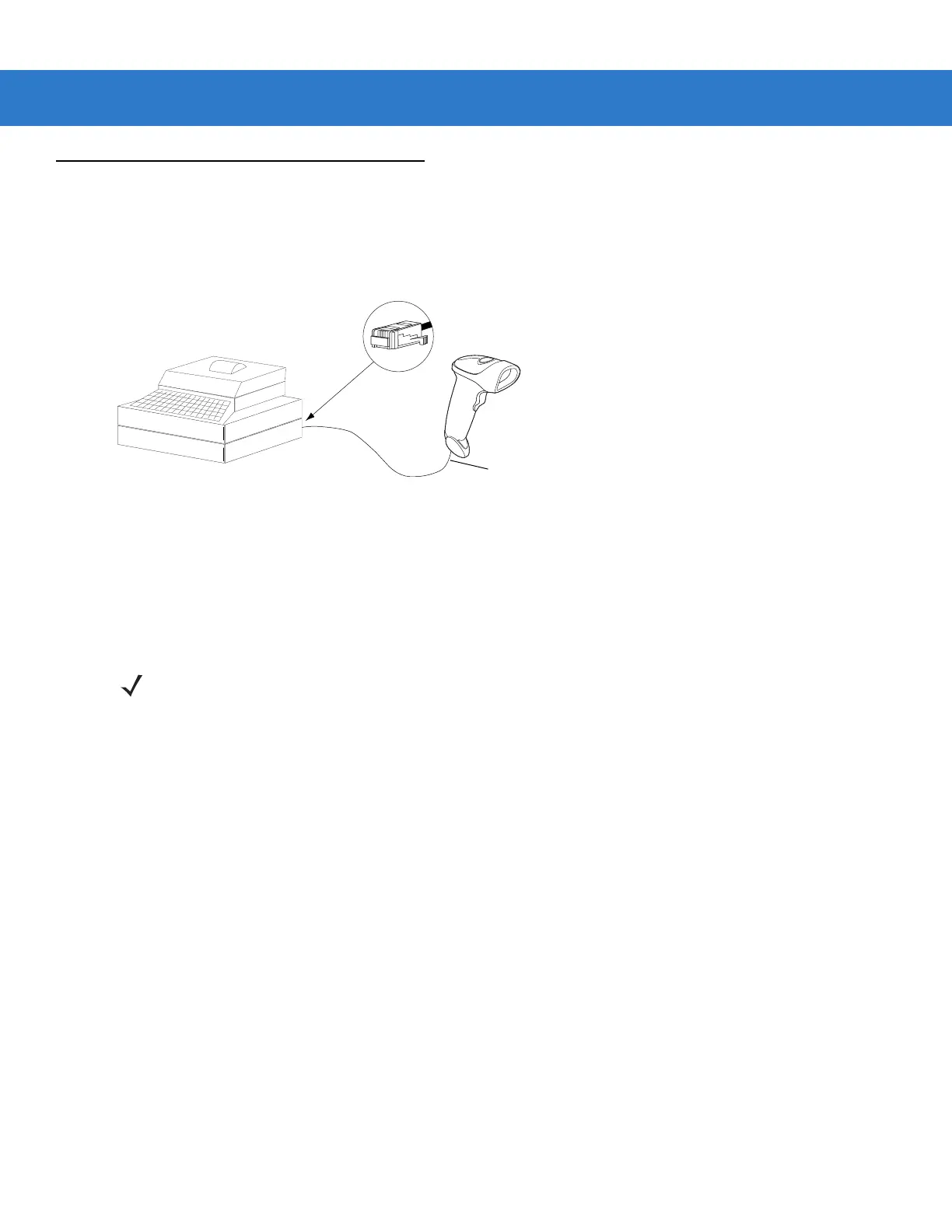

Figure 8-1
IBM Direct Connection
1. Connect the interface cable to the bottom of the scanner, as described in Installing the Interface Cable on page
1-3.
2. Connect the other end of the interface cable to the appropriate port on the host (typically, Port 9).
3. Scan the appropriate bar codes in this chapter to configure the scanner.
Host Port Connector
Interface Cable
NOTE The only required configuration is the port number. The IBM system typically controls most other scanner
parameters.
