Zebra LS2208 Reference Guide

Name: Zebra LS2208
Brand: Zebra
Rating: 4 (1 reviews)

334 pages

To Next Page

To Previous Page

5 - 8 LS2208 Product Reference Guide

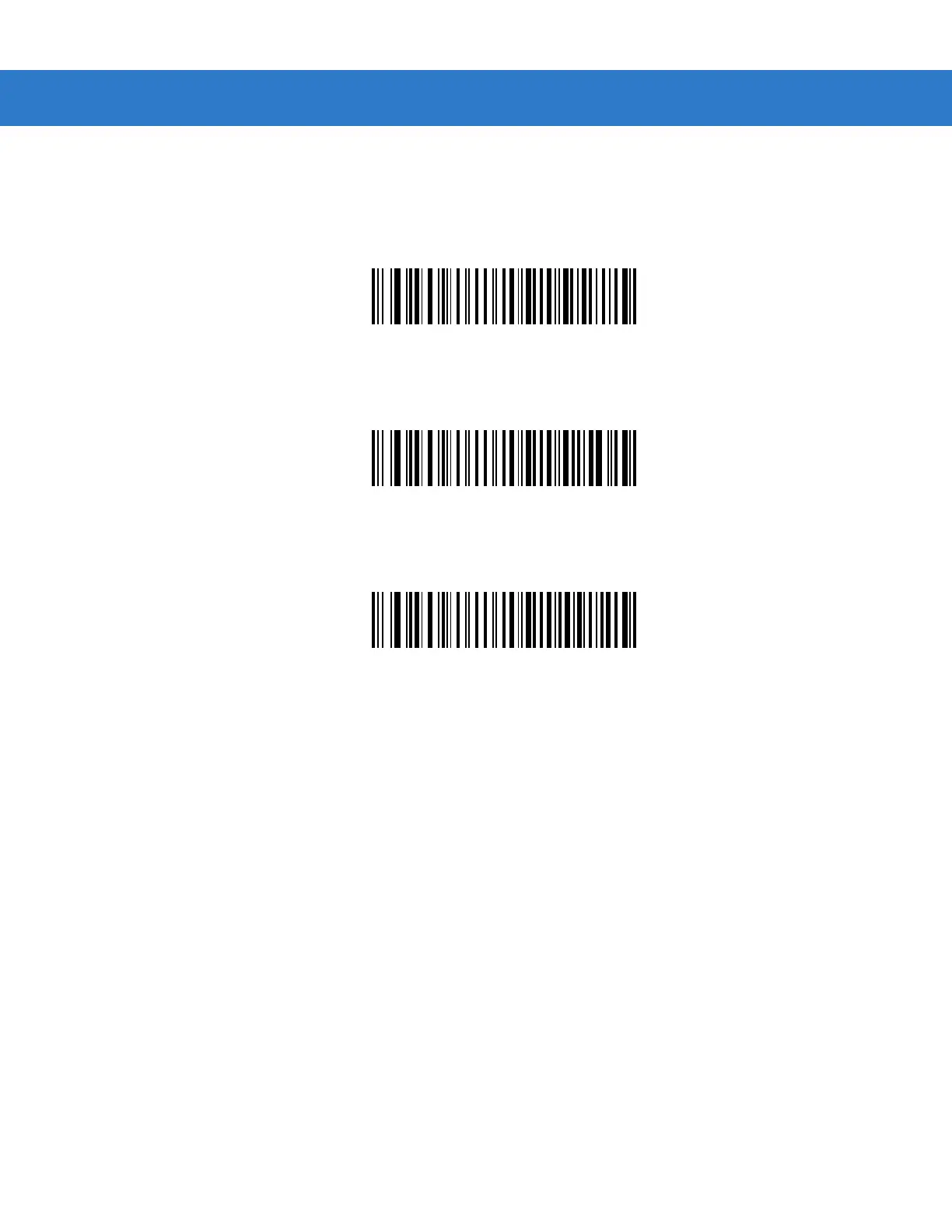

Keystroke Delay

This is the delay in milliseconds between emulated keystrokes. Scan a bar code below to increase the delay when

hosts require a slower transmission of data.

*No Delay

Medium Delay (20 msec)

Long Delay (40 msec)

LS22081
- Warranty4
