5 - 4 LS2208 Product Reference Guide

Keyboard Wedge Host Types

Keyboard Wedge Host Types

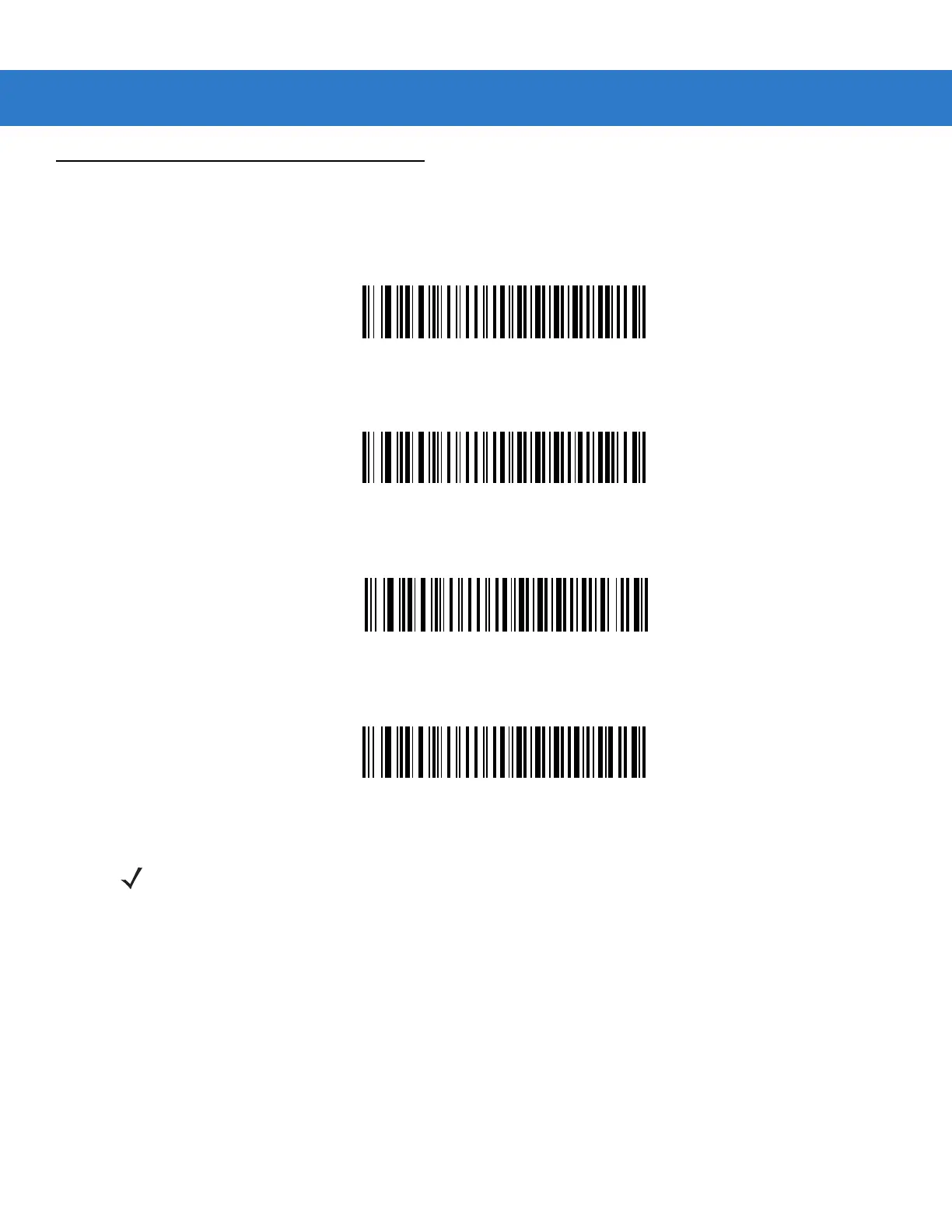

Select the keyboard wedge host by scanning one of the bar codes below.

IBM PC/AT & IBM PC Compatibles

1

IBM PS/2 (Model 30)

IBM AT NOTEBOOK

NCR 7052

NOTE User selection is required to configure this interface and this is the most common selection.
