Zebra LS2208 Reference Guide

2 - 4 LS2208 Product Reference Guide
Scanning in Hand-Held Mode
Install and program the scanner. See each host chapter and Chapter 4, User Preferences, Chapter 12,
Symbologies, Chapter 13, Miscellaneous Scanner Options, and Chapter 14, Advanced Data Formatting for
programming instructions. For assistance, contact your local supplier or support.

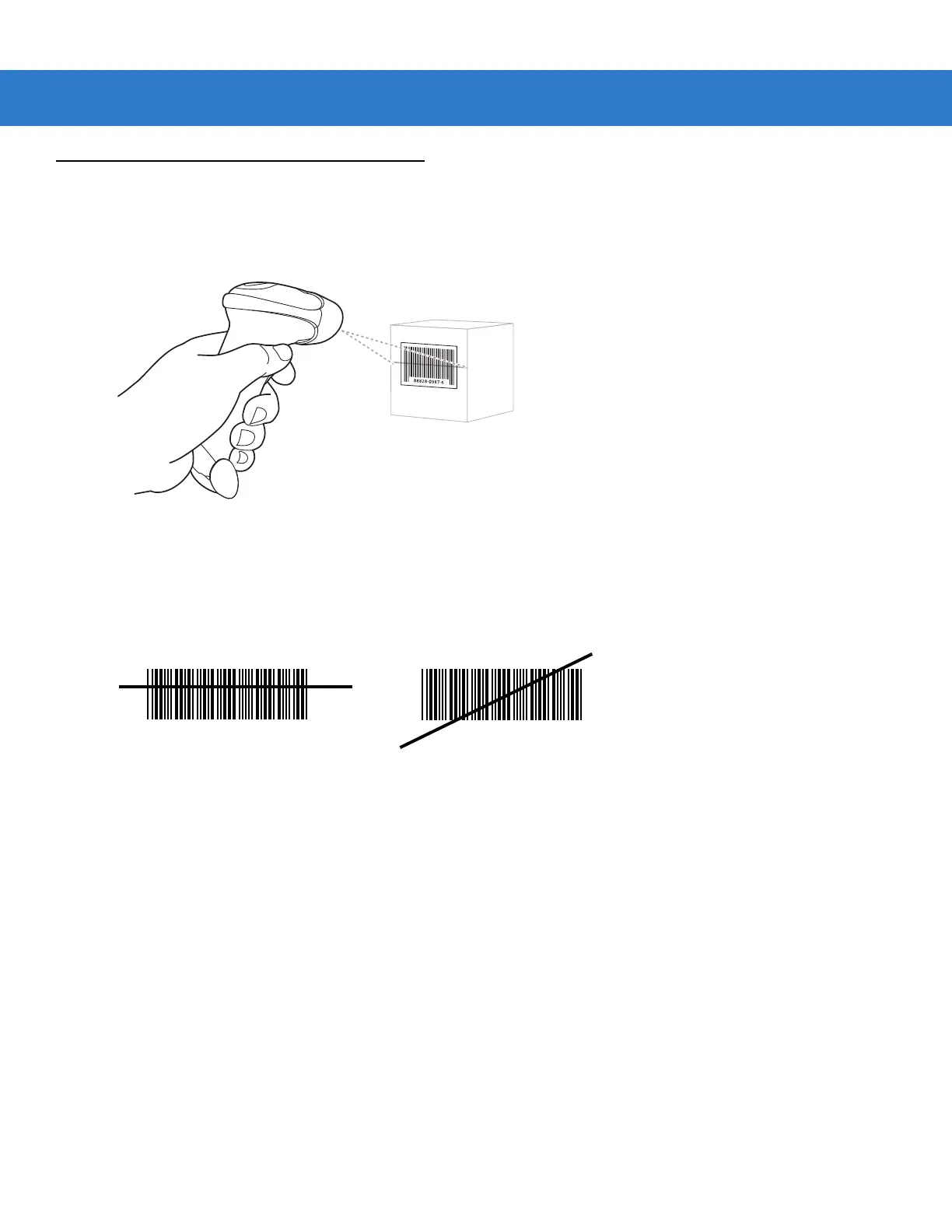

Figure 2-2 Scanning in Hand-Held Mode
1. Ensure all connections are secure. See the host chapter for your host.
2. Aim the scanner at the bar code. Press the trigger.
3. Ensure the scan line crosses every bar and space of the symbol.
4. Upon successful decode, the scanner beeps and the LED turns green. For more information on beeper and
LED definitions, see Table 2-1 and Table 2-2.
RIGHT
012345
WRONG
012345

Zebra LS2208 Specifications

General

Scan Technology	Laser
Connectivity	Wired
Scan Pattern	Single line
Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanner Type	Handheld
Scan Rate	100 scans per second
Humidity	5% to 95% (non-condensing)
Interface Options	USB, RS-232, Keyboard Wedge
Decode Capability	1D barcodes
Dimensions	15.2 cm H x 6.3 cm W x 8.4 cm D
Weight	146 g
Operating Temperature	0°C to 50°C
Resolution	5 mil
Supported Barcodes	UPC/EAN, Code 39, Code 128, GS1 DataBar
Storage Temperature	-40°C to 70°C
