Connecting Using Wand Emulation
To perform Wand Emulation, connect the scanner to a portable data terminal, or a controller which collects the
wand data and interprets it for the host.

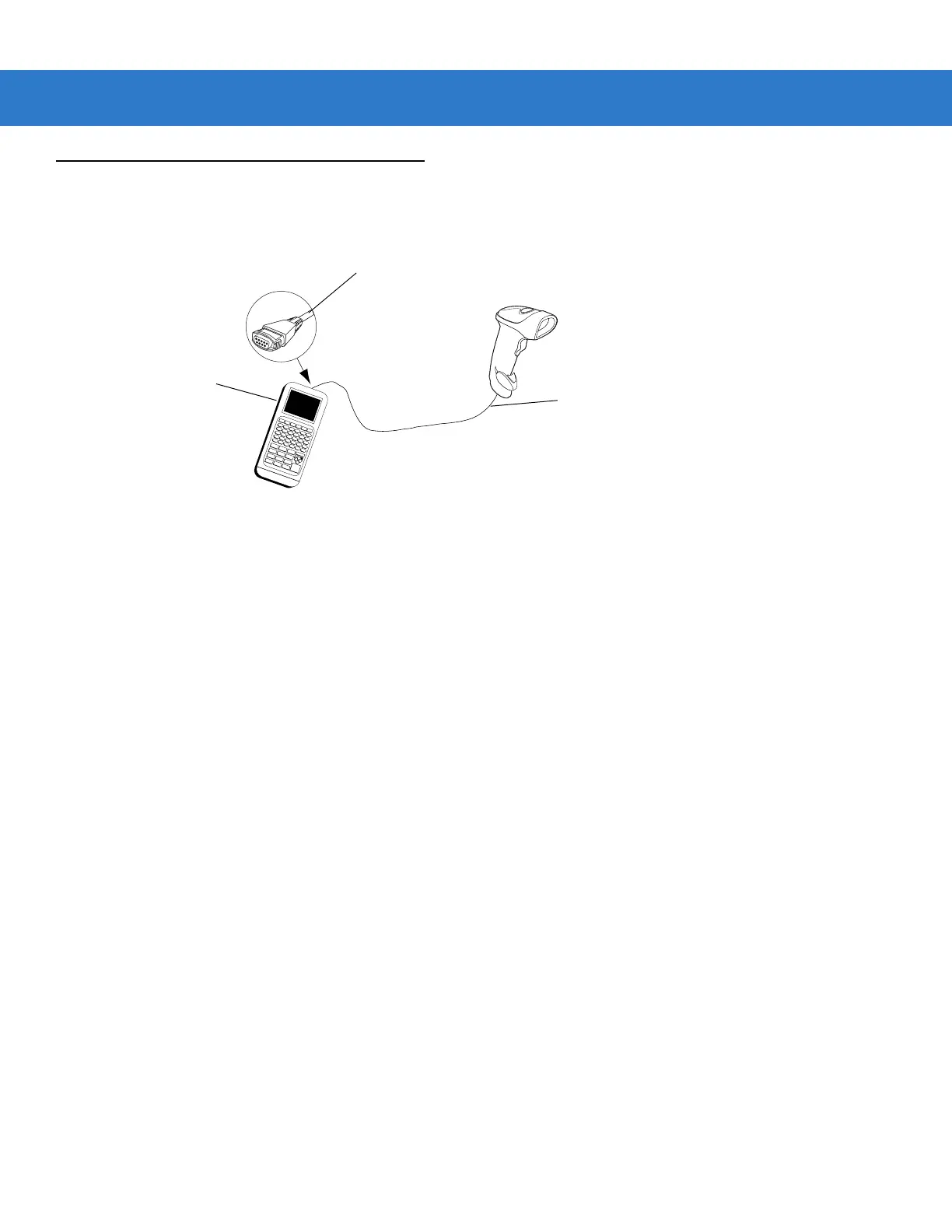

Figure 9-1 Wand Emulation Connection
1. Connect the Wand Emulation interface cable to the bottom of the scanner, as described in Installing the
Interface Cable on page 1-3.
2. Connect the other end of the interface cable to the Wand port on the portable data terminal or controller.
3. Scan the appropriate bar codes in this chapter to configure the scanner.
Wand Port
Portable Data
Terminal
Interface Cable

Zebra LS2208 Specifications

General

Scan Technology	Laser
Connectivity	Wired
Scan Pattern	Single line
Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanner Type	Handheld
Scan Rate	100 scans per second
Humidity	5% to 95% (non-condensing)
Interface Options	USB, RS-232, Keyboard Wedge
Decode Capability	1D barcodes
Dimensions	15.2 cm H x 6.3 cm W x 8.4 cm D
Weight	146 g
Operating Temperature	0°C to 50°C
Resolution	5 mil
Supported Barcodes	UPC/EAN, Code 39, Code 128, GS1 DataBar
Storage Temperature	-40°C to 70°C
