Keyboard Wedge Interface 5 - 15

Keyboard Maps (continued)

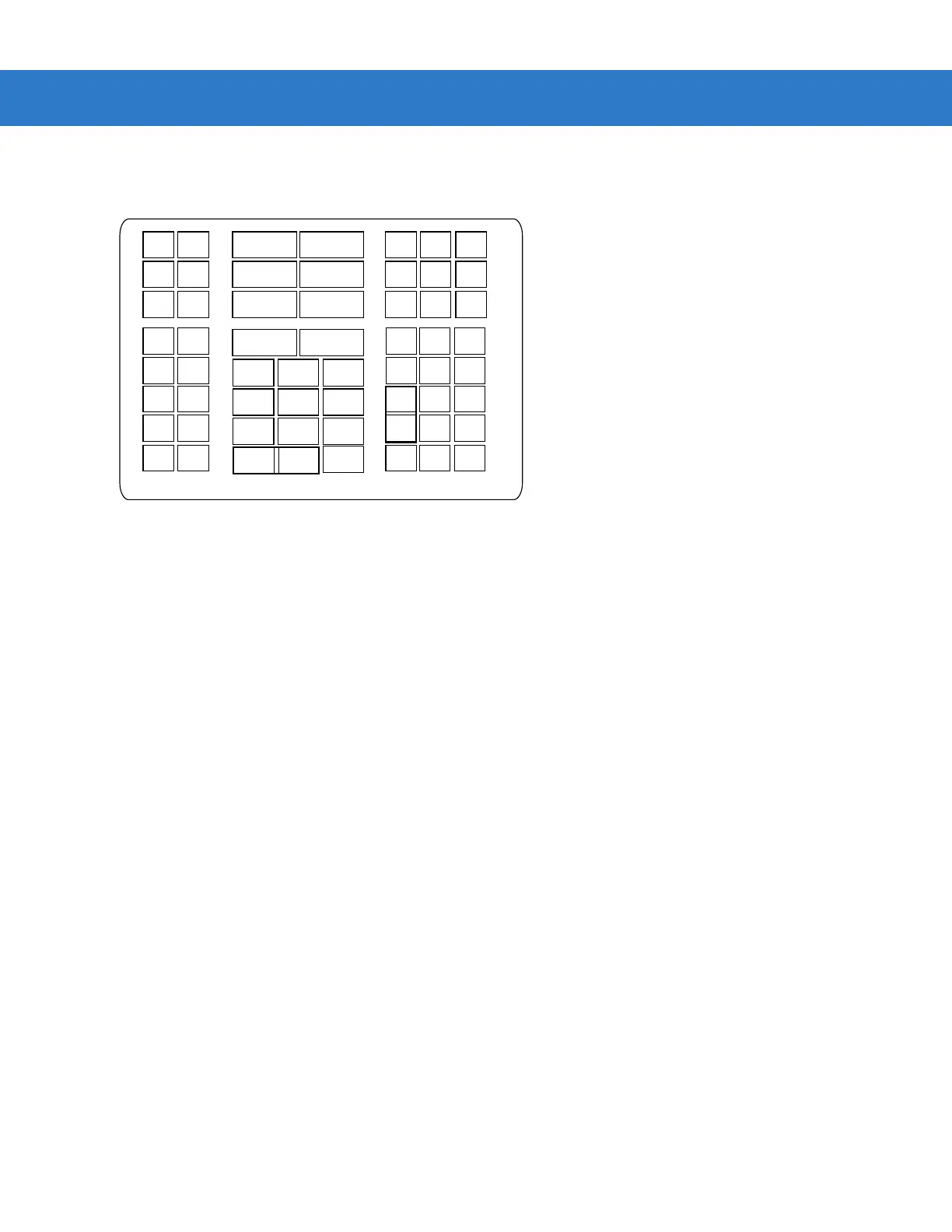

Figure 5-5

NCR 7052 58-KEY

5007

5008

5010

5002

5003

5004

5005 5006

1046

1045

5014

1043

5013

5015

5016

5018

5019

1086

1087

1088

1089

1090

5001

1066

1072

1073

1079 1080

1065

1070

1076

1077

1083 1084

1071

1078

1085

1069

5017

7013

5011

1082

1075

1068

1067

(1043 if double key)

(1048 if double key)

1048

5012

5009

1074

1081

Table of Contents

LS22081
- Warranty4
- Revision History5
Table of Contents7
About This Guide15
- Introduction15
- Chapter Descriptions15
- Notational Conventions16
- Related Documents17
- Service Information17
Getting Started19
- Introduction19
- Unpacking Your Scanner20
- Setting Up the Scanner21
Scanning25
- Introduction25
- Beeper Definitions26
- LED Definitions27
- Scanning in Hand-Held Mode28
- Aiming29
- Decode Zone30
- Scanning in Hands-Free Mode31
  - Assembling the Stand31
  - Mounting the Stand (optional)32
- Scanning in Hands-Free Mode33
  - Scanning in the Hands-Free Mode33
Maintenance and Technical Specifications35
- Introduction35
- Maintenance35
- Troubleshooting36
- Technical Specifications38
- Scanner Signal Descriptions40
User Preferences43
- Introduction43
- Scanning Sequence Examples43
- Errors While Scanning44
- User Preferences Default Parameters44
- User Preferences45
- Power Mode48
  - Laser On Time49
  - Beep After Good Decode50
- Timeout Between Decodes51
Keyboard Wedge Interface53
- Introduction53
- Connecting a Keyboard Wedge Interface54
- Keyboard Wedge Default Parameters55
- Keyboard Wedge Host Types56
- ASCII Character Set68
RS-232 Interface79
- Introduction79
- Connecting an RS-232 Interface80
- RS-232 Default Parameters81
- RS-232 Host Parameters82
- ASCII Character Set100
USB Interface105
- Introduction105
- Connecting a USB Interface105
- USB Default Parameters107
- USB Host Parameters108
- ASCII Character Set119
IBM 468X/469X Interface131
- Introduction131
- Connecting to an IBM 468X/469X Host132
- IBM Default Parameters133
- IBM 468X/469X Host Parameters134
  - Port Address134
  - Convert Unknown to Code 39135
Wand Emulation Interface137
- Introduction137
- Connecting Using Wand Emulation138
- Wand Emulation Default Parameters139
- Wand Emulation Host Parameters140
Undecoded Scanner Emulation Interface145
- Introduction145
- Connecting Using Undecoded Scanner Emulation146
- Undecoded Scanner Emulation Default Parameters147
- Undecoded Scanner Emulation Host148
- Undecoded Scanner Emulation Host Parameters149
123Scan2157
- Introduction157
- Communication with 123Scan2157
- 123Scan2 Requirements158
- Scanner SDK, Other Software Tools, and Videos158
Symbologies159
- Introduction159
- Scanning Sequence Examples159
- Errors While Scanning159
- Symbology Default Parameters160
- UPC/EAN163
  - Enable/Disable UPC-A/ UPC-E163
  - Enable/Disable UPC-E1164
  - Enable/Disable EAN-13/EAN-8165
  - Enable/Disable Bookland EAN166
  - Decode UPC/EAN/JAN Supplementals167
  - User-Programmable Supplementals170
  - UPC/EAN/JAN Supplemental Redundancy170
  - Transmit UPC-A/UPC-E/UPC-E1 Check Digit171
  - UPC-A Preamble172
  - UPC-E Preamble173
  - UPC-E1 Preamble174
  - Convert UPC-E to UPC-A175
  - Convert UPC-E1 to UPC-A176
  - EAN-8/JAN-8 Extend176
  - Bookland ISBN Format177
  - UPC/EAN Security Level178
  - UCC Coupon Extended Code179
- Code 128180
  - Enable/Disable Code 128180
  - Enable/Disable UCC/EAN-128180
  - Enable/Disable ISBT 128181
- Code 39182
  - Enable/Disable Code 39182
  - Enable/Disable Trioptic Code 39182
  - Convert Code 39 to Code 32183
  - Code 32 Prefix183
  - Set Lengths for Code 39184
  - Code 39 Check Digit Verification185
  - Transmit Code 39 Check Digit185
  - Code 39 Full ASCII Conversion186
  - Code 39 Buffering (Scan & Store)187
- Code 93190
  - Enable/Disable Code 93190
  - Set Lengths for Code 93191
- Code 11192
  - Code 11192
  - Set Lengths for Code 11193
  - Code 11 Check Digit Verification194
  - Transmit Code 11 Check Digits195
- Interleaved 2 of 5 (ITF)196
  - Enable/Disable Interleaved 2 of 5196
  - Set Lengths for Interleaved 2 of 5197
  - I 2 of 5 Check Digit Verification198
  - Transmit I 2 of 5 Check Digit199
  - Convert I 2 of 5 to EAN-13199
- Discrete 2 of 5 (DTF)200
  - Enable/Disable Discrete 2 of 5200
  - Set Lengths for Discrete 2 of 5201
- Chinese 2 of 5202
  - Enable/Disable Chinese 2 of 5202
- Codabar (NW - 7)203
  - Enable/Disable Codabar203
  - Set Lengths for Codabar204
  - CLSI Editing205
  - NOTIS Editing205
- MSI206
  - Enable/Disable MSI206
  - Set Lengths for MSI207
  - MSI Check Digits208
  - Transmit MSI Check Digit(s)208
  - MSI Check Digit Algorithm209
- GS1 DataBar (Formerly RSS, Reduced Space Symbology)210
  - GS1 DataBar210
  - Convert GS1 DataBar to UPC/EAN211
- Redundancy Level212
  - Redundancy Level 1212
  - Redundancy Level 2212
  - Redundancy Level 3213
  - Redundancy Level 4213
- Security Level214
  - Security Level 0214
  - Security Level 1214
  - Security Level 2214
  - Security Level 3215
  - Bi-directional Redundancy216
  - Intercharacter Gap Size216
- Report Version217
- Report MIMIC Version217
- Report Synapse Cable217
Miscellaneous Scanner Options219
- Introduction219
- Scanning Sequence Examples220
- Errors While Scanning220
- Miscellaneous Default Parameters220
- Miscellaneous Scanner Parameters221
Advanced Data Formatting227
- Introduction227
- Rules: Criteria Linked to Actions227
- Using ADF Bar Codes228
- ADF Bar Code Menu Example228
- Special Commands232
- Criteria235
- Actions246
- Alphanumeric Keyboard299
Standard Default Parameters309
Programming Reference317
- Symbol Code Identifiers317
- AIM Code Identifiers318
Sample Bar Codes321
- Code 39321
- UPC/EAN321
  - UPC-A, 100 %321
  - EAN-13, 100 %322
- Code 128322
- Interleaved 2 of 5322
- GS1 DataBar-14322
Numeric Bar Codes323
- Numeric Bar Codes323
- Cancel325
Tell Us What You Think...331
