Zebra LS2208 Reference Guide

RS-232 Interface 6 - 15

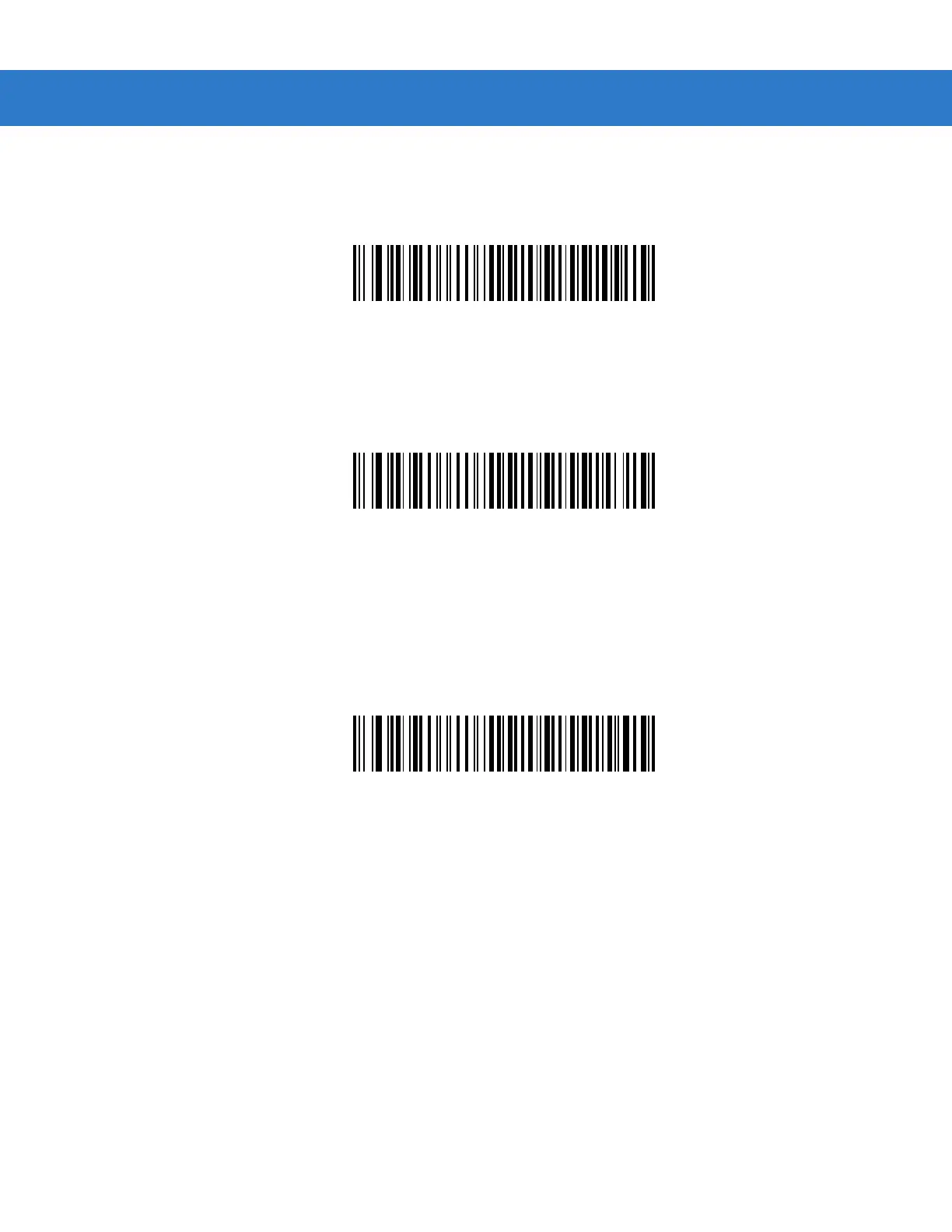

RTS/CTS Option 1
If you select RTS/CTS Option 1, the scanner asserts RTS before transmitting and ignores the state of CTS. The
scanner de-asserts RTS when the transmission completes.
RTS/CTS Option 1
RTS/CTS Option 2
If you select Option 2, RTS is always high or low (user-programmed logic level). However, the scanner waits for
CTS to be asserted before transmitting data. If CTS is not asserted within Host Serial Response Time-out (default),
the scanner issues an error indication and discards the data.
RTS/CTS Option 2
RTS/CTS Option 3
If you select Option 3, the scanner asserts RTS prior to any data transmission, regardless of the state of CTS. The
scanner waits up to Host Serial Response Time-out (default) for CTS to be asserted. If CTS is not asserted during
this time, the scanner issues an error indication and discards the data. The scanner de-asserts RTS when
transmission is complete.
RTS/CTS Option 3

Zebra LS2208 Specifications

General

Scan Technology	Laser
Connectivity	Wired
Scan Pattern	Single line
Drop Specification	Withstands multiple 5 ft./1.5 m drops to concrete
Scanner Type	Handheld
Scan Rate	100 scans per second
Humidity	5% to 95% (non-condensing)
Interface Options	USB, RS-232, Keyboard Wedge
Decode Capability	1D barcodes
Dimensions	15.2 cm H x 6.3 cm W x 8.4 cm D
Weight	146 g
Operating Temperature	0°C to 50°C
Resolution	5 mil
Supported Barcodes	UPC/EAN, Code 39, Code 128, GS1 DataBar
Storage Temperature	-40°C to 70°C
