OPERATION
Axiovert 200 Illumination and contrasting techniques Carl Zeiss
B 40-080 e 03/01 3-41
1 N HBO 103 fluorescence illuminator
2 Iris stop slider (aperture diaphragm)
3 Iris stop slider (luminous-field diaphragm)
4Nosepiece
5 Reflector turret
6 FL on / off key

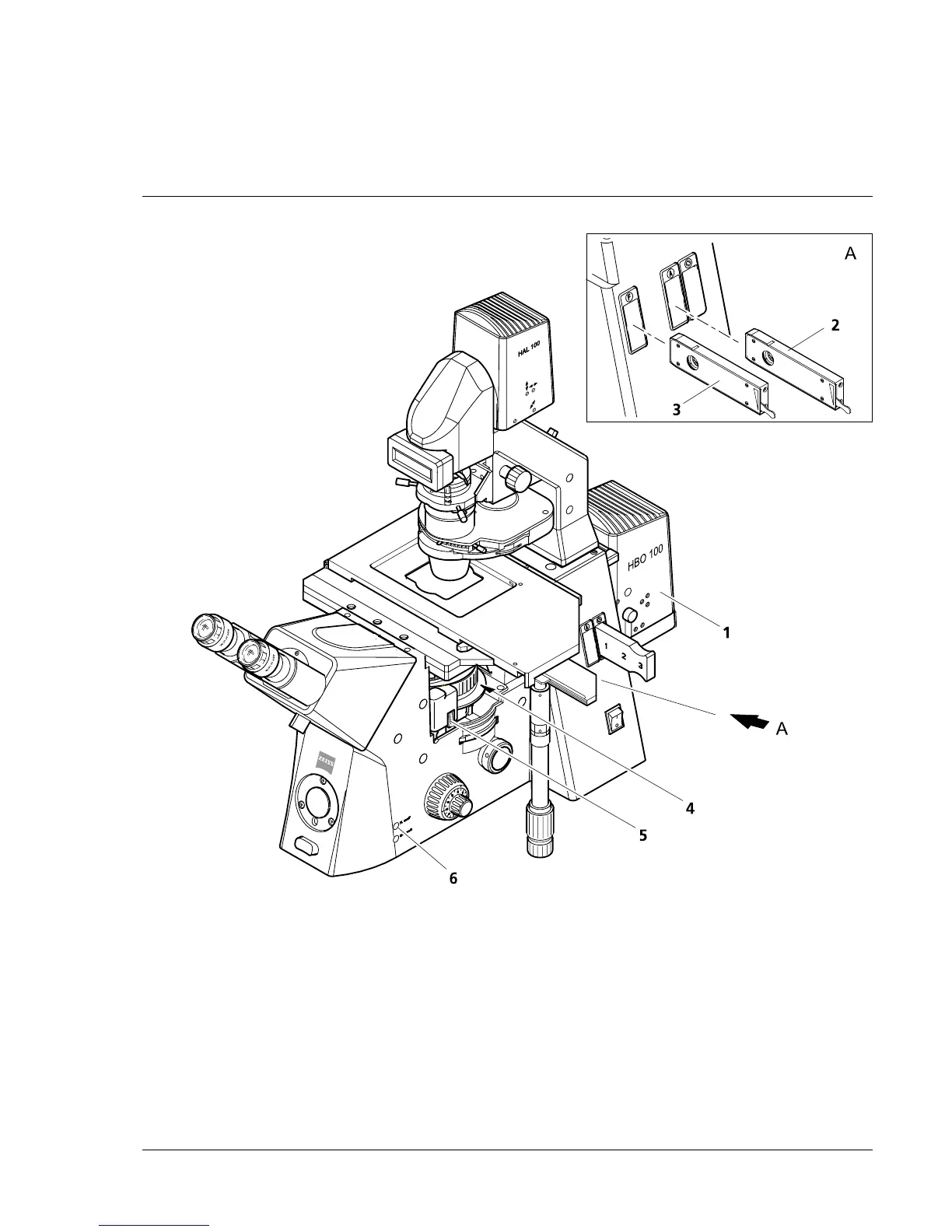

Fig. 3-24 Components for epi-fluorescence on the Axiovert 200
