OPERATION
Axiovert 200 Illumination and contrasting techniques Carl Zeiss
B 40-080 e 03/01 3-37

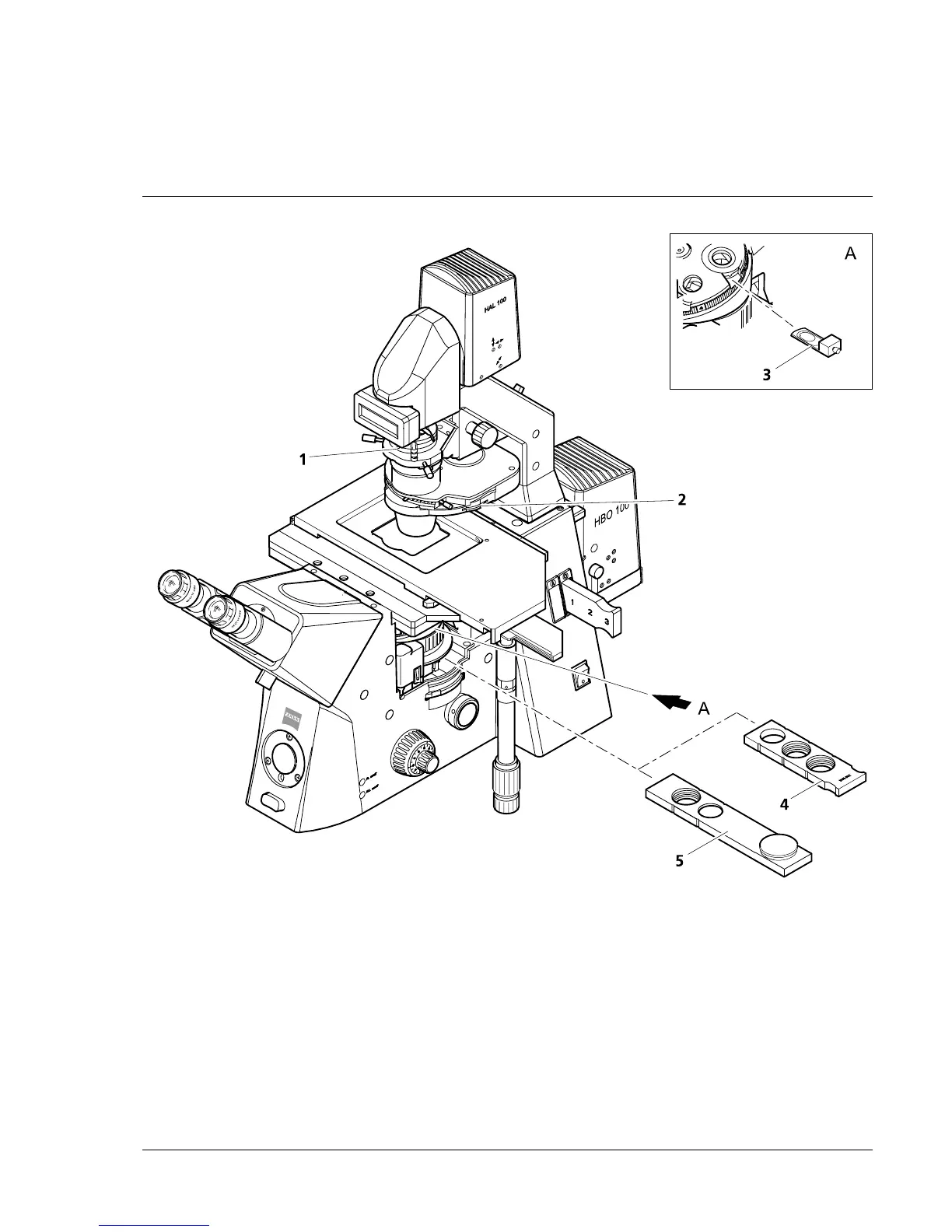

1 Polarizer D (fixed, optional: rotary)
2 Condenser
3 DIC slider
4 Analyzer slider, fixed
5 Analyzer slider ±30°
Fig. 3-20 Components for the transmitted-light DIC technique on the Axiovert 200
