CONNECTIONS FOR YOUR
TV
(CONTINUED)

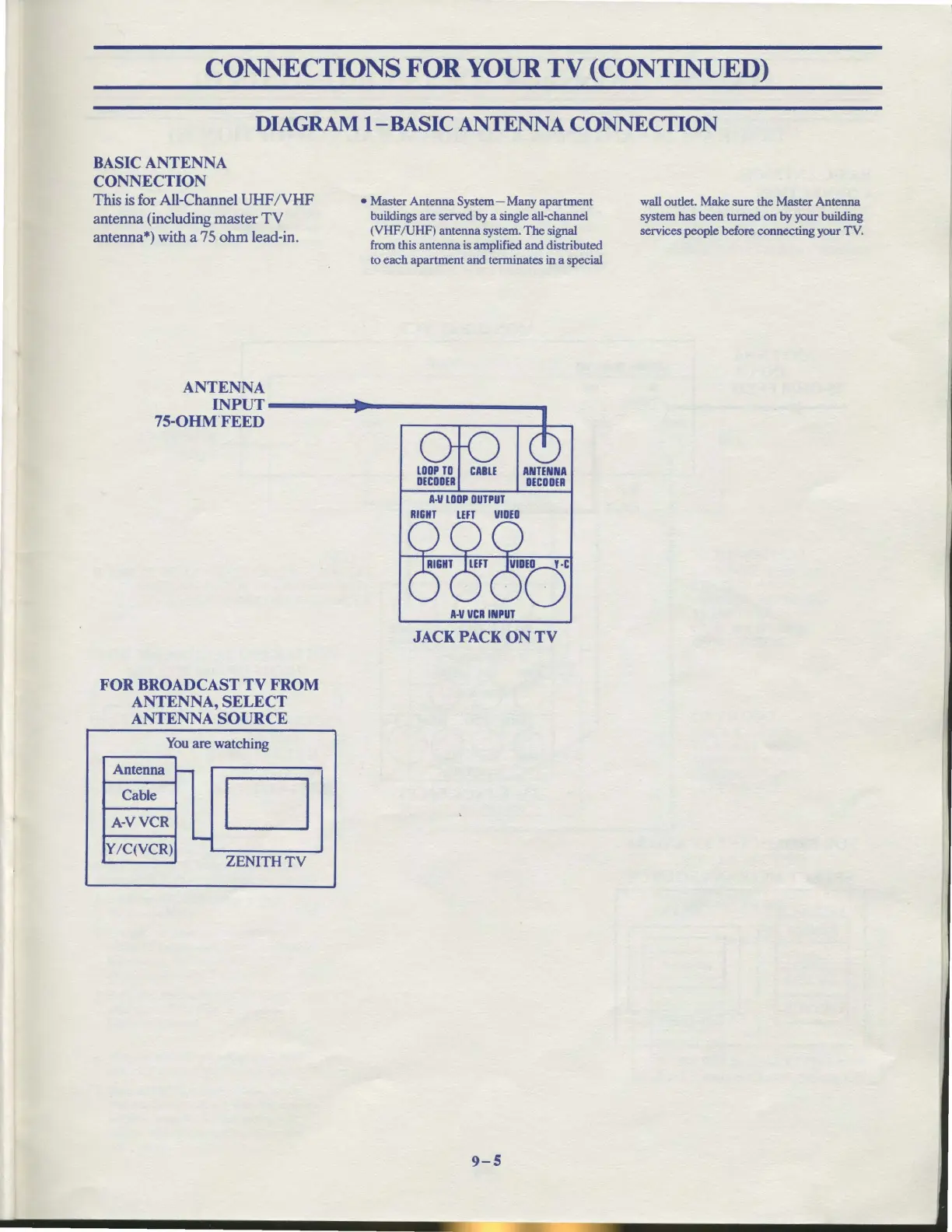

DIAGRAM
1-BASIC
ANTENNA CONNECTION
BASIC ANTENNA
CONNECTION
This is for All-Channel
UHF
/VHF
antenna (including master
TV
antenna*) with a 75
ohm
lead-in.
ANTENNA
• Master Antenna
System-
Many apartment
buildings are served by a single all-channel
(VHF
/UHF)
antenna system.
The
signal
from this antenna is amplified and distributed
to
each
apartment and terminates in a special
INPUT----t~-------
75-OHM'FEED
FOR BROADCAST
TV
FROM
ANTENNA, SELECT
ANTENNA
SOURCE
You
are watching
Antenna
-
Cable
D
A-VVCR
-
Y/C(VCR)
ZENITH
TV
A-V
LOOP
OUTPUT
RIGHT
LEFT
VIOfD
A-V
VCR
INPUT
JACK PACK
ON
TV
9-5
wall outlet. Make sure the Master Antenna
system has been turned
on
by your building
services people before connecting your TV.
To Next Page
