CONNECTIONS FOR YOUR
TV
(CONTINUED)

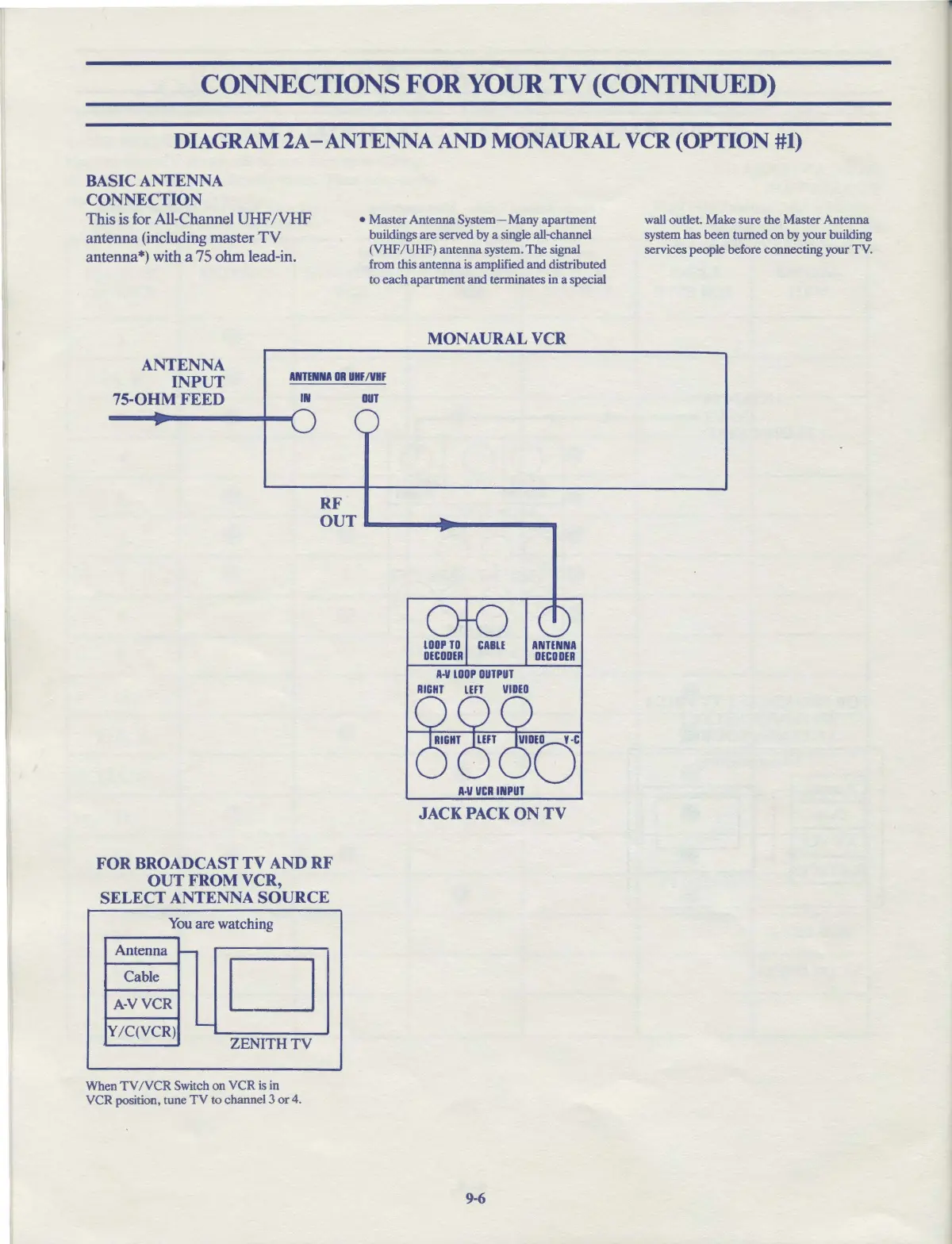

DIAGRAM
2A-ANTENNA
AND
MONAURAL VCR (OPTION #1)
BASIC ANTENNA
CONNECTION
This is for All-Channel
UHF
/VHF
antenna (including master
TV
antenna*) with a 75
ohm
lead-in.
• Master Antenna System - Many
apartment
buildings are served by a single all-channel
(VHF/UHF)
antenna system.
The
signal
from this antenna is amplified and distributed
to
each
apartment
and terminates in a special
MONAURAL VCR
ANTENNA
INPUT
75-OHMFEED
ANTINNA
OR
UHF
/VHF
IN
OUT
RF
OUT._
________
~
FOR BROADCAST
TV
AND
RF
OUT
FROM VCR,
SELECT ANTENNA
SOURCE
You
are watching
Antenna
-
Cable
D
A-VVCR
Y/C(VCR)
-
ZENITH
TV
When
TV
/VCR
Switch
on
VCR
is in
VCR position, tune
TV
to
channel 3
or
4.
A•V
LOOP
OUTPUT
RIGHT
UFJ
VIDEO
A•V
VCR
INPUT
JACK
PACK
ON
TV
9-6
wall outlet. Make sure
the
Master Antenna
system has
been
turned
on
by your building
services people before connecting your TV.
