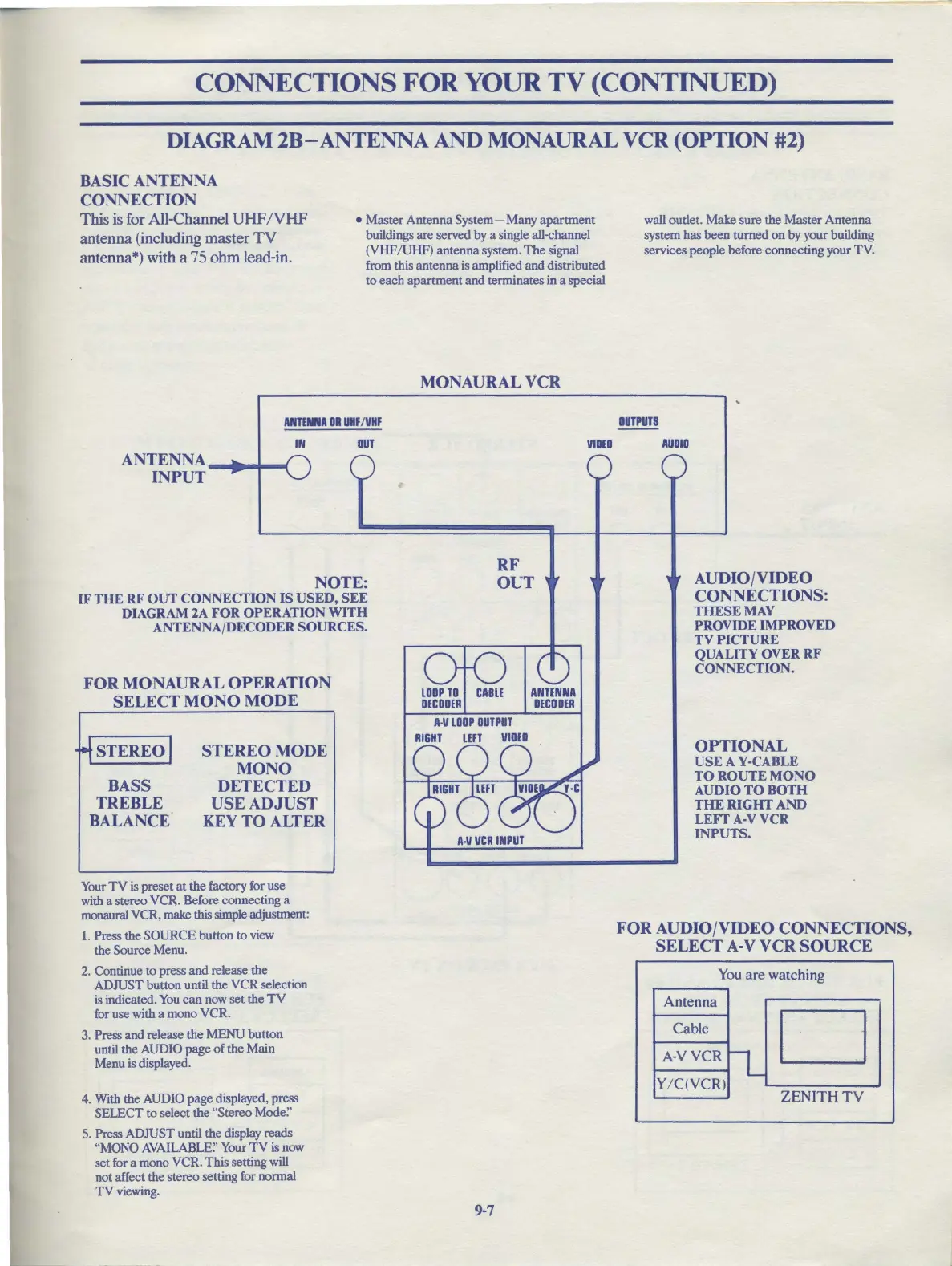

CONNECTIONS FOR YOUR
TV
(CONTINUED)
DIAGRAM
2B-ANTENNA
AND
MONAURAL VCR (OPTION #2)
BASIC ANTENNA
CONNECTION
This is for All-Channel
UHF
/VHF
antenna (including master
TV
antenna*) with a 75
ohm
lead-in.
•
Master
Antenna
System-
Many
apartment
buildings
are
served
by
a single all-channel
(VHF/UHF)
antenna
system.
The
signal
from this
antenna
is amplified
and
distributed
to
each
apartment
and
terminates
in a special
MONAURAL VCR
ANTENNA
DR
UHF/VHF
IN
OUT
ANTENNA_..,.....,-!"
INPUT
NOTE:
IF
THE
RF OUT CONNECTION IS USED, SEE
DIAGRAM
2A
FOR OPERATION
WITH
ANTENNA/DECODER SOURCES.
FOR
MONAURAL OPERATION
SELECT
MONO
MODE
STEREO
BASS
TREBLE
BALANCE.
STEREO
MODE
MONO
DETECTED
USE ADJUST
KEY
TO
ALTER
Your
TV
is preset
at
the
factory for
use
with a stereo
VCR.
Before connecting a
monaural VCR, make this simple adjustment:
1.
Press
the
SOURCE
button
to view
the
Source
Menu.
2. Continue
to
press
and
release
the
ADJUST
button
until
the
VCR
selection
is indicated.
You
can
now
set
the
TV
for use with a
mono
VCR.
3. Press
and
release
the
MENU
button
until the AUDIO
page
of
the
Main
Menu is displayed.
4. With the AUDIO
page
displayed, press
SELECT
to
select
the
"Stereo Mode:'
5. Press
ADJUST
until
the
display reads
"MONO AVAILABLE:' Your
TV
is now
set for a
mono
VCR.
This
setting will
not affect
the
stereo setting for normal
TV
viewing.
RF
OUT
A·V
LOOP
OUTPUT
RIGHT
UFJ
VIDEO
9-7
VIDEO
wall outlet.
Make
sure
the
Master
Antenna
system has
been
turned
on
by
your building
services
people
before
connecting
your
TV.
OUTPUTS
AUDIO
AUDIO/VIDEO
CONNECTIONS:
THESE
MAY
PROVIDE IMPROVED
TV
QUALITY OVER RF
CONNECTION.
OPTIONAL
USE A Y-CABLE
TO
ROUTE
MONO
AUDIO
TO
BOTH
THE
RIGHT
AND
LEFT
A-VVCR
INPUTS.
FOR AUDIO/VIDEO CONNECTIONS,
SELECT
A-V
VCR SOURCE
You
are watching
Antenna
Cable
D
A-VVCR
rL
Y/C(VCR)
ZENITH
V
T
