CONNECTIONS FOR YOUR TV (CONTINUED)

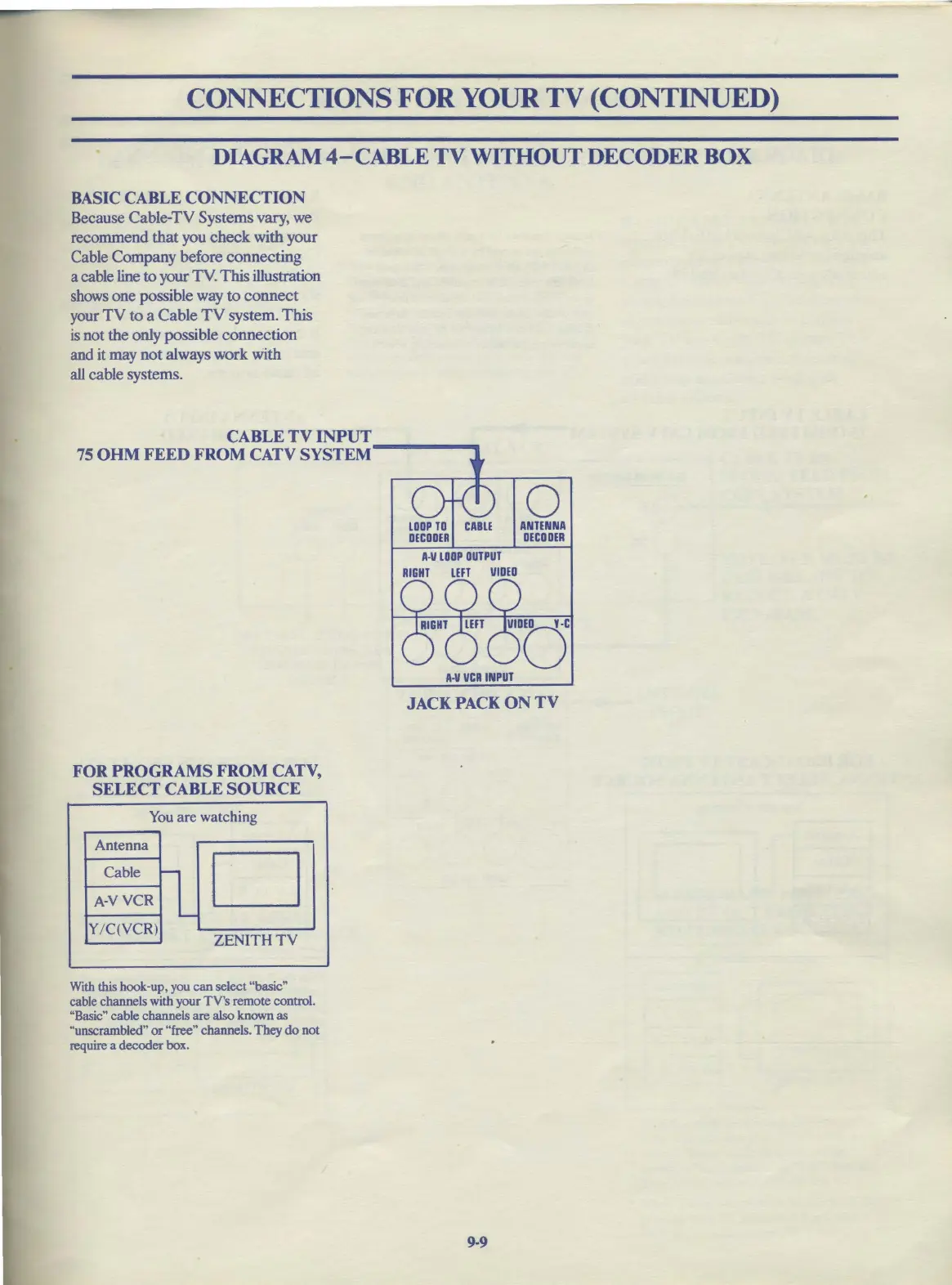

DIAGRAM 4-CABLE TV WITHOUT DECODER BOX
BASIC CABLE CONNECTION
Because Cable-TV Systems vary, we
recommend that you check with your
Cable Company before connecting
a cable line to your TV. This illustration
shows one possible way to connect
your TV to a Cable TV system. This
is not the only possible connection
and it may not always work with
all cable systems.
CABLE TV INPUT
75 OHM FEED FROM CATV SYSTEM---- ..
FOR PROGRAMS FROM CATV,
SELECT CABLE SOURCE
You are watching
Antenna
Cable
l
D
A-VVCR
Y/C(VCR)
ZENITH TV
With this hook-up, you can select "basic"
cable channels with your TV's remote control.
"Basic" cable channels are also known as
"unscrambled" or "free" channels. They do not
require a decoder box.
A•V LOOP OUTPUT
RIGHT LEFT 1/IDED
A•V I/CR INPUT
0
ANTENNA
DECODER
JACK PACK ON TV
9-9
