CONNECTIONS FOR YOUR TV (CONTINUED)
BASIC CABLE CONNECTION
Because Cable-TV Systems vary, we
recommend that you check with your
Cable Company before connecting
a cable line to your TV. This illustration
shows one possible way to _ connect
your TV to a Cable TV system. This
is not the only possible connection
and it may not always work with
all cable systems.

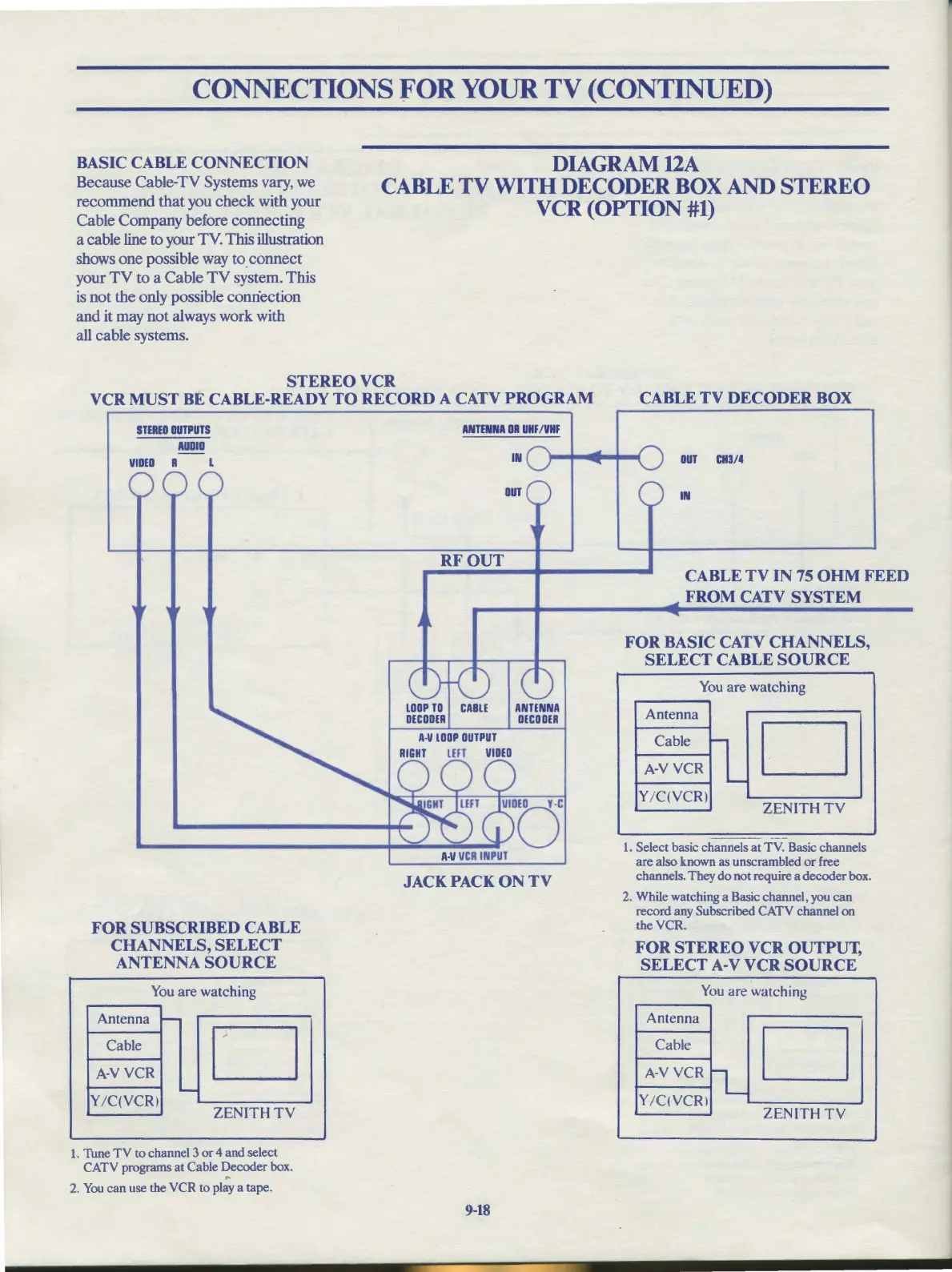

DIAGRAM12A
CABLE TV WITH DECODER BOX AND STEREO
VCR (OPTION #1)
STEREO VCR
VCR MUST BE CABLE-READY TO RECORD A CATV PROGRAM
STEREO OUTPUTS
AUDIO
VIDEO R l
FOR SUBSCRIBED CABLE
CHANNELS, SELECT
ANTENNA SOURCE
You are watching
Antenna
-
Cable
D
A-VVCR
-
Y/ C(VCR)
ZENITH TV
1. Tune TV to channel 3 or 4 and select
CATV programs at Cable ~ecoder box.
2. You can use the VCR to play a tape.
ANTENNA DR UHF /VHF
IN
OUT
RFOUT
JACK PACK ON TV
9-18
CABLE TV DECODER BOX
OUT CH3/4
IN
CABLE TV IN 75 OHM FEED
FROM CATV SYSTEM
FOR BASIC CATV CHANNELS,
SELECT CABLE SOURCE
You are watching
Antenna
Cable
1
D
A-VVCR
Y/ C(VCR)
ZENITH TV
1. Select basic channels at TV . Basic channels
are also known as unscrambled or free
channels. They do not require a decoder box.
2. While watching a Basic channel, you can
record any Subscribed CATV channel on
the VCR.
FOR STEREO VCR OUTPUT,
SELECT A-V VCR SOURCE
You are watching
Antenna
Cable
D
A-V VCR
rL_
Y/CtVCRl
ZENlTHTV
