CONNECTIONS FOR YOUR
TV
(CONTINUED)
BASIC CABLE CONNECTION
Because Cable-TV Systems vary, we
recommend
that
you check with your
Cable Company before connecting
a cable line to your TV. This illustration
shows one possible way
to
connect
your
TV
to
a Cable
TV
system.
This
is not the only possible connection
and
it may
not
always work with
all cable systems.

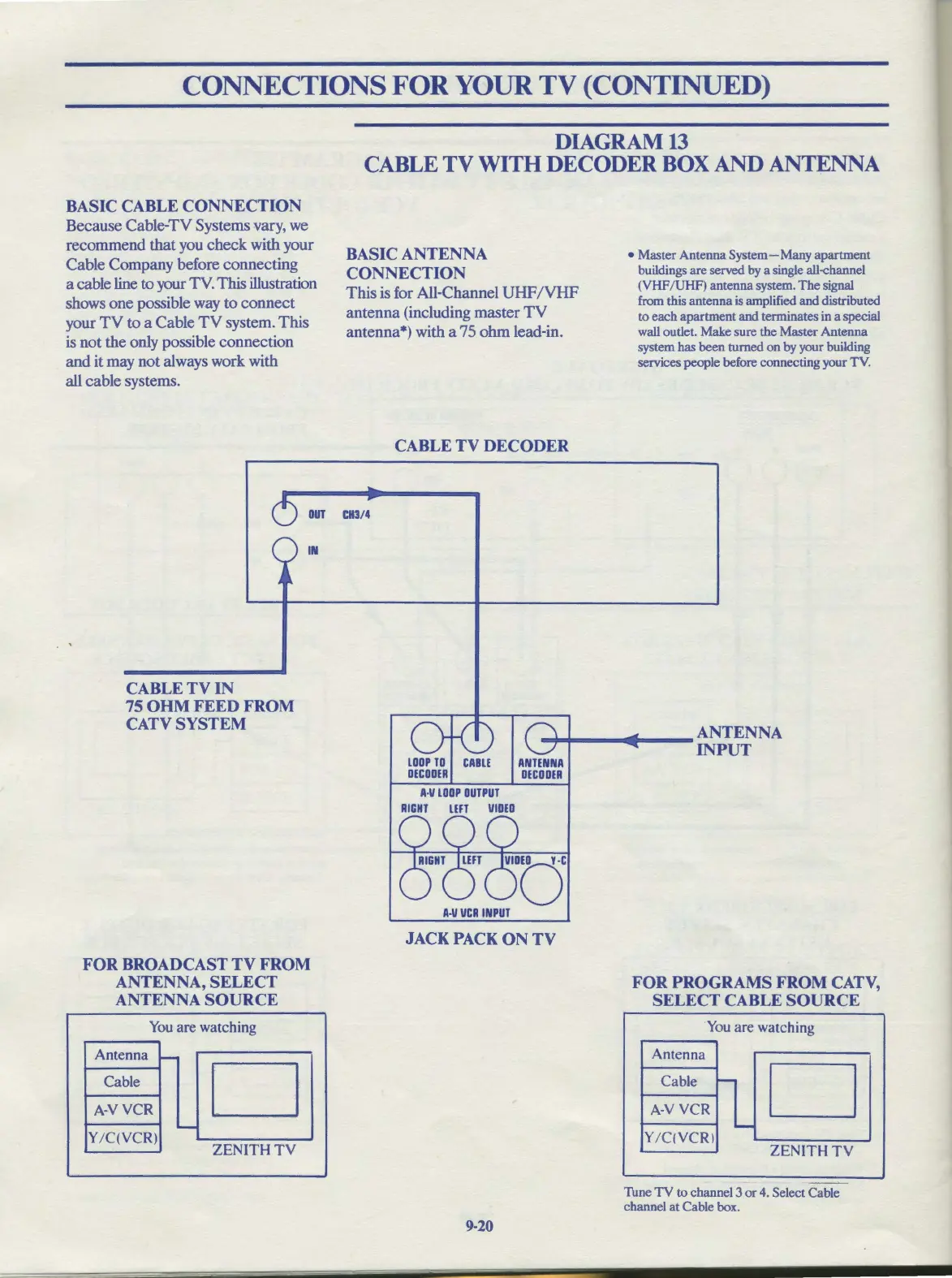

DIAGRAM13
CABLE
TV
WITH
DECODER
BOX
AND
ANTENNA
BASIC
ANTENNA
CONNECTION
This
is
for All-Channel
UHF
/VHF
antenna (including master
TV
antenna*) with a 75
ohm
lead-in.
CABLE
TV
DECODER
• Master Antenna
System-
Many apartment
buildings are served by a single all-channel
(VHF/UHF) antenna system.
The
signal
from this antenna
is
amplified and distributed
to each apartment and terminates in a special
wall outlet. Make sure the Master Antenna
system has
been
turned
on
by
your building
services people before connecting your TV.
OUT
CN3/4
CABLE
TV
IN
75
OHM
FEED FROM
CATV SYSTEM
IN
FOR BROADCAST
TV
FROM
ANTENNA, SELECT
ANTENNA
SOURCE
You
are watching
Antenna
-
Cable
D
A-VVCR
---
Y/C(VCR)
ZENITH
TV
A•V
LOOP
OUTPUT
RIGHT
LEFT
VIDEO
A·V
VCR
INPUT
JACK PACK
ON
TV
9-20
FOR PROGRAMS FROM CATV,
SELECT CABLE
SOURCE
You are watching
Antenna
Cable
-
D
A-V
VCR
-
Y/CIVCRl
ZENITH
TV
Tune
TV
to channel 3
or
4. Select Cable
channel
at
Cable box.
