CONNECTIONS
FOR
YOUR
TV
(CONTINUED)
BASIC CABLE CONNECTION
Because Cable-TV Systems vary, we
recommend
that
you
check
with your
Cable Company before connecting
a cable line to your TV. This illustration
shows one possible way
to
connect
your
TV
to
a Cable
TV
system. This
is not the only possible connection
and it may not always work with
all cable systems.

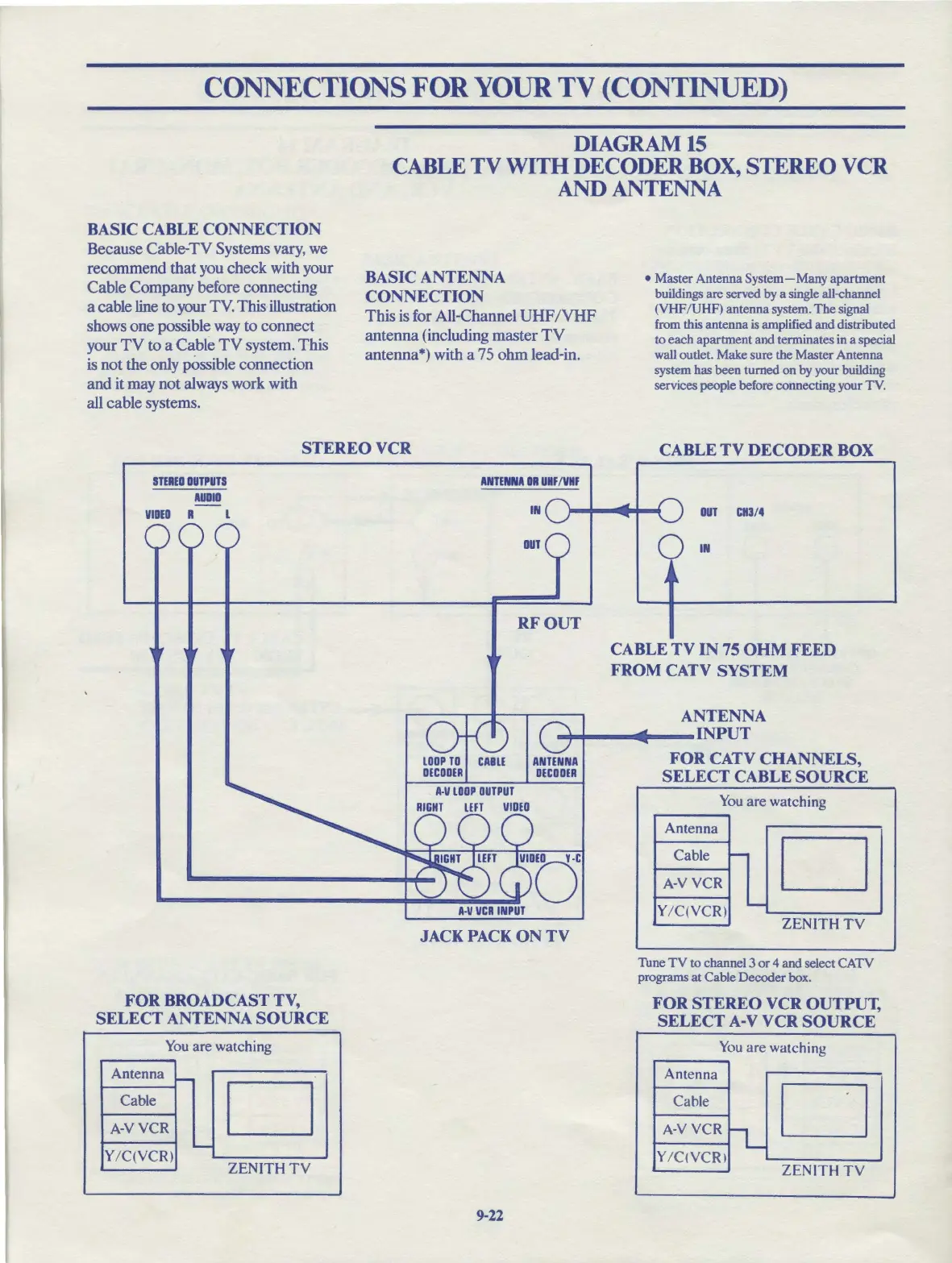

DIAGRAM15
CABLE
TV
WITH DECODER BOX, STEREO VCR
ANDANTENNA
BASIC ANTENNA
CONNECTION
This
is for All-Channel
UHF
/VHF
antenna (including master
TV
antenna•) with a 75
ohm
lead-in.
•
Master
Antenna
System-
Many
apartment
buildings
are
served by a single all-channel
(VHF/UHF)
antenna
system.
The
signal
from this
antenna
is amplified
and
distributed
to
each
apartment
and
terminates in a special
wall outlet.
Make
sure the
Master
Antenna
system has
been
turned
on
by your building
services people before connecting your TV.
STEREO VCR
CABLE
TV
DECODER BOX
STEREO
OUTPUTS
1111D1D
VIDEO
R
FOR BROADCAST TV,
SELECT ANTENNA SOURCE
You
are watching
Antenna
....._
Cable
D
A-VVCR
..._
Y/C(VCR)
ZENITH
TV
ANTENNA
DR
UHF
/VHF
IN
OUT
RFOUT
OUT
CH3/4
IN
CABLE TV
IN
75 OHM FEED
FROM CATV SYSTEM
ANTENNA
...,...,._..,.i,.....-INPUT
JACK
PACK
ON
TV
9-22
FOR CATV CHANNELS,
SELECT CABLE
SOURCE
You
are watching
Antenna
Cable
A-VVCR
Y/ C(VCR)
D
ZENITH
TV
Tune
TV
to
channel 3
or
4 and select
CATV
programs
at
Cable
Decoder
box.
FOR STEREO VCR OUTPUT,
SELECT A-V VCR
SOURCE
You
are watching
Antenna
Cable
D
A-V
VCR
rL
Y/C(VCRl
ZENI H
T T
V
