Zenith L30W36 - Connection Panel Overview

9
Safety Instructions
Monitor Overview
Connections
Basic Operation
Sleep Timer
Picture & Sound
Special Features
Misc.
YPB PR
R
L
MONO
AUDIO
VIDEO
S-VIDEO
AV INPUT
COMPONENT
(DVD/DTV INPUT)
AC INPUT
R
L
AUDIO
RGB 2 INPUT
(DIGITAL RGB INPUT)
RGB 1 INPUT
(PC/DTV INPUT)
RS 232C INPUT
(CONTROL/SERVICE)
DC OUTPUT
(DC 12V)
( )
( )
( )
( )
R
L
Ω
EXTERNAL SPEAKER(6 )
Back Panel

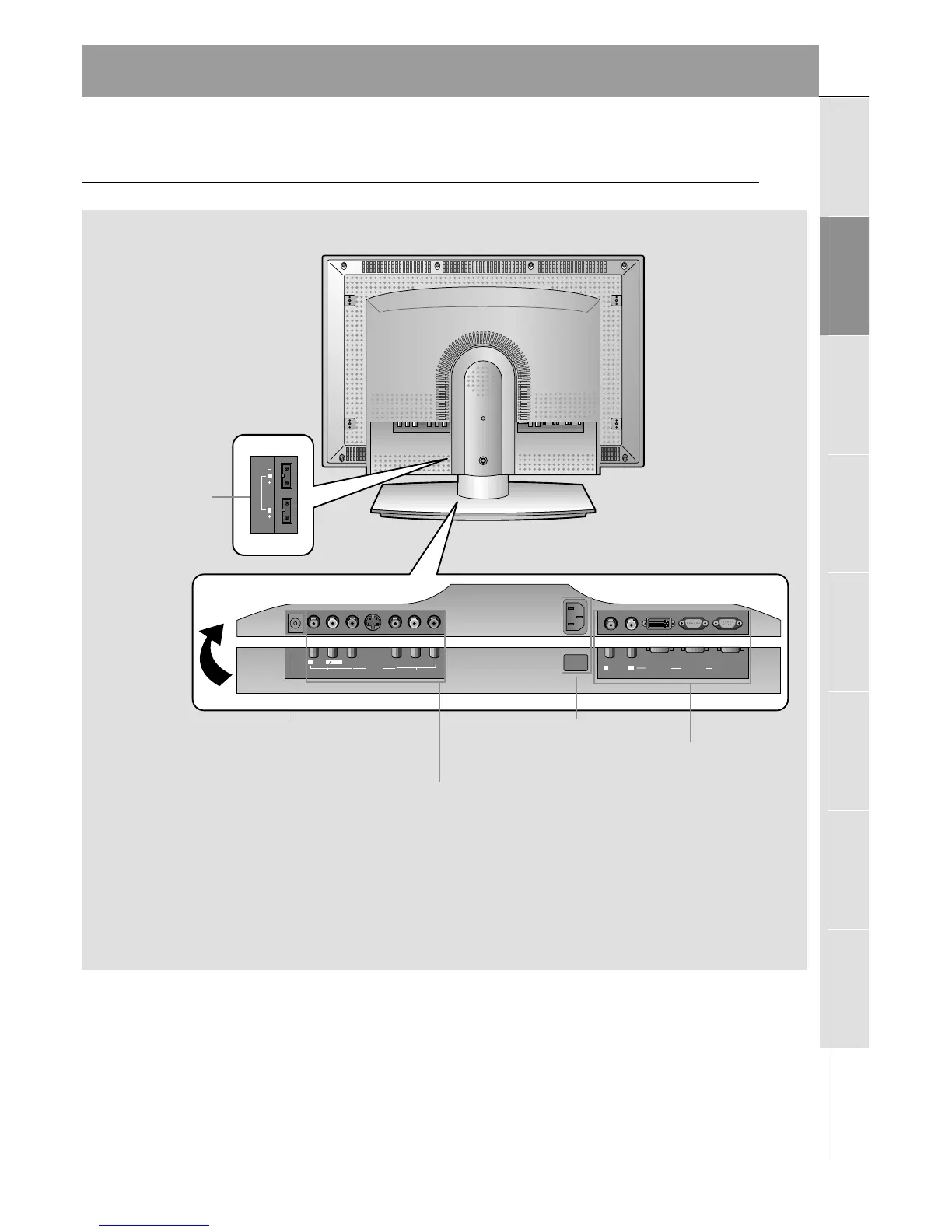

Connection Panel Overview
A/V Input / COMPONENT
(DVD/DTV) INPUT jacks /
S-video
(R)-(L) Audio sound input jacks
RGB-1 (PC/DTV INPUT) port
RGB-2 (DIGITAL RGB INPUT) port
- RGB-2 Input (Digital RGB port):
Supports DVI-D signal.
RS-232C jacks
AC INPUT jack
DC OUTPUT (DC 12V) jack
For R-L speaker
connections
