30-12 Motor
Motor and Drive System
30

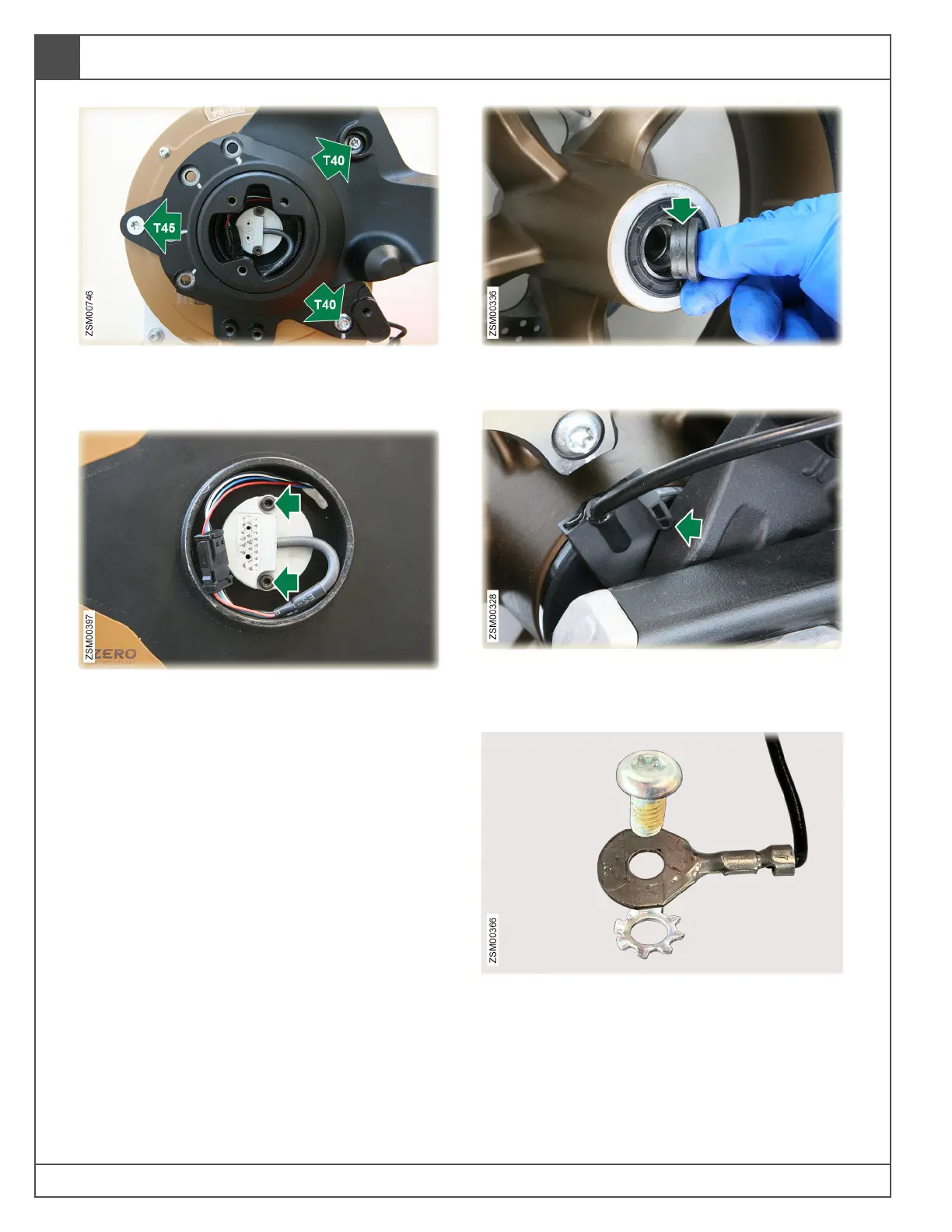

78. Remove bolts (x3) securing right doubler plate
to the motor. Tool: T40. Torque: 25 lb-ft
(34 Nm). Tool: T45. Torque: 26 lb-ft (35 Nm).
79. Remove bolts (x2) securing encoder to the
motor. Tool: 3mm hex wrench. Torque:
2.5 lb-ft (3 Nm).
80. Remove encoder from the motor.
Installation
1. Installation is the reverse of the removal
procedure, but take note of the following
installation steps.
2. Remove plastic bushing from left side
(sprocket side) of the wheel.
3. When installing the WSS sensor, make sure
the alignment tab is positioned against the top
edge of the rear brake bracket as shown.
4. The order of shock ground wire fasteners:
bolt, wire eyelet, and steel star washer.
