Motor and Drive System
Motor 30-11
30

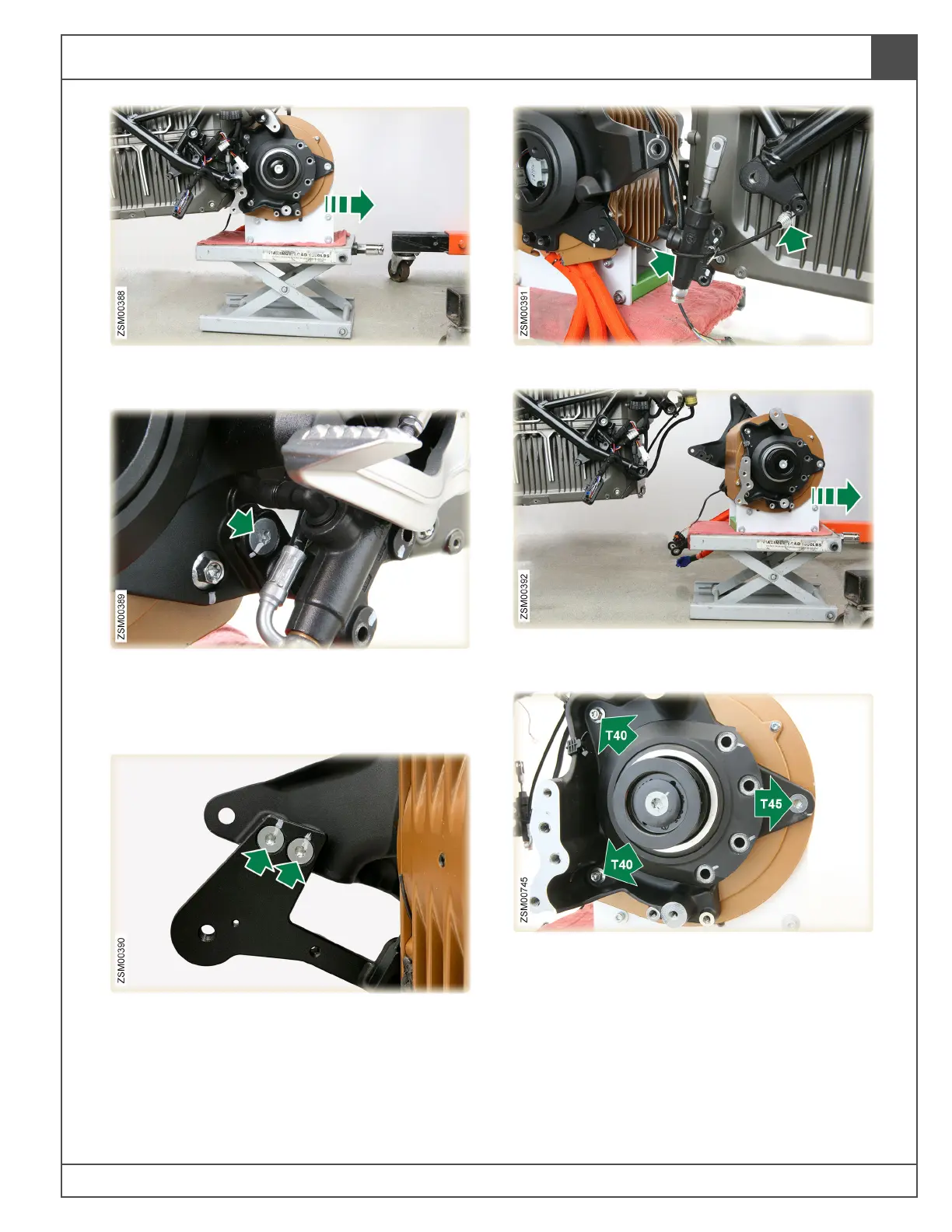

71. Move motor toward rear, far enough to gain
access to the rear brake bracket bolts.
72. Remove outer countersunk bolt securing the
rear master cylinder bracket to the right
doubler plate. Tool: T40. Torque: 19 lb-ft
(26 Nm).
73. Remove inner countersunk bolts (x2) securing
the rear master cylinder bracket to the right
doubler plate. Tool: T40. Torque: 19 lb-ft
(26 Nm).
74. Remove rear brake pedal assembly.
75. Tie up rear master cylinder.
76. Move motor assembly towards rear and away
from the motorcycle.
77. Remove bolts (x3) securing left doubler plate
to the motor. Tool: T40. Torque: 25 lb-ft
(34 Nm). Tool: T45. Torque: 26 lb-ft (35 Nm).
