30-10 Motor
Motor and Drive System
30

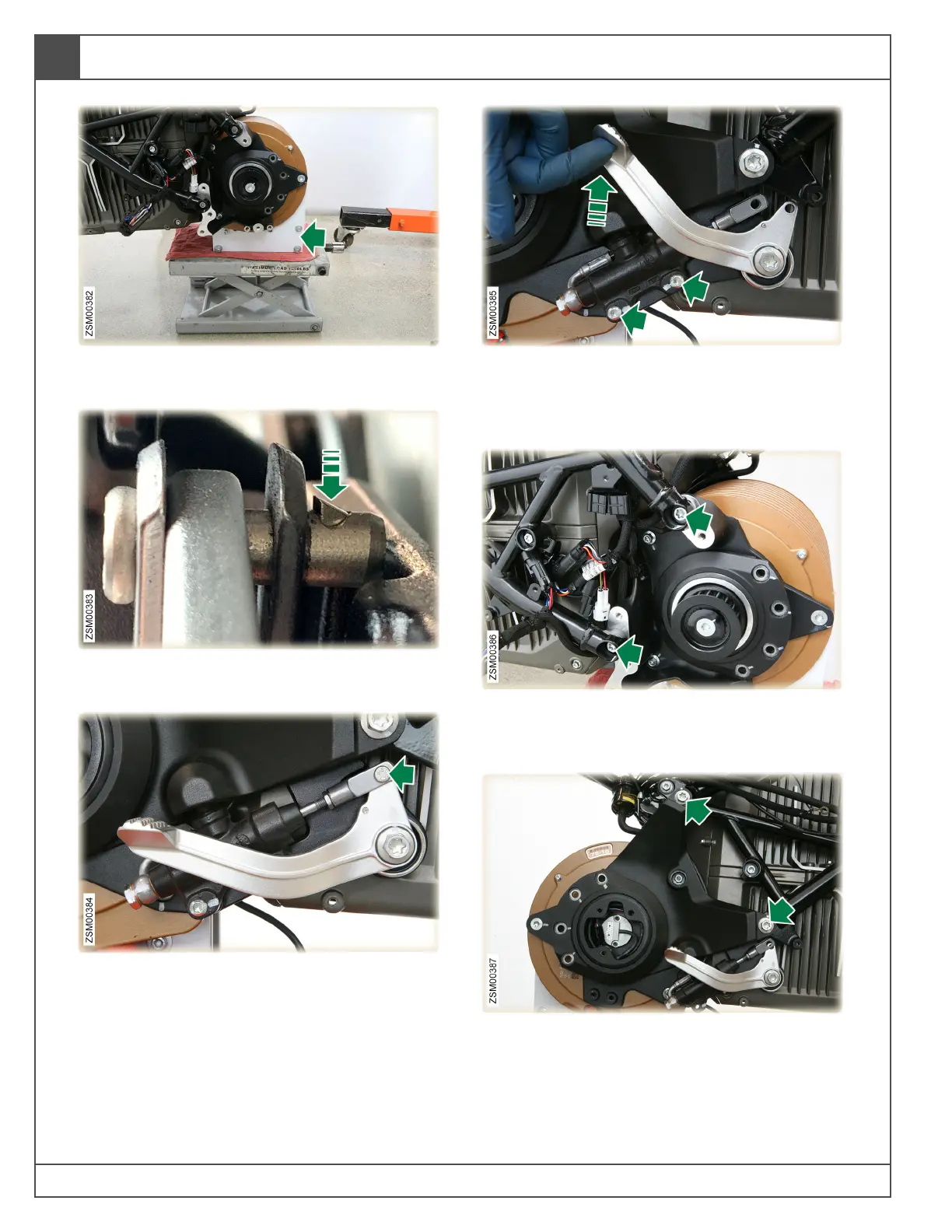

65. Support motor to keep it from rolling off the
scissor jack.
66. Depress locking pin to release rear master
cylinder engagement pin.
67. Remove rear master cylinder engagement pin
(while depressing locking pin).
68. Raise brake pedal to access bolts. Remove
bolts (x2) securing rear master cylinder to
master cylinder bracket. Tool: T30. Torque:
7lb-ft (9 Nm).
69. Remove bolts (x2) securing left doubler plate
to the motorcycle frame. Tool: T50. Torque:
30 lb-ft (41 Nm).
70. Remove bolts (x2) securing right doubler plate
to the motorcycle frame. Tool: T50. Torque:
30 lb-ft (41 Nm).
