30-24 Throttle
Motor and Drive System
30

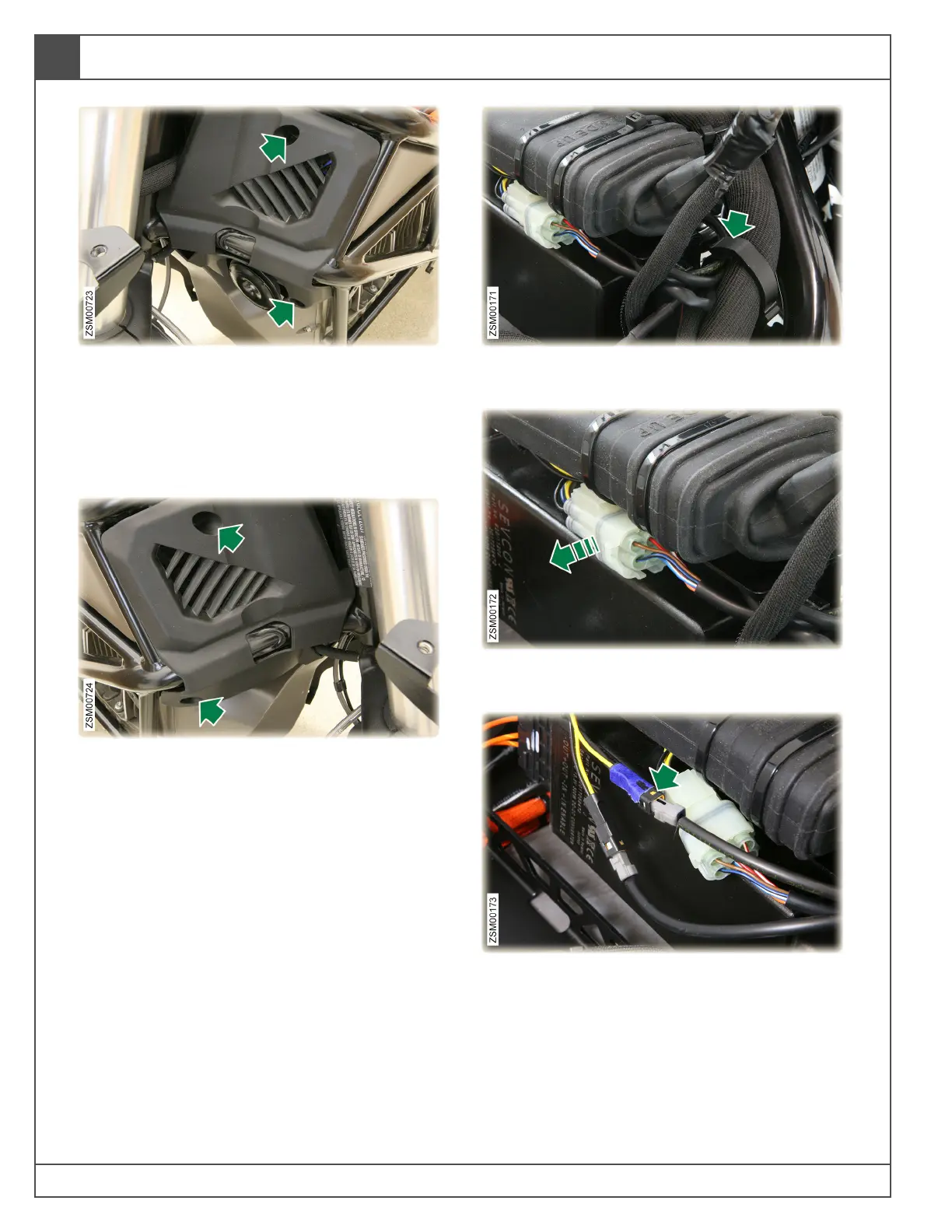

13. Remove bolts (x2) securing left side of front
closeout panel to frame. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
Note: Protect rear portion of front fender and
front closeout panel surfaces to reduce the
possibility of scratching their surfaces.
14. Remove bolts (x2) securing right side of front
closeout panel to frame. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
15. Remove front closeout panel.
Note: Position front suspension straight
forward to allow access for removing front
closeout panel downward in front of power
pack.
16. Unhook retaining clip to release tension on
harnesses.
17. Slide key switch harness connector out to gain
access to heated grip harness connectors.
18. Disconnect heated grip harness connector.
Note: Label/mark connector if you’re going to
disconnect both connectors.
